Home WDM, OTN & PON Mux Demux & OADM Custom Mux Demux & OADM FS 8 Channels DWDM Mux Demux with Monitor, Expansion, 1310nm Port, Dual Fiber & Hybrid Solution (Black)

FS 8 Channels DWDM Mux Demux with Monitor, Expansion, 1310nm Port, Dual Fiber & Hybrid Solution (Black)
Previous
  1. FS 8 Channels DWDM Mux Demux with Monitor, Expansion, 1310nm Port, Dual Fiber & Hybrid Solution (Black)
Next

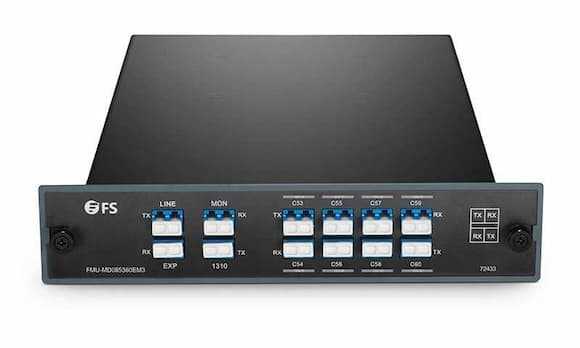

FS 8 Channels DWDM Mux Demux with Monitor, Expansion, 1310nm Port, Dual Fiber & Hybrid Solution (Black)

Brand:
FS

Specifications

   Product Overview:
  • This optical multiplexer offers passive transparent multiplexing for up to 8 channels with a 100GHz spacing to maximize fiber usage. It’s designed to improve the efficiency of existing fiber infrastructure by supporting various wavelengths in the C53-C60 range. Ideal for telecom providers and data centers looking to expand their network without the need for additional fiber, this solution also includes monitoring capabilities and expansion ports for future growth.
   Product Highlights:
  • ITU Grid Compliance: The solution supports 8 channels in the C53-C60 range, which aligns with the ITU grid, ensuring seamless compatibility with existing optical networking products.
  • Low Insertion Loss: Typical insertion loss of 3.0dB and a maximum of 3.3dB, providing high-efficiency signal transmission with minimal signal degradation.
  • 1310nm Port & Expansion Port: 1310nm port supports additional capacity and ensures system expansion without deploying more fiber. The expansion port allows for scaling the network’s wavelength channels.
  • Monitor Port: A 1% monitor port is available for monitoring the channel power levels, enabling effective network diagnostics and performance monitoring without impacting the primary signal.
  • Customizable Solution: The system can be customized based on specific network requirements, offering flexibility for various applications and use cases.
   Specifications:
  • Number of Channels: Supports 8 channels in the C53-C60 range, typically for use in C-band optical networks.
  • Channel Spacing: 100GHz (0.8nm), which allows for high-density wavelength division multiplexing (WDM) and efficient use of fiber bandwidth.
  • Channel Passband: The channel passband is ±0.11nm, ensuring minimal interference and high-quality signal transmission across each channel.
  • 1310nm Port Passband: The 1310nm port passband ranges from 1260nm~1360nm, providing additional wavelength support for system expansion.
  • Passband Ripple: The passband ripple is kept to =0.5dB, maintaining a stable and uniform channel response.
  • Technology: Uses TFF (Thin Film Filter) technology, which provides high-performance multiplexing with excellent channel isolation.
  • Return Loss: =45dB, reducing signal reflection and ensuring minimal back reflection to maintain signal integrity.
  • Directivity: =45dB, indicating the effectiveness of the device in ensuring accurate signal routing.
  • Polarization Dependent Loss (PDL): =0.3dB, ensuring minimal polarization-induced loss and maintaining high performance.
  • Polarization Mode Dispersion (PMD): =0.1ps, a very low value, indicating high system stability and minimal signal distortion due to polarization fluctuations.
  • Operating Temperature: -40 to 85°C (-40 to 185°F), suitable for deployment in harsh environments with extreme temperature variations.
  • Storage Temperature: -40 to 85°C (-40 to 185°F), ensuring safe storage under a wide temperature range.
  • Housing: The device is housed as an FMU plug-in module, which occupies 1 slot in the FMU chassis, making it easy to integrate into existing rack-mounted systems.
  • Power Handling: Supports up to 500mW of optical power, ensuring reliable performance under high-power conditions.
  • Dimensions: 1.73"x8.35"x10.04" (44x212x255mm), compact enough for easy installation in standard 19" racks.
   Ideal Uses:
  • Telecom Networks: Ideal for telecom operators looking to increase network capacity while minimizing the need for new fiber installation.
  • Data Centers: Perfect for data centers that need to manage multiple high-bandwidth channels efficiently over a shared fiber infrastructure.
  • Long-Haul & Metro Networks: This solution is well-suited for long-haul and metro networks where the need for high-capacity wavelength multiplexing is essential to ensure data throughput and low latency.
  • Network Expansion & Upgrades: The 1310nm and expansion ports are ideal for scaling existing optical networks without laying additional fiber, helping operators meet growing capacity demands.
  • Real-Time Monitoring & Troubleshooting: The monitor port facilitates real-time signal monitoring and network troubleshooting, making it an essential tool for network management.
   Why Choose This Product?
  • Efficient Use of Existing Fiber: This solution maximizes the use of existing fiber infrastructure by supporting up to 8 channels over a single fiber pair, making it an effective way to increase network capacity without additional fiber deployment.
  • Low Insertion Loss: The typical insertion loss of 3.0dB ensures minimal degradation of the optical signal, leading to better system performance and higher data throughput.
  • Flexible Expansion: The 1310nm port and expansion port offer flexibility for future upgrades and increased capacity without the need for more fiber.
  • High-Performance Technology: TFF (Thin Film Filter) technology ensures that the solution maintains excellent performance, with low passband ripple and high channel isolation.
  • Easy Monitoring and Troubleshooting: The 1% monitor port enables you to continuously monitor the channel power levels, simplifying network management and reducing downtime during troubleshooting.
  • Scalable and Customizable: The solution is highly customizable to fit specific network requirements and is easily scalable for future growth, making it a flexible choice for both current and future needs.

Features

Brand:
FS
Color:
Black
Conditions:
New
Warranty:
3 Years
