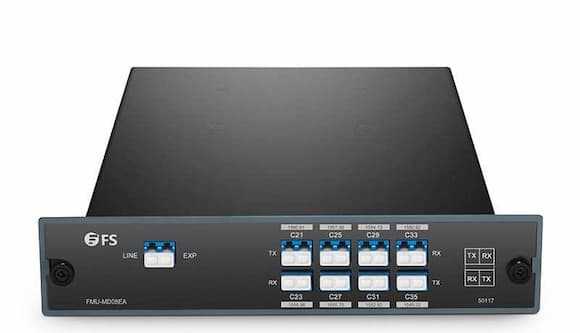

FS 8 Channels DWDM Mux Demux with Expansion Port, Single Fiber, Side-A, FMU Plug-in Module

FS 8 Channels DWDM Mux Demux with Expansion Port, Single Fiber, Side-A, FMU Plug-in Module

Brand:

FS

Specifications

Product Overview:

The FS 8-Channel DWDM Mux Demux with Expansion Port is a high-capacity optical multiplexing solution designed to maximize fiber utilization and support scalable network growth. Using Dense Wavelength Division Multiplexing (DWDM) technology, it enables multiple high-speed data channels to be transmitted over a single fiber, significantly reducing infrastructure costs.
This model features a single fiber (bi-directional) Side-A configuration, combining multiplexing and demultiplexing into a compact unit—ideal for environments where fiber resources are limited. The integrated expansion port allows future channel upgrades without replacing existing equipment, ensuring long-term flexibility.
Designed as an FMU plug-in module, it easily integrates into compatible rack chassis for high-density deployments. With passive operation and low insertion loss, it delivers reliable, energy-efficient performance for data centers, telecom networks, and enterprise infrastructures in Singapore.

Features and Specifications:

Brand: FS
Multiplexing Capability: 8 Channels multiplexed on a single fiber to maximize the utilization of existing fiber infrastructure. This makes it a cost-effective solution for expanding network capacity without laying new fiber.
Channel Spacing: 100GHz (approximately 0.8nm), a standard grid for Dense Wavelength Division Multiplexing (DWDM) systems.
Channel Passband: ± 0.11nm to ensure the signals stay within the desired transmission window with minimal distortion.
Passband Ripple: = 0.5dB, which indicates low signal fluctuation within the passband and contributes to signal integrity.
Insertion Loss at Expansion Port: = 4.6dB, maintaining consistent performance even when additional channels are added via the expansion port.
Housing: FMU Plug-in Module, which occupies 1 slot in an FMU chassis, making it easy to install and integrate into existing rack-mount systems.
Power Handling: Supports power handling of = 500mW, which is sufficient for typical optical signal powers.
Dimensions (HxWxD): 1.73" x 8.35" x 10.04" (44 x 212 x 255mm)
Return Loss: = 45dB, which reflects good signal reflection management and ensures minimal signal loss.
Directivity: = 45dB, important for minimizing back-reflection and signal degradation.
Polarization Dependent Loss: = 0.3dB, ensuring that signal polarization does not cause significant loss.
Polarization Mode Dispersion: = 0.1ps, indicating minimal distortion from polarization mode dispersion (PMD), which is critical for maintaining high signal integrity in long-distance transmission.
Compact form factor designed for easy integration into standard rack systems.

Insertion Loss:

Typical: 4.2dB
Max: 4.6dB
Low insertion loss ensures minimal signal attenuation and efficient signal transmission.

Channel Isolation:

Adjacent channels: = 30dB
Non-adjacent channels: = 40dB
High isolation between channels prevents crosstalk and signal interference, ensuring clean signal paths.

Temperature Range:

Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
This wide temperature tolerance ensures stable operation in diverse environments, both indoors and outdoors.

Why Choose This Product?

High Channel Capacity: Multiplexing up to 8 channels on a single fiber allows for efficient use of existing fiber infrastructure, significantly improving network scalability.
Low Insertion Loss: With typical 4.2dB insertion loss and maximum 4.6dB, this solution ensures minimal signal degradation, providing reliable high-quality transmission.
Excellent Channel Isolation: The high isolation between adjacent channels (= 30dB) and non-adjacent channels (= 40dB) minimizes signal interference, ensuring clean and independent data streams.
Future-Proof and Expandable: The expansion port allows you to add more channels as your network grows, making it a future-proof solution.
Temperature Resilience: With the ability to operate in a wide temperature range (-40 to 85°C), it is ideal for deployment in harsh or remote environments, including industrial or outdoor settings.
Cost-Effective: By multiplexing multiple channels onto a single fiber, this solution reduces the need for additional fiber installation, saving on infrastructure costs while boosting capacity.
Customization: Since the solution can be customized to meet specific customer needs, it provides a flexible option for diverse applications in optical networking.
Efficient Power Handling: Handling power up to 500mW, the solution is capable of operating efficiently without power-related issues in typical networking environments.

Features

Brand:

FS

Color:

Black

Conditions:

New

Warranty:

3 Years
