Specifications

Product Overview:

This optical multiplexer is designed for high-performance wavelength division multiplexing (WDM) networks, providing 8 channels compliant with the ITU grid and 100GHz spacing. It efficiently utilizes existing fiber by enabling the transmission of multiple wavelengths on a single fiber pair. This solution is ideal for expanding network capacity and improving the overall data throughput in a network.

Product Highlights:

ITU Grid Compliance: The solution supports 8 channels in the C21-C28 range, offering flexibility and compliance with international standards for wavelength division multiplexing (WDM) systems.
Low Insertion Loss: Typical insertion loss is as low as 2.4dB, with a maximum of 3.1dB, ensuring efficient signal transmission with minimal loss of signal power.
Expansion Port for Capacity Growth: The expansion port allows additional channels to be added to the system, providing an easy way to scale network capacity as needed.
1% Monitor Port for Signal Monitoring: The monitor port taps off 1% of the signal for monitoring the channel power levels, ensuring effective troubleshooting and performance monitoring without disrupting the service.
Customizable for Specific Applications: The solution can be customized based on specific requirements, allowing you to tailor the product to fit your unique network needs.

Specifications:

Number of Channels: 8 channels, C21-C28 within the 1520-1570nm wavelength range.
Channel Spacing: 100GHz (0.8nm), which is typical for high-density WDM systems.
Operating Wavelength: The operating wavelength range is 1520-1570nm, covering the C-band used for telecom services.
Channel Passband: ± 0.11nm ensures minimal overlap between channels, ensuring high-quality transmission.
1310nm Port Passband: 1260-1360nm for the 1310nm port, which is used for capacity expansion and facilitates the addition of more wavelengths for increased network capacity.
Expansion Port Passband: The expansion port has a passband range of 1500~1554.34nm and 1561.21~1620nm, allowing the system to support additional wavelengths in these regions, offering flexibility for future network upgrades.
1% Monitor Port Loss: Insertion loss at the monitor port is =24dB, which is useful for network monitoring without affecting the main signal.
Passband Ripple: The passband ripple is =0.5dB, indicating a smooth, consistent signal response across the passband.
Technology: The device uses Thin Film Filter (TFF) technology, which provides high performance, low insertion loss, and excellent isolation between channels.
Channel Isolation: Adjacent channel isolation is =30dB, and non-adjacent channel isolation is =40dB, ensuring minimal crosstalk between channels and maintaining signal integrity.
Polarization Dependent Loss (PDL): =0.3dB ensures that the system performs consistently regardless of polarization fluctuations in the signal.
Polarization Mode Dispersion (PMD): =0.1ps, which is critical for maintaining signal quality over longer distances.
Return Loss: =45dB, which ensures minimal reflection of light back into the system, improving overall performance.
Power Handling: The device supports a maximum power handling of =500mW, making it suitable for high-power applications.
Connector Type: The connectors are LC/UPC, ensuring a secure and reliable connection with low insertion loss.
Form Factor: The device is available in a FHD® Plug-in Module format, making it easy to integrate into existing systems.
Dimensions: 1.38''x4.29''x4.64'' (35x109x118mm), compact and easy to install in standard rackmount configurations.

Ideal Uses:

Telecommunications Networks: This product is perfect for telecom service providers who need to maximize the use of existing fiber infrastructure while increasing network capacity by adding more channels.
Data Centers: Ideal for data centers looking to expand their WDM systems efficiently and cost-effectively, enabling more data throughput and reducing the need for additional fiber cables.
Long-Haul & Metro Networks: Suitable for both long-haul and metro networks, where the network requires high-capacity, high-performance solutions to handle large volumes of data over existing fiber infrastructure.
Network Expansion: The 1310nm expansion port is great for operators looking to expand their network capacity without needing additional fiber, offering scalability for future growth.
Network Troubleshooting & Monitoring: With the 1% monitor port, this solution is perfect for networks that require real-time monitoring of channel power levels, simplifying troubleshooting and network management.

Why Choose This Product?

Cost-Effective Capacity Expansion: The ability to add up to 8 channels with 100GHz spacing and the expansion port allows you to increase capacity without new fiber deployments.
Low Insertion Loss: With a typical insertion loss of just 2.4dB, the system offers high signal integrity and minimal attenuation, ensuring high-quality transmission.
Monitor Port for Troubleshooting: The 1% monitor port allows for easy monitoring of channel power levels without disrupting service, simplifying maintenance and network health checks.
Customizable: The product can be tailored to meet specific customer needs, whether that involves adjusting the channel configurations or other aspects of the product.
High Performance: With excellent isolation (up to =40dB for non-adjacent channels) and low polarization-dependent loss, this solution ensures reliable performance and consistent service quality.
Flexible Wavelength and Passband: With a broad wavelength range (1520-1570nm) and support for 1310nm expansion, this product is versatile for various network applications and growth.

Features

Brand:

Color:

Black

Conditions:

New

Warranty:

3 Years

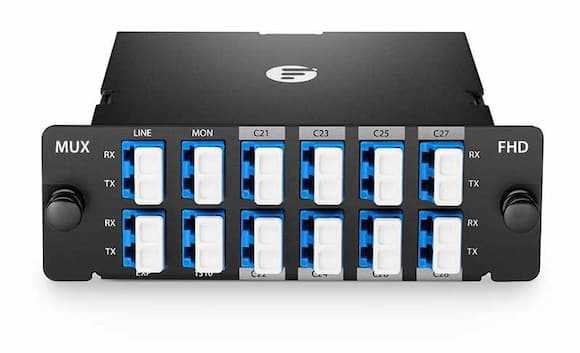

FS 8 Channels DWDM Mux Demux with EXP & Mon, 1310nm Port, 2.4dB Typical IL, LC/UPC, Dual Fiber (Black)
