Home WDM, OTN & PON Mux Demux & OADM Custom Mux Demux & OADM FS 40 Channels DWDM Mux Demux with Monitor Port, Dual Fiber, 1U Rack Mount (Black)

FS 40 Channels DWDM Mux Demux with Monitor Port, Dual Fiber, 1U Rack Mount (Black)
Previous
  1. FS 40 Channels DWDM Mux Demux with Monitor Port, Dual Fiber, 1U Rack Mount (Black)
Next

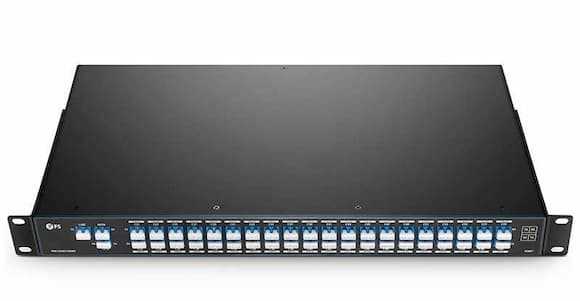

FS 40 Channels DWDM Mux Demux with Monitor Port, Dual Fiber, 1U Rack Mount (Black)

Brand:
FS

Specifications

   Product Overview:
  • The 40 Channels DWDM Mux/Demux is a high-performance, low-loss, and high-density solution for long-haul transmission in DWDM systems. It is based on Gaussian Arrayed Waveguide Grating (AAWG) technology, providing 100GHz channel spacing compliant with the ITU G.694.1 standard. This 1U rack-mountable device supports both multiplexing and demultiplexing of 40 channels (C21-C60) in the C-band and is ideal for metropolitan area networks (MANs) and high-speed communication lines. It offers an efficient and cost-effective solution for network capacity expansion and is customizable for various customer applications.
   Product Highlights:
  • 40 Channels Compliant to ITU G.694.1: Supports 40 channels with 100GHz channel spacing, covering C21-C60 (1530nm - 1565nm), ensuring efficient use of the C-band for optimal long-haul transmission.
  • 1310nm Port for Increased Capacity: Includes a 1310nm port to enhance capacity, providing an additional pathway for signal transmission.
  • Monitor Port: 1% Monitor Port to tap off 1% of the signal, enabling easy monitoring of channel power levels for efficient network diagnostics and troubleshooting.
  • Gaussian AAWG Technology: Utilizes Arrayed Waveguide Grating (AAWG), a Gaussian filter for high performance, offering low loss and high channel isolation.
  • Customizable Solution: The Mux/Demux can be customized to meet specific customer requirements, providing flexibility for unique network configurations and expansions.
   Specifications:
  • Wavelength Range: 40 Channels in the C-band (C21-C60), covering wavelengths from 1530nm to 1565nm.
  • Channel Spacing: 100GHz (0.8nm) channel spacing, ideal for high-capacity long-haul applications.
  • 1310nm Port Passband: 1260nm ~ 1360nm, providing an additional port for increased capacity.
  • Center Wavelength Accuracy: ±0.05nm, ensuring precise wavelength allocation for stable transmission.
  • Channel Passband: ±0.11nm, enabling reliable transmission over the designated wavelength range.
  • Operating Temperature: -5 to 65°C (23 to 149°F), making it suitable for a wide range of environmental conditions.
  • Storage Temperature: -40 to 85°C (-40 to 185°F), ensuring safe operation even in extreme conditions.
  • Form Factor: 1U Height, designed to fit in a standard 19" rack for space-efficient installation.
  • Dimensions: 1.73"x19"x10.28" (44x481.8x261.2mm), making it a compact and easily mountable solution.
  • Passband Ripple: = 1.5dB, ensuring uniform signal quality across all channels.
  • Return Loss: = 40dB, minimizing signal reflections and maintaining signal integrity.
  • Directivity: = 40dB, ensuring accurate signal direction and reduced signal leakage.
  • Polarization Mode Dispersion (PMD): = 0.5ps, maintaining consistent signal timing and reducing dispersion-related issues.
  • Polarization Dependent Loss (PDL): = 0.7dB, ensuring minimal impact on signal performance from polarization variations.
  • Power Handling: = 300mW, allowing for high-power handling while maintaining reliable operation.
     Applications:
  • Long-haul Transmission: Ideal for long-haul fiber-optic networks, ensuring high capacity and low loss for high-speed data over large distances.
  • Metropolitan Area Networks (MANs): Suitable for use in metro networks, providing a cost-effective solution for high-capacity data transmission in urban areas.
  • Telecommunications Providers: Perfect for telecom providers needing high-density and high-capacity multiplexing solutions for expanded network capacity.
  • Point-to-Point & Amplified Ring Architectures: Supports both point-to-point and amplified ring configurations, offering flexibility in deployment.
  • Network Upgrade & Expansion: Ideal for network upgrades and capacity expansion, ensuring compatibility with a wide range of existing optical networking products.
  • Customizable Solutions: Can be customized based on specific customer requirements, enabling tailored solutions for unique networking environments.
   Why Choose This Product?
  • High Channel Density: Offers 40 channels with 100GHz spacing, enabling high-capacity transmission on a single fiber.
  • Low Insertion Loss: 3.5dB typical insertion loss ensures minimal signal degradation, maintaining optimal performance.
  • Advanced Monitoring: The 1% monitor port allows easy monitoring of signal levels, aiding in network management and troubleshooting.
  • Flexible and Customizable: The solution is customizable to meet unique customer requirements, making it versatile for various network configurations.
  • High-Performance and Reliable: With low polarization dependent loss, high channel isolation, and minimal insertion loss, this unit offers reliable, high-performance operation.
  • Future-Proof: The ability to support future network upgrades with a 1310nm port and flexible configurations makes this product a scalable solution.

Features

Brand:
FS
Color:
Black
Conditions:
New
Warranty:
3 Years
