Home WDM, OTN & PON Mux Demux & OADM Custom Mux Demux & OADM FS 40-Channel Super C-Band DWDM Mux Demux with 150GHz, 5.5dB IL, Dual Fiber, LC/UPC, 1U Rack Mount & Monitor Port (Black)

FS 40-Channel Super C-Band DWDM Mux Demux with 150GHz, 5.5dB IL, Dual Fiber, LC/UPC, 1U Rack Mount & Monitor Port (Black)
Previous
  1. FS 40-Channel Super C-Band DWDM Mux Demux with 150GHz, 5.5dB IL, Dual Fiber, LC/UPC, 1U Rack Mount & Monitor Port (Black)
Next

FS 40-Channel Super C-Band DWDM Mux Demux with 150GHz, 5.5dB IL, Dual Fiber, LC/UPC, 1U Rack Mount & Monitor Port (Black)

Brand:
FS

Specifications

   Product Overview:
  • The FS 40-Channel Super C-Band DWDM Mux Demux, engineered for high-density wavelength multiplexing in modern data center and telecom environments. Supporting 40 channels within the Super C-band spectrum and spaced at 150GHz, this solution enables efficient transmission of multiple optical signals over a single fiber pair.
  • Designed with low insertion loss of just 5.5dB, it ensures minimal signal degradation while maintaining excellent performance across long-distance applications. The dual fiber configuration separates transmit and receive paths, improving network stability and reducing interference.

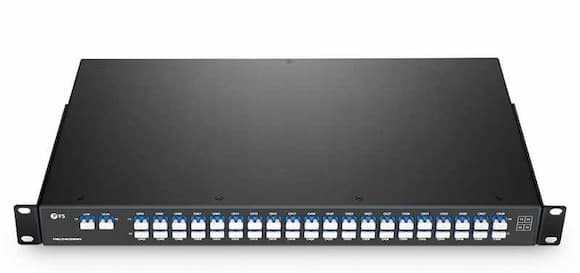

  • Housed in a compact 1U rackmount chassis, this DWDM Mux Demux integrates seamlessly into standard racks. The included monitor port allows real-time signal analysis without interrupting traffic, making it ideal for network management and maintenance.
  • With high-quality LC/UPC connectors and a durable black metal enclosure, this device is built for reliability, scalability, and performance in Singapore’s enterprise and carrier-grade networks.
   Features & Specifications:
  • Brand: FS
  • Multiplexing Capacity: Can multiplex up to 40 channels on a fiber pair, allowing you to maximize the usage of existing fiber infrastructure.
  • Wavelength: Supports 40 odd channels from 190.7875-196.6375 THz with a 150 GHz channel spacing. This is designed for high-capacity systems with relatively wide channel spacing.
  • Passband: The ±16.25 GHz channel passband ensures sufficient bandwidth for each channel while maintaining signal integrity.
  • Insertion Loss: A typical insertion loss of 5.5 dB (maximum 6.2 dB) indicates low signal loss during transmission, which is important for maintaining signal quality over long distances.
  • Channel Isolation: Adjacent channel isolation of =25 dB and non-adjacent channel isolation of =30 dB ensure minimal crosstalk, which is critical for maintaining the quality and integrity of multiple optical signals transmitted over the same fiber.
  • Return Loss: A =40 dB return loss ensures that minimal power is reflected back into the system, which improves overall system performance and longevity.
  • Polarization Dependent Loss (PDL): A low =0.5 dB PDL and =1.0 ps polarization mode dispersion (PMD) ensure that signal quality remains high, even in variable network conditions.
  • Operating & Storage Temperature: Operating Temperature: -5 to 65°C (23 to 149°F) and Storage Temperature: -40 to 85°C (-40 to 185°F), making this product reliable in various environmental conditions.
  • Monitor Port: A monitor port that taps off 1% of the signal for monitoring channel power levels, making it easy to assess and manage system health.
  • Dimensions & Weight: Dimensions: 44 x 481.8 x 264.1 mm (1.73"x19"x10.4") and weight: 3.8 kg.
  • Technology: AAWG (Flat-top) technology for flat passbands, ensuring minimal distortion across the channels.
   Ideal Uses:
  • Telecommunications Networks: This product is highly suited for high-capacity telecommunications systems, especially in the backbone or metropolitan areas where maximizing fiber use is crucial.
  • Long-Haul Optical Transport Networks: With its low insertion loss and high channel isolation, it's ideal for long-distance optical networks, ensuring signals can travel over hundreds or thousands of kilometers without significant degradation.
  • Data Center Interconnects: Large data centers requiring high-bandwidth optical interconnects will benefit from the ability to multiplex up to 40 channels on a single fiber.
  • DWDM Systems: This device is a perfect fit for Dense Wavelength Division Multiplexing (DWDM) applications, which require precise and efficient management of optical channels.
  • Upgrading Existing Infrastructure: If you're looking to increase the capacity of your current fiber infrastructure without laying down additional fiber, this solution provides a practical and cost-effective option.
   Why Choose This Product?
  • Efficiency: Multiplexing 40 channels onto a single fiber maximizes the use of existing fiber infrastructure, reducing the need for costly new fiber installations.
  • Low Loss & High Isolation: With typical insertion loss as low as 5.5 dB, and strong isolation characteristics, the product ensures minimal signal degradation, which is critical in maintaining high-quality communications.
  • Customization: The product can be customized to meet specific customer requirements, offering flexibility in deployments.
  • Reliable Monitoring: The built-in monitoring capabilities allow operators to easily keep track of signal health and make adjustments or identify issues as needed.
  • Wide Temperature Range: The wide operating and storage temperature ranges ensure this product can be deployed in a variety of environments, from outdoor applications to temperature-controlled data centers.
  • Compliant with ITU Standards: Compliant with the ITU (International Telecommunication Union) grid, ensuring it works seamlessly with other optical networking products that adhere to the same standards.

Features

Brand:
FS
Color:
Black
Conditions:
New
Warranty:
3 Years
