Home WDM, OTN & PON Mux Demux & OADM Custom Mux Demux & OADM FS 18 Channels CWDM Mux Demux with Monitor, Expansion Port, Dual Fiber, Dual Fiber, 1U Rack Mount (Black)

FS 18 Channels CWDM Mux Demux with Monitor, Expansion Port, Dual Fiber, Dual Fiber, 1U Rack Mount (Black)
Previous
  1. FS 18 Channels CWDM Mux Demux with Monitor, Expansion Port, Dual Fiber, Dual Fiber, 1U Rack Mount (Black)
Next

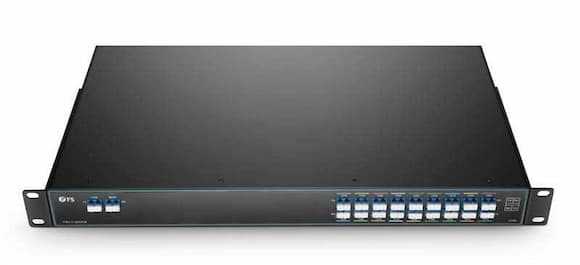

FS 18 Channels CWDM Mux Demux with Monitor, Expansion Port, Dual Fiber, Dual Fiber, 1U Rack Mount (Black)

Brand:
FS

Specifications

   Product Overview:
  • The 18 Channels CWDM Mux/Demux (1270-1610nm) is a passive CWDM device designed for short-distance transmission and optimized for maximizing capacity within the C-band range. Using Thin Film Filter (TFF) technology, this cost-effective solution serves as both a multiplexer and demultiplexer for up to 18 channels. It's ideal for point-to-point and amplified ring network configurations. With low insertion loss and monitoring capabilities, this unit supports a wide range of architectures and is perfect for applications that need high-capacity transmission on a single fiber pair.
   Product Highlights:
  • Passive Transparent Multiplexing: Supports up to 18 channels on a single fiber pair, enabling efficient use of existing fiber infrastructure and optimizing the capacity for both multiplexing and demultiplexing.
  • Hybrid C/DWDM System: The unit supports integration of additional DWDM channels via 1530nm/1550nm, enabling greater capacity and future-proofing for expanding network needs.
  • Monitor Port: Includes a 1% monitoring port, allowing users to monitor the channel power levels for effective network performance management and troubleshooting.
  • Wide Application Range: Compatible with a variety of optical networking products and supports configurations from point-to-point to more complex amplified ring topologies.
   Specifications:
  • Brand: FS
  • Wavelength: Supports 18 channels in the range of 1270-1610nm, maximizing the use of the C-band for higher capacity.
  • Channel Spacing: 20nm spacing, optimized for efficient channel utilization while minimizing interference.
  • Passband Ripple: = 0.5dB, ensuring uniform signal strength across all channels.
  • Center Wavelength Accuracy: ± 0.05nm, offering high precision for stable wavelength allocation.
  • Channel Passband: ± 6.5nm, providing sufficient bandwidth for reliable data transmission.
  • Power Handling: = 500mW, allowing the unit to handle high-power signals while ensuring optimal performance.
  • Dimensions: 1.73"x19"x10.28" (44x481.8x261.2mm), designed to fit into a standard 19" rack, occupying 1U of space.
  • Operating Temperature: -40 to 85°C (-40 to 185°F), making it suitable for varied environmental conditions.
  • Storage Temperature: -40 to 85°C (-40 to 185°F), ensuring safe operation even in extreme temperatures.
  • Return Loss: = 45dB, reducing signal reflections and preserving the integrity of the optical signals.
  • Directivity: = 50dB, improving the directionality of signals and reducing the chance of signal leakage.
  • Polarization Dependent Loss (PDL): = 0.3dB, minimizing the impact of polarization variations on signal quality.
  • Polarization Mode Dispersion (PMD): = 0.1ps, ensuring that the signal remains consistent and stable over long distances.
   Ideal Uses:
  • Telecom Providers: Telecom networks benefit from the 18 channels multiplexed onto a single fiber pair, which improves network efficiency and scalability.
  • Data Centers: Data centers looking for high-capacity, short-distance transmission can use this unit to increase fiber utilization and maximize network performance.
  • Metro Networks: Ideal for metro area networks, where multiplexing of multiple channels on a single fiber offers a cost-effective solution for bandwidth-intensive applications.
  • Point-to-Point and Ring Configurations: The unit supports both point-to-point and amplified ring network topologies, offering flexibility in deployment.
  • Hybrid Network Architectures: The Hybrid C/DWDM support allows this unit to be used in high-capacity networks, integrating additional DWDM channels as the network grows.
  • Network Expansion and Monitoring: The monitor port allows network operators to monitor the signal power levels, ensuring stable operation and aiding in network management and diagnostics.
   Why Choose This Product?
  • Maximizes Fiber Usage: The 18-channel multiplexing on a single fiber pair optimizes fiber use, reducing the need for additional fiber installations.
  • Low Insertion Loss: With typical insertion loss of 5.0dB, it ensures high signal quality across multiple channels.
  • Scalable and Flexible: Hybrid C/DWDM support provides an avenue for future network expansions, and the monitor port helps in easy monitoring and maintenance.
  • High Performance: With excellent channel isolation, low polarization-dependent loss, and high return loss, the unit guarantees stable, high-performance operation.
  • Customizable: The solution can be tailored to meet specific customer needs, offering flexibility for diverse network applications.
  • Cost-Effective: A cost-effective solution that provides high capacity and performance without the need for costly fiber upgrades.


Features

Brand:
FS
Color:
Black
Conditions:
New
Warranty:
3 Years
