Home WDM, OTN & PON Mux Demux & OADM Custom Mux Demux & OADM FS 16 Channels DWDM Mux Demux with 100GHz C21-C36, 1U Rack Mount, Monitor, Expansion & 1310nm Port (Black)

FS 16 Channels DWDM Mux Demux with 100GHz C21-C36, 1U Rack Mount, Monitor, Expansion & 1310nm Port (Black)
Previous
  1. FS 16 Channels DWDM Mux Demux with 100GHz C21-C36, 1U Rack Mount, Monitor, Expansion & 1310nm Port (Black)
Next

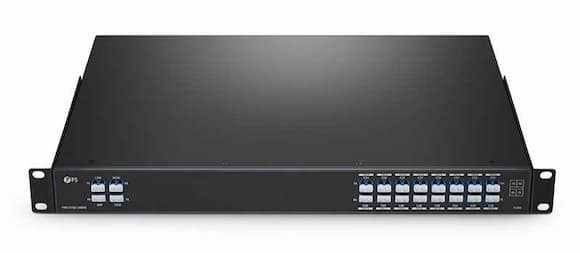

FS 16 Channels DWDM Mux Demux with 100GHz C21-C36, 1U Rack Mount, Monitor, Expansion & 1310nm Port (Black)

Brand:
FS

Specifications

   Product Overview:
  • This 16-channel optical multiplexer provides passive transparent multiplexing for up to 16 channels on a single fiber pair, helping to maximize the usage of existing fiber infrastructure. With a low insertion loss and compatibility with the ITU grid, this device is ideal for expanding the capacity of optical networks without additional fiber deployment. It is equipped with monitoring and expansion ports, allowing for both future scalability and network performance monitoring.
   Product Highlights:
  • ITU Grid Compliance: Supports 16 channels in the C21-C36 range, making it fully compliant with the ITU grid, and allowing for easy integration with existing optical networking products.
  • 1310nm Port & Expansion Port: 1310nm Port: Allows for network expansion by providing a separate wavelength for additional capacity.
  • Expansion Port: Enables easy integration of extra channels, ensuring that the network can grow as demand increases.
  • Monitor Port: A 1% monitor port is available to tap off a small portion of the signal for power level monitoring, ensuring optimal network performance and simplifying troubleshooting.
  • Customizable Solution: This product can be customized to meet the specific needs of the customer, offering flexibility for a wide range of applications.
   Specifications:
  • Brand: FS
  • Number of Channels: 16 channels in the C21-C36 range, ideal for networks needing to handle a large number of channels over a single fiber pair.
  • Channel Spacing: 100GHz (0.8nm), which is a standard spacing for dense wavelength division multiplexing (DWDM), allowing multiple channels to be transmitted on a single fiber while minimizing interference.
  • Channel Passband: ±0.11nm ensures each channel operates within a tight, consistent frequency range, minimizing cross-talk and maximizing the efficiency of the optical network.
  • 1310nm Port Passband: The 1310nm port operates between 1260nm and 1360nm, providing additional capacity without the need for more fiber.
  • Passband Ripple: =0.5dB, ensuring minimal variation in signal quality across the passband.
  • Technology: Utilizes TFF (Thin Film Filter) technology, which is known for its high-performance multiplexing and excellent channel isolation.
  • Return Loss: =45dB, reducing reflection and ensuring high-quality signal transmission.
  • Directivity: =45dB, indicating effective isolation between channels and ensuring that the signals are properly routed.
  • Polarization Dependent Loss (PDL): =0.3dB, a very low value, ensuring minimal signal degradation due to polarization variations.
  • Polarization Mode Dispersion (PMD): =0.1ps, a very low value, indicating that the system will perform stably even under varying polarization conditions.
  • Operating Temperature: -40 to 85°C (-40 to 185°F), making it suitable for deployment in harsh environments or temperature-sensitive locations.
  • Storage Temperature: -40 to 85°C (-40 to 185°F), ensuring safe storage and operation under extreme temperature conditions.
  • Power Handling: =500mW, which ensures that the module can handle high-power optical signals without damage.
  • Dimensions: 1.73"x19"x10.28" (44x481.8x261.2mm), a standard 19" rack mount form factor that is compatible with most rack-mounted systems, occupying 1U of rack space.
   Ideal Uses:
  • Telecom Networks: Perfect for telecom operators who need to increase their network capacity without additional fiber installation, utilizing the 16 channels over existing fiber pairs.
  • Data Centers: Ideal for data center operators looking to expand their optical networks and increase the throughput across their infrastructure.
  • Long-Haul & Metro Networks: Suitable for long-haul and metro networks where scalable capacity and high-density multiplexing are crucial for data transport.
  • Network Upgrades: The 1310nm and expansion ports offer a flexible solution for network upgrades without the need for major infrastructure changes.
  • Network Management & Monitoring: The monitor port allows network operators to monitor signal strength, making it an important tool for network diagnostics and ensuring the health of the optical system.
   Why Choose This Product?
  • Efficient Use of Fiber: By supporting 16 channels on a single fiber pair, this device maximizes the use of existing fiber infrastructure, significantly increasing the system's capacity without the need for additional fiber deployment.
  • Low Insertion Loss: With typical insertion loss of 4.4dB and a maximum of 4.9dB, the device ensures that the signal degradation is kept to a minimum, maintaining high network performance.
  • Flexible and Scalable: The presence of 1310nm and expansion ports ensures that the system can scale as needed, enabling network operators to add more channels without deploying additional fiber.
  • Reliable Performance: With high channel isolation (=30dB for adjacent channels and =40dB for non-adjacent channels), low polarization dependent loss, and low passband ripple, this multiplexer offers high reliability and performance even in dense WDM environments.
  • Real-Time Monitoring: The monitor port enables real-time monitoring of the channel power levels, helping to identify issues and perform troubleshooting quickly.
  • Customization Options: The product is customizable to meet specific application needs, offering flexibility for various network environments and use cases.

Features

Brand:
FS
Color:
Black
Conditions:
New
Warranty:
3 Years
