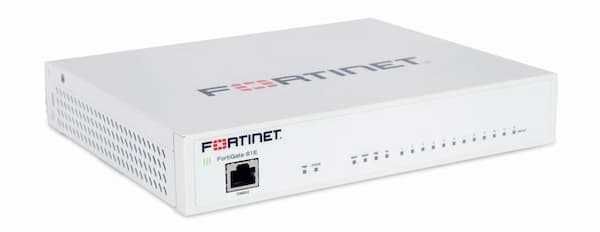

Fortinet FortiGate-81E 1 Year Enterprise Protection (24x7)


Brand:

Specifications

   Product Details:
  • Warranty: 1 Year Warranty
  • Brand: Fortinet
  • Model: FortiGate-81E
   Specifications:

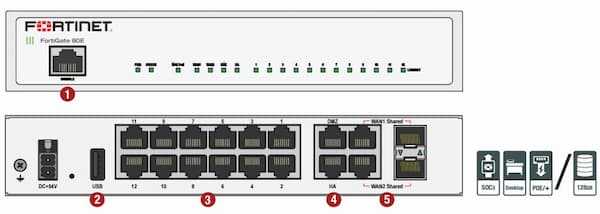

  • E RJ45/SFP Shared Media Pairs: 2
   GE RJ45 Ports:
  • GE RJ45 PoE/+ Ports: 12
  • GE RJ45 DMZ/HA Ports: 2
  • USB Ports: 1
  • Console (RJ45): 1
  • Internal Storage: 1x 128 GB SSD
   System Performance — Enterprise Traffic Mix:
  • IPS Throughput 2 450 Mbps
  • NGFW Throughput 2, 4 360 Mbps
  • Threat Protection Throughput 2, 5 250 Mbps
   System Performance:
  • Firewall Throughput (1518 / 512 / 64 byte UDP packets): 4 / 4 / 4 Gbps
  • Firewall Latency (64 byte UDP packets): 3 µs
  • Firewall Throughput (Packets Per Second): 6 Mpps
  • Concurrent Sessions (TCP): 1.3 Million
  • New Sessions/Second (TCP): 30,000
  • Firewall Policies: 5000
  • IPsec VPN Throughput (512 bytes) 1: 2.5 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels: 200
  • Client-to-Gateway IPsec VPN Tunnels: 2500
  • SSL-VPN Throughput: 200 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) 3: 135 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) 3: 135
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3: 95,000
  • Application Control Throughput (HTTP 64K) 2: 900 Mbps
  • CAPWAP Throughput (HTTP 64K): 920 Mbps
  • Virtual Domains (Default / Maximum): 10 / 10
  • Maximum Number of FortiSwitches Supported: 16
  • Maximum Number of FortiAPs (Total / Tunnel Mode): 32 / 16
  • Maximum Number of FortiTokens: 500
  • High Availability Configurations: Active-Active, Active-Passive, Clustering
   Dimensions:
  • Height x Width x Length (inches): 1.65 x 8.5 x 7
  • Height x Width x Length (mm): 42 x 216 x 178
  • Weight: 1200
  • Form Factor: Desktop
  • Input Rating: 54Vdc, 2.78A
  • Power Required Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz
  • Maximum Current: 115V AC / 1.2A, 230V AC / 0.6A
  • Total Available PoE Power Budget: 110 W
  • Power Consumption (Average/Maximum): 20 W / 137 W
  • Heat Dissipation: 467.5 BTU/h


Features

Brand:
FORTINET
Color:
White
Warranty:
1 Year
