Fortinet FortiGate-40F Hardware plus 1 Year FortiCare and FortiGuard Enterprise Protection (24x7)


Brand:

Specifications

   Product Details:
  • Warranty: 1 Year Warranty
  • Brand: Fortinet

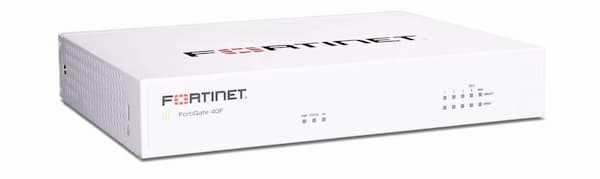

  • Model: FortiGate-40F
   Specifications:

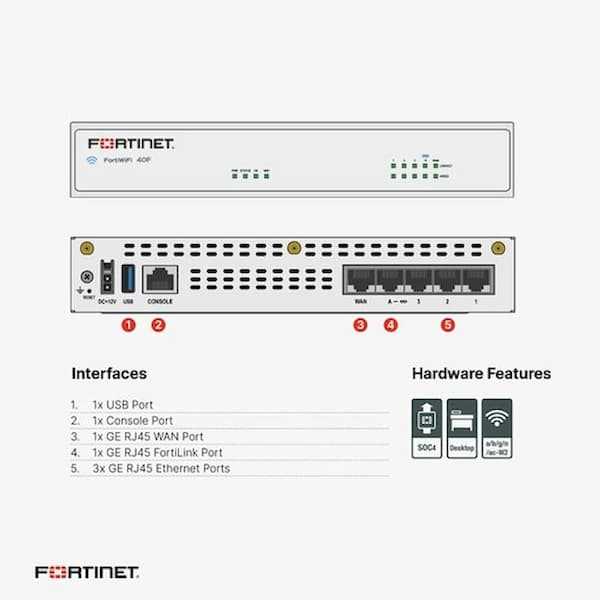

   Interfaces and Modules:
  • Hardware Accelerated GE RJ45 WAN/DMZ Ports: 1
  • Hardware Accelerated GE RJ45 Internal Ports: 3
  • Hardware Accelerated GE RJ45 FortiLink Ports (Default): 1
  • Hardware Accelerated GE RJ45
  • POE/+ Ports: 0
  • Wireless Interface: 0
  • USB Ports: 1
  • Console Port (RJ45): 1
  • Onboard Storage: 0
  • Included Transceivers: 0
   System Performance — Enterprise Traffic Mix:
  • IPS Throughput 2: 1 Gbps
  • NGFW Throughput 2, 4: 800 Mbps
  • Threat Protection Throughput 2, 5: 600 Mbps
   System Performance and Capacity:
  • IPv4 Firewall Throughput (1518/512/64 byte, UDP): 5/5/5 Gbps
  • Firewall Latency (64 bytes, UDP): 2.97 µs
  • Firewall Throughput (Packet per Second): 7.5 Mpps
  • Concurrent Sessions (TCP): 700,000
  • New Sessions/Second (TCP): 35,000
  • Firewall Policies: 5000
  • IPsec VPN Throughput (512 bytes) 1: 4.4 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels: 200
  • Client-to-Gateway IPsec VPN Tunnels: 250
  • SSL-VPN Throughput: 490 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) 3: 310 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) 3: 320
  • SSL Inspection Concurrent Session
  • (IPS, avg. HTTP) 3: 55,000
  • Application Control Throughput (HTTP 64K) 2: 990 Mbps
  • CAPWAP Throughput (HTTP 64K): 3.5 Gbps
  • Virtual Domains (Default / Maximum): 10/10
  • Maximum Number of FortiSwitches Supported: 8
  • Maximum Number of FortiAPs (Total/Tunnel): 16/8
  • Maximum Number of FortiTokens: 500
  • High Availability Configurations: Active-Active, Active-Passive, Clustering
   Dimensions and Power:
  • Height x Width x Length (inches): 1.5 x 8.5 x 6.3
  • Height x Width x Length (mm): 38.5 x 216 x 160
  • Weight: 1000 g
  • Form Factor (supports EIA/non-EIA standards): Desktop
  • Input Rating: 12Vdc, 3A
  • Power Required: Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
  • Power Consumption (Average / Maximum): 7.74 W / 9.46 W
  • Current (Maximum): 100V AC / 0.2A, 240V AC / 0.1A
  • Heat Dissipation: 52.55 BTU/h
   Operating Environment and Certifications:
  • Operating Temperature: 32–104°F (0–40°C)
  • Storage Temperature: -31–158°F (-35–70°C)
  • Humidity: 10–90% non-condensing
  • Noise Level: Fanless 0 dBA
  • Operating Altitude: Up to 7400 ft (2250 m)
  • Compliance: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
  • Certifications: ICSA Labs Firewall, IPsec,
  • IPS, Antivirus, SSL-VPN


Features

Brand:
FORTINET
Color:
White
Warranty:
1 Year
