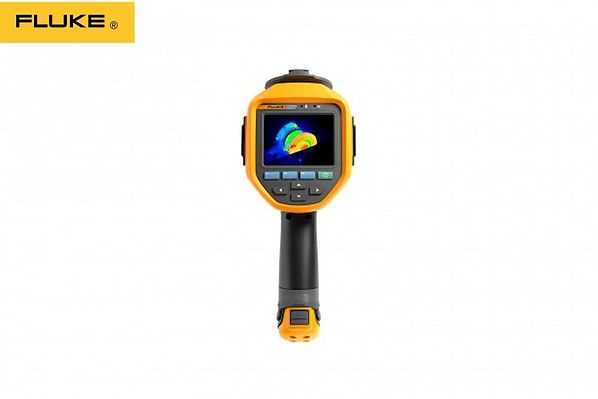

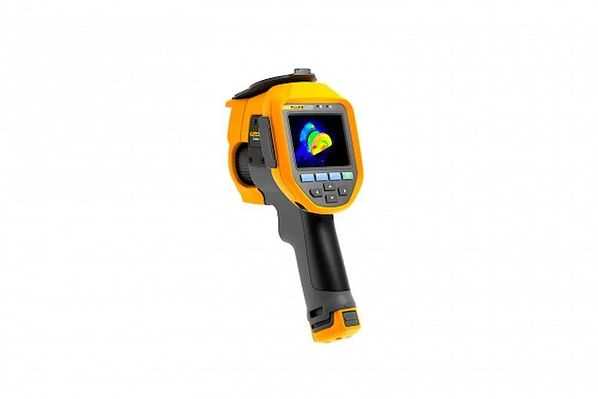

Fluke Ti480U/Ti401U/Ti300U Infrared Thermal Cameras (Black&Yellow)


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Fluke
  • Model: Ti480U/Ti401U/Ti300U
   Specification:
  • IR resolution: 640 × 480/640 × 480/384 × 288
  • SuperResolution: 1280 × 960
  • Detector type: Uncooled focal plane infrared detector
  • Spectral response: 7 to 14 µm
  • Image frame rate: 30 Hz/9/30 Hz 9/30 Hz
  • Lens Field of View (FOV): 25° x 19°
  • Spatial resolution (IFOV): 0.68 mrad
  • Focu: Auto / Manual Focus
  • Lens recognition: Auto
   Optional lens:
  • 2x telephoto lens
  • 4x telephoto lens
  • Wide-angle lens
  • Digital Zoom: 1-10x
  • Temperature range: -20 °C to 1200 °C
  • Temperature measurement range: -20 °C to 120 °C
   Temperature measurement area:
  • Spots: 16
  • Lines: 8
  • Areas: 12
  • Display Screen: 3.5" LCD, 640 × 480
  • Image mode: Thermal image, visible image, PIP
   Palettes:
  • Grey, Iron 10, IronRed, Rainbow, Grey10, GreyRed, MidGrey, Yellow and Rain
  • Palettes can be inverted
  • Support real-time palette preview and switching
   Temperature span mode:
  • Support automatic adjustment of temperature span (min. 3 °C)
  • Support manual adjustment of temperature span (min. 2 °C)
  • The maximum and minimum value of temperature span can be selected by touch (min. 2 °C)



Features

Brand:
Fluke
Color:
Black&Yellow
Conditions:
New
Warranty:
1 Year
