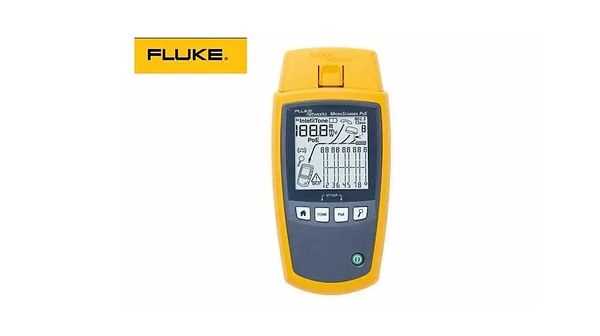

Fluke Networks MicroScanner PoE Industrial Ethernet Cable VerifierFluke Networks MicroScanner PoE Industrial Ethernet Cable Verifier


Brand:

Specifications

   Product Details:
  • No Warranty
  • Brand: Fluke
   Features:
  • Perform Cable Testing on Industrial Ethernet Networks (including Ethernet/IP, Profinet, EtherCat based systems)
  • Display cable length, wiremap and distance to fault
  • Display network switch speeds up to 10G and PoE
  • Locate and trace cable with toning (probe sold separately)
  • Report PoE class (0-8)
   Specification:
  • Operating temperature:  32 °F to 113 °F (0 °C to 45 °C)
  • Storage temperature: -4 °F to +140 °F (-20 °C to +60 °C)
  • Safety: IEC 61010-1 3rd Edition
  • Altitude: 4,000 m; Storage: 12,000 m
  • EMC: IEC 61326-1
  • Test connectors: Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs.
   Power:
  • Battery Type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
  • Battery life: 20 hours of typical use
  • Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
  • Dimensions and weight (with batteries installed and wiremap adapter attached): 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
  • MicroScanner PoE: 10.6 oz (300 G)
  • Display: Monochrome LCD with backlight


Features

Brand:
Fluke
Conditions:
New
Warranty:
No Warranty
