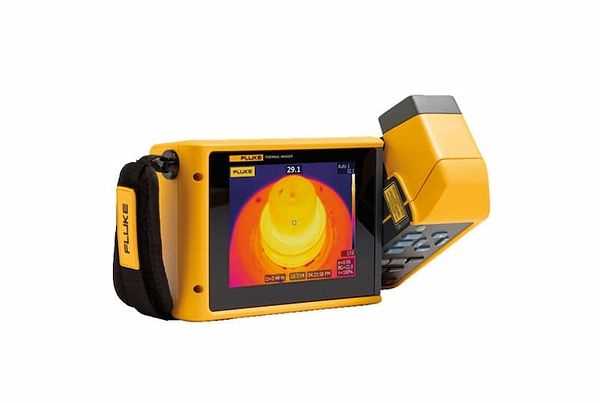

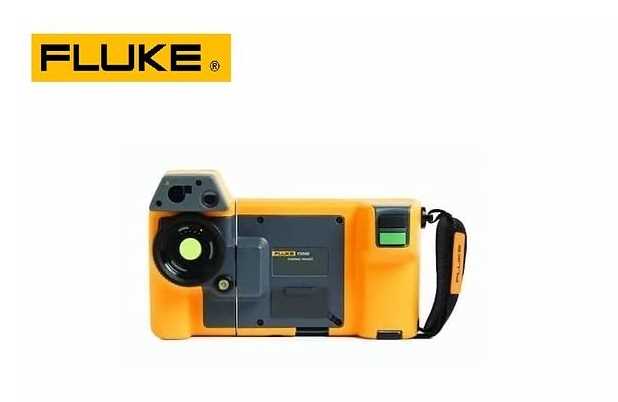

Fluke (FLK-TIX580 9HZ) Thermal Imager - Yellow


Brand:

Specifications

   Product details:
  • 2 Years Warranty
  • Brand: Fluke
  • P/N: FLK-TIX580 9HZ
   Features:
  • Detector resolution is 640 x 480 (307200 pixels) or 1280 x 960 with super-resolution, 9Hz frame rate
  • IFOV with standard lens is 0.93mRad, the field of view is 34°H x 24°V, the minimum focus distance is 15cm
  • IFOV with optional 2x smart lens is 0.46mRad, 17°H x 12°V field of view, 45cm focus distance
  • IFOV with optional 4x smart lens is 0.23mRad, 8.5°H x 6°V field of view, 1.5m focus distance
  • IFOV with optional wide-angle smart lens is 1.85mRad, 68°H x 48°V field of view, 15cm focus distance
  • 2x and 4x digital zoom, LED light, laser pointer
  • 5MP built-in digital camera, 5.7inch LCD display
  • Smooth auto and manual scaling
  • Fluke Connect app compatible, Fluke Connect assets optional software, Fluke Connect instant upload
   Specification:
  • Temperature Min: 0.05°C
  • Temperature Max: 30°C
  • IR Resolution: 640 x 480
  • Thermal Sensitivity (NETD): 0.05°C
  • Field of View (H x V): 34° x 24°
  • IR Focus Distance Min: 15cm
  • Image Capture Frequency: 9Hz







Features

Brand:
Fluke
Color:
Yellow
Conditions:
New
Warranty:
2 Years
