Home Networking Power FHD MTP-24 to LC, Type A Fiber Optic Cassettes Duplex, 24 Fibers (Aqua)

FHD MTP-24 to LC, Type A Fiber Optic Cassettes Duplex, 24 Fibers (Aqua)


Brand:
No Brand

Specifications

        Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: No Brand
        Specifications:
  • Fiber Count: 24 Fibers
  • Fiber Mode: OM4 50/125µm

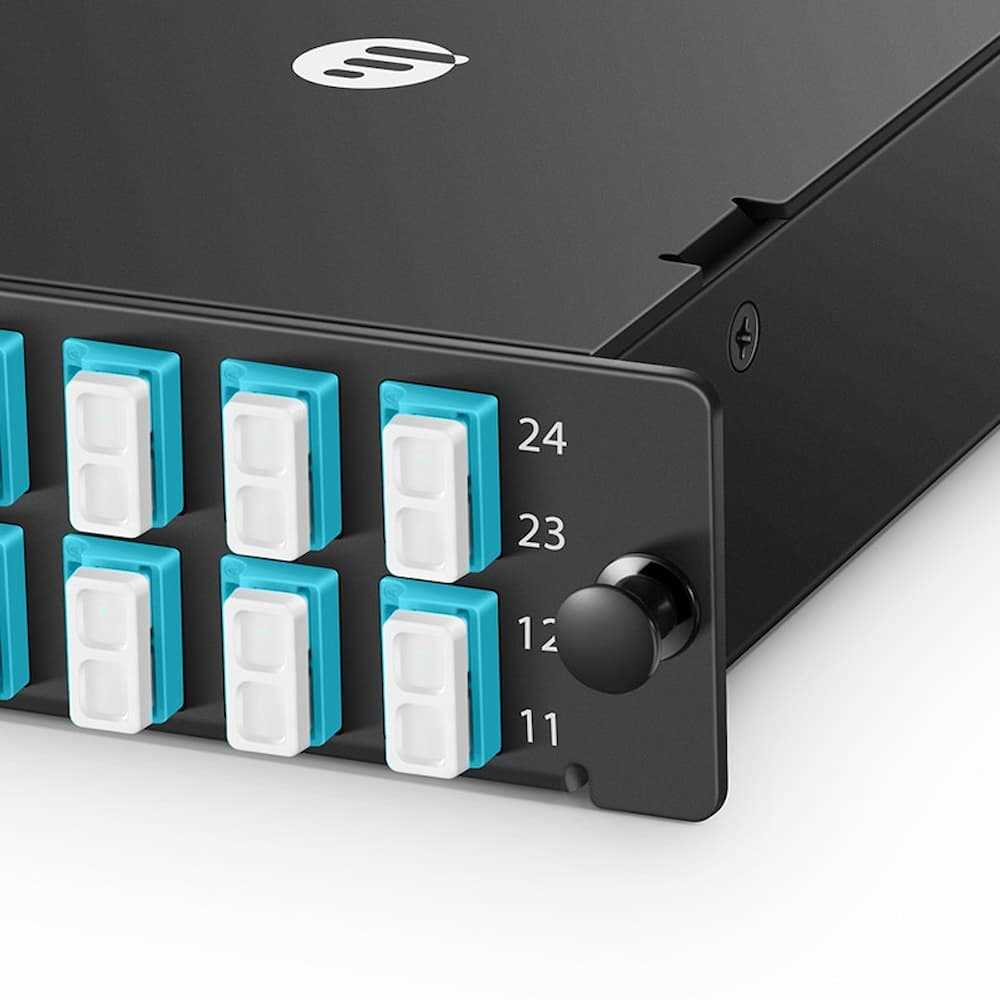

  • Front Connector Type: LC UPC Duplex (Aqua)
  • Number of LC Port: 12 Ports

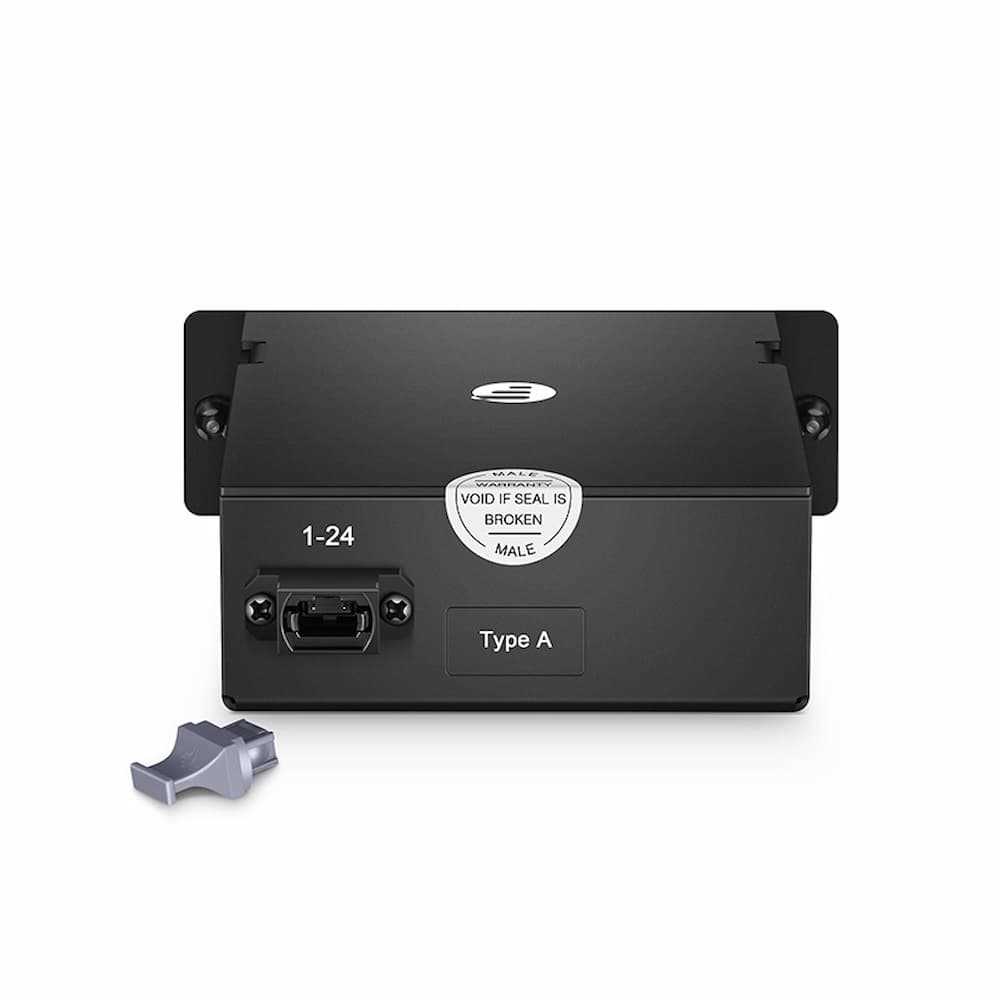

  • Rear Connector Type: US Conec MTP® UPC (Pinned)
  • Number of MTP® Port: 1 Port
  • MTP Adapter: Key Up to Key Down
  • Housing Type: Cassette
  • Material of Sleeve: Zirconia Ceramic
  • Material of Cassette Body: Aluminium (AL5052)
  • Polarity: Type A
  • Insertion Loss: MTP=0.35dB, LC=0.2dB
  • Return Loss: MTP=20dB, LC=30dB
  • Standard: RoHS Compliant
  • Application: Matching for FHD Series Enclosures

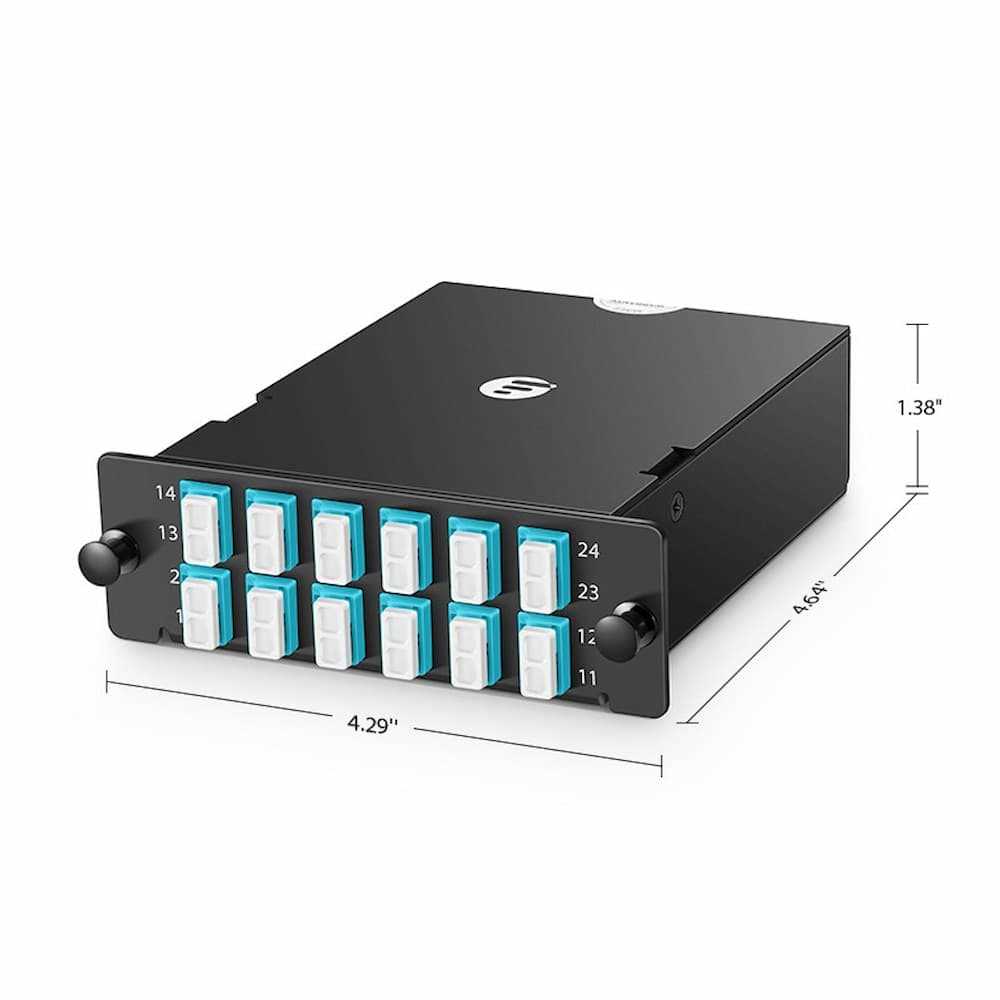

  • Dimensions (HxWxD): 1.38''x4.29''x4.64'' (35x109x118mm)














Features

Brand:
No Brand
Conditions:
New
Warranty:
1 Year
