Home Networking Power FHD 3x MTP-12 to LC, Type A, 36 Fibers Optic Cassettes Duplex, OM4 Multimode (Aqua)

FHD 3x MTP-12 to LC, Type A, 36 Fibers Optic Cassettes Duplex, OM4 Multimode (Aqua)


Brand:

Specifications

        Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: No Brand
  • Color: Aqua
        Specifications:
  • Fiber Count: 36 Fibers
  • Fiber Mode: OM4 50/125µm

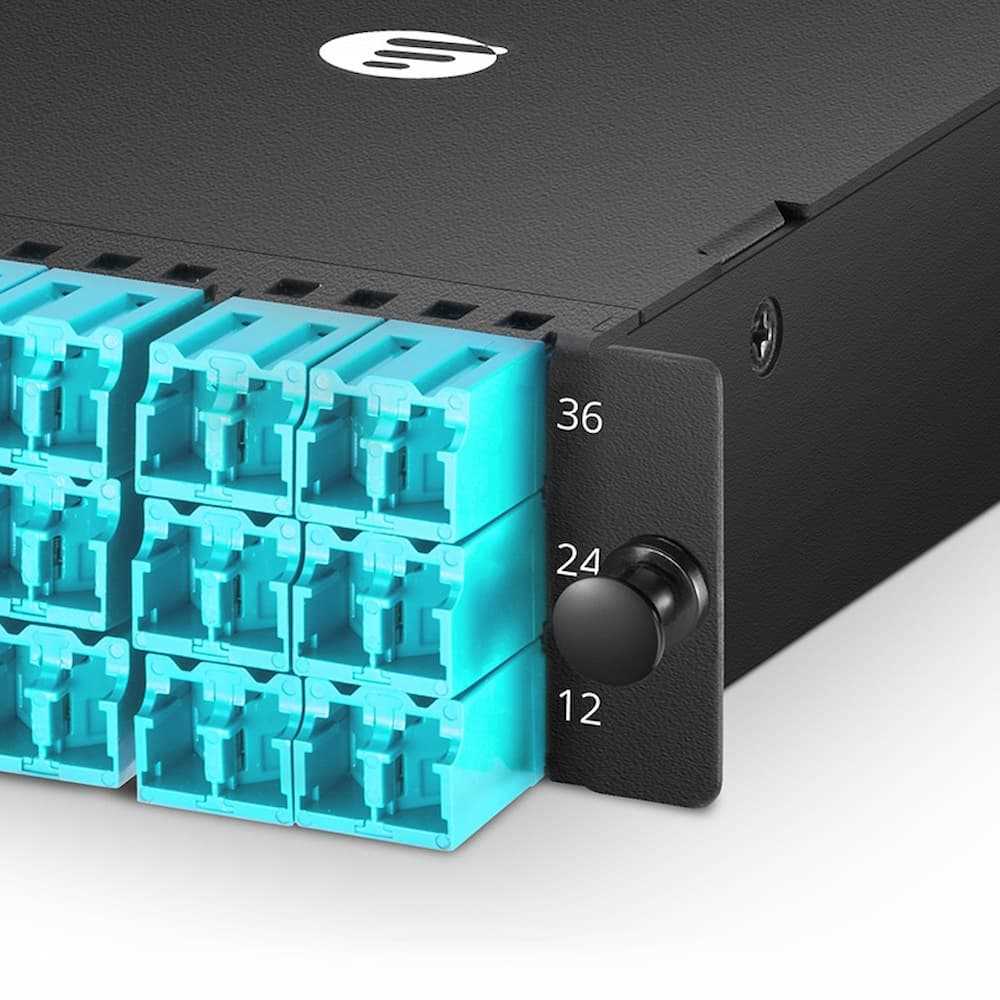

  • Front Connector Type: Shuttered LC Duplex (Aqua)
  • Number of LC Port: 18 Ports

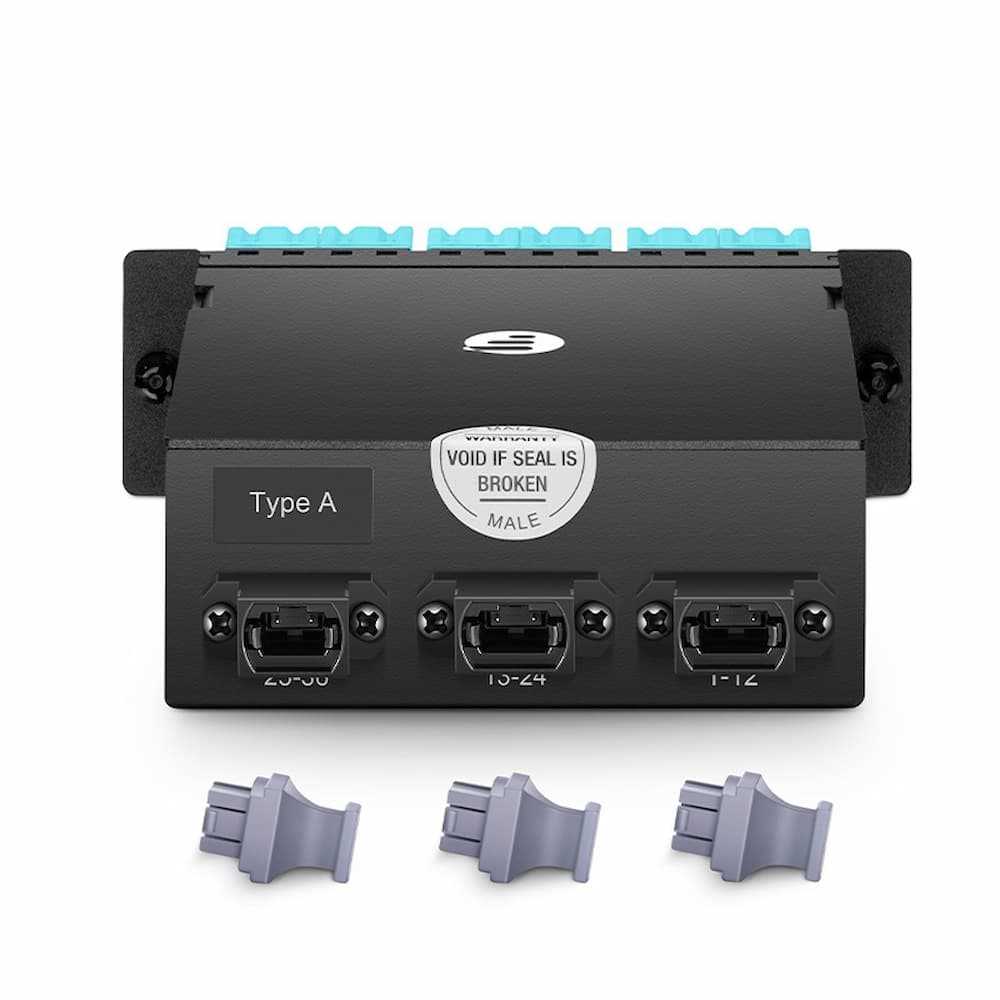

  • Rear Connector Type: US Conec MTP® UPC (Pinned)
  • Number of MTP® Port: 3 Ports
  • MTP Adapter: Key Up to Key Down
  • Housing Type: Cassette
  • Material of Sleeve: Zirconia Ceramic
  • Material of Cassette Body: Aluminium (AL5052)

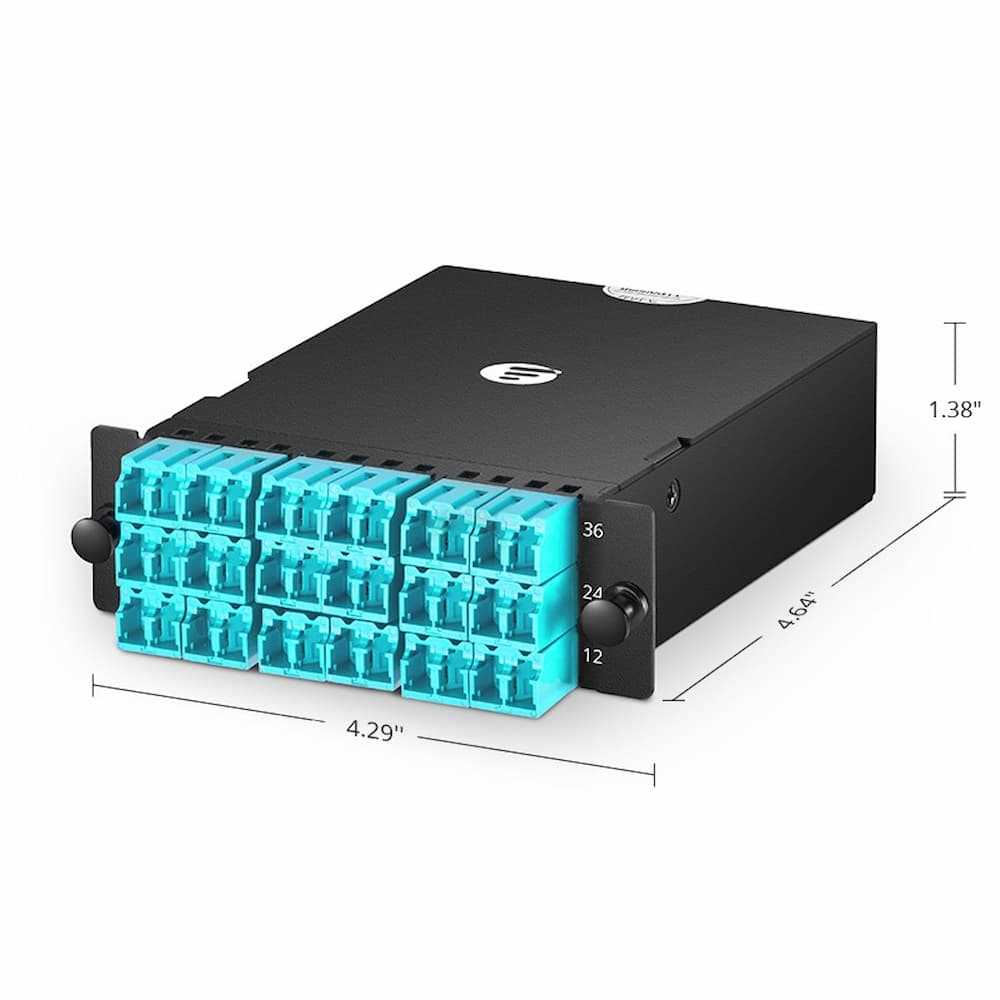

  • Dimensions (HxWxD): 1.38''x4.29''x4.64'' (35x109x118mm)
  • Insertion Loss: MTP=0.35dB, LC=0.2dB
  • Return Loss: MTP=20dB, LC=30dB
  • Standard: RoHS Compliant
  • Application: Matching for FHD Series Enclosures














Features

Brand:
No Brand
Conditions:
New
Warranty:
1 Year
