Home Switching Industrial Ethernet Switches Extreme Networks 16404 X460-48P | 48-Port PoE+ Gigabit Switch with 4x SFP Uplinks, 2x Module Slots | 224Gbps Switching | 750W PSU Included

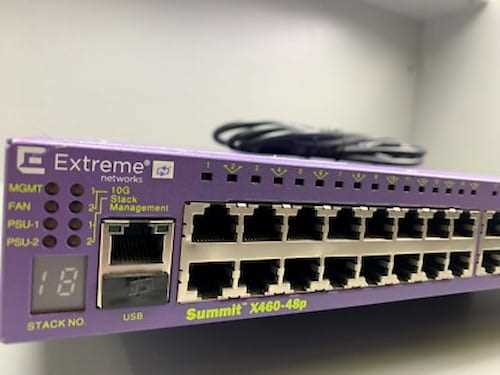

Extreme Networks 16404 X460-48P | 48-Port PoE+ Gigabit Switch with 4x SFP Uplinks, 2x Module Slots | 224Gbps Switching | 750W PSU Included


Brand:

Specifications

      Product Description:
  • Maximize network scalability and performance with the Extreme Networks X460-48P 16404 Gigabit Ethernet PoE+ Switch, a modular, high-density Layer 3 switch engineered for enterprise-class deployments and campus edge environments.
  • Equipped with 48x PoE+ Gigabit RJ45 ports, this switch powers devices like IP phones, access points, and cameras directly through the Ethernet cable. The 4x dedicated 1G SFP uplink ports provide high-speed fiber connectivity for flexible network architecture.
  • This model includes 2 expansion slots — one for stacking and one for optional 10GbE uplinks via modules like the XGM3-2SF (SFP+), XGM3S-2xf (XFP), or XGM3S-2sf (SFP+), delivering the throughput and redundancy enterprise networks demand.
  • Switching Capacity: 224 Gbps
  • Forwarding Rate: 166.7 Mpps
  • PoE Budget: 380W with one PSU (expandable to 760W with second PSU)
  • Redundant PSU Support: 2x PSU slots (1x 750W AC PSU included)
  • Cooling: 1x Fan Module Included
  • Management: DB9 Console, Fast Ethernet Mgmt, USB Port
  • MAC Table: 32,000 entries for high device density
  • Stacking Support: Optional SummitStack modules (up to 80Gbps)
  • Model: X460-48P
  • Part Number: 16404
  • UPC: 644728164042

      Key Features:
  • 48x 10/100/1000BASE-T PoE+ Ports
  • 4x 1G SFP Uplink Ports
  • Modular Design: 2 Expansion Slots (Stacking + Uplink)
  • Supports 10G Expansion via XGM3 Modules
  • Enterprise Layer 3 Features: VLAN, QoS, ACLs
  • Redundant PSU Support & Hot-Swappable Fan
  • 224Gbps Switching Fabric & 166.7Mpps Forwarding
  • High Power PoE Budget up to 760W
  • USB, Console, and Ethernet Management Interfaces
  • Perfect for high-density edge environments or growing networks

Features

Brand:
Extreme
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
644728164042
Warranty:
1 Year
