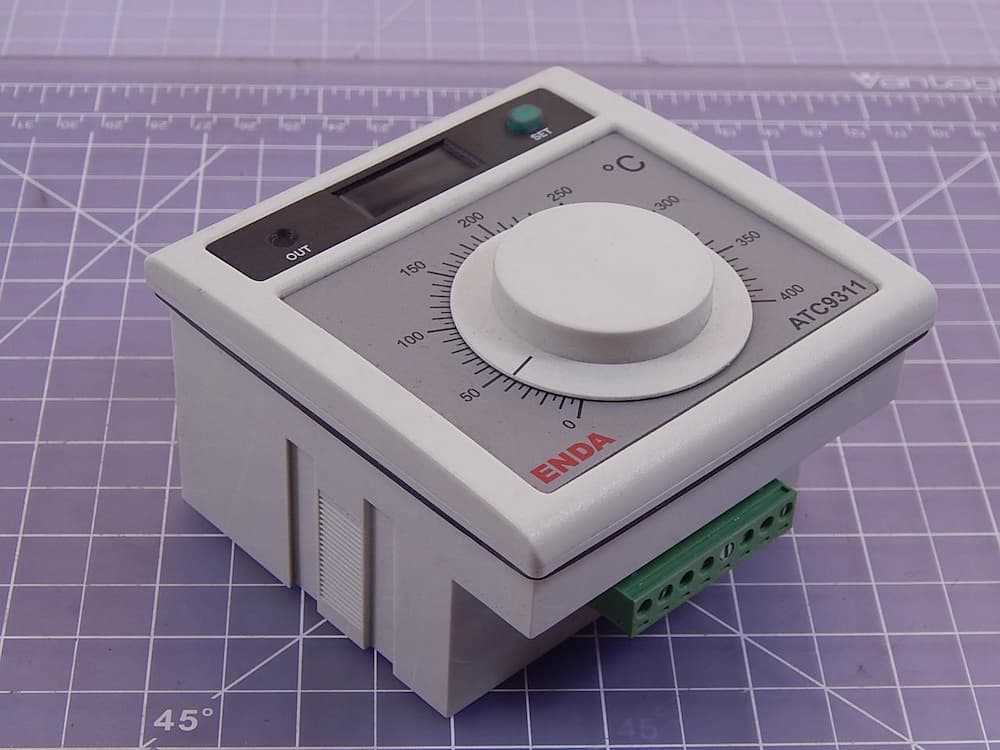

Enda ATC9311 Analogue Temperature Controller


Brand:

Specifications

        Product Details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: Enda
  • Model: ATC9311
        Features:
  • Digital display for measured temperature and set value
  • Selectable On-Off or time proportional control
  • Fe-Const thermocouple or NiCr-Ni thermocouple input
  • In the case of sensor failure, control output will be disable
  • Easy setting procedure
  • CE marked according to European Norms
        Specification:
  • Process Value Display: 3 digit, 7.62 mm, 7 red LED
  • Keyboard: Micro switch
  • Out Led: 1 digit red output LED
        Box:
  • Weight: Approx. 250g (after packing)
  • Mounting Method: Suitable for flush-panel mounting
  • Dimensions: 96x96x50 mm
  • Electrical Characteristics:
  • Supply Voltage: 230Vac +%10 -%20, 50/60Hz
  • Temperature Range: 0...400 °C
  • Sensor input: Type J or K thermocouple
  • Connection: 2.5mm² screw-terminal connections
  • Working Temperature °C: 0...50 °C
  • Storage Temperature °C: 0...50 °C
        Outputs:
  • Control Output: 1 relay: 250Vac, 2A (resistive load), NO+NC or
  • Voltage supply: 220-240 VAC 50/60 Hz
  • Signal Input Type: Type K




Features

Brand:
Enda
Conditions:
New
Warranty:
No Warranty
