Home Networking Cameras & Surveillance Elmo P10 XGA Visualiser Document Camera (White)

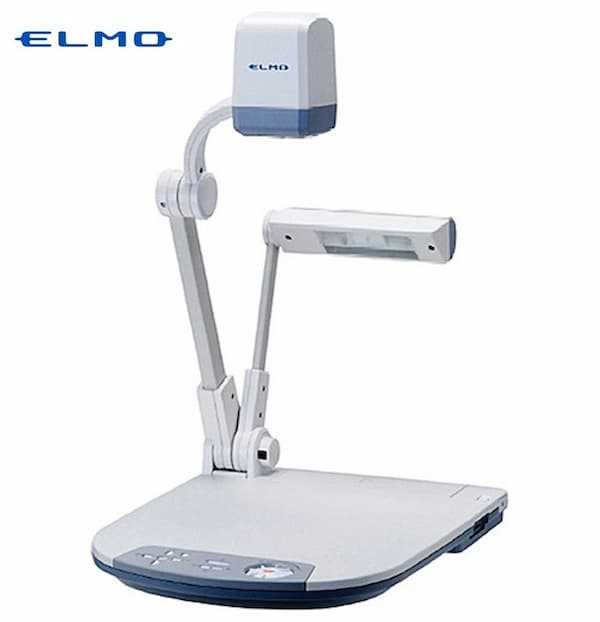

Elmo P10 XGA Visualiser Document Camera (White)


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Elmo
  • Model: P10
   Key Features:
  • 1.49 MP CMOS Chip / 48x Zoom Lens
  • Detailed 16x Optical/8x Digital Zoom
  • 1/3 Inches Progressive Scan CCD
  • 30 fps Full-motion Video
  • XGA/SXGA/WXGA Resolutions
  • Free-angle Camera Arm
  • Twin Fluorescent Lamps
  • Built-in SD Memory Card
  • Lightweight (10.4 lb / 4.7 kg)
  • Image Mate Software (Optional)
   Technical Specifications:
   Camera:

  • Image pickup device: 1/3 Inches progressive scan CCD
  • Total pixels: 1,077 (H) x 788 (V), 850,000 pixels
  • Effective pixels: 1,034 (H) x 779 (V)
  • Frame rate: 20 fps
   Resolution:
  • RGB output: 600 (H) x 600 (V) TV lines
  • Video output 450 (H) TV lines
  • Optics: Zoom Powered (with variable speed function), 12X optical, 4X digital
  • Lens: F2.8, f=4.7 to 56.4mm
   Shooting area:
  • Max. 405 x 303mm
  • Min. 36.5 x 28mm
   Focus: Auto/Manual (powered):
  • Iris: Auto (with level adjustment)/Manual
   Functions:
  • White balance: Full-auto/One-push/Manual
  • Negative/positive conversion
   Aperture enhancement:
  • Text mode
  • Edge enhancement
  • Color/B&W selection
  • Pause mode
  • Gamma adjustment
   OSD (on-screen display):
  • Split display (SD Memory Card image, 9-split, 16-split)
  • Image save (onto SD Memory Card)
  • Image rotation (0°, 180°)
  • State presetting: Up to 6 user settings
  • Sync. system: Internal
  • Video Input: RGB x1 (XGA 1024 x 768)
  • Video Output: DVI x1
  • Composite x1 (RCA)
  • Control Connector: RS-232C
  • USB Port: Provided
  • Card Slot: SD card slot
  • Lighting: Upper lighting unit: twin fluorescent lamp
  • Dimensions: Setup: 14.8 x 19 x 23 Inches (377 x 42 x 582mm)
  • Folded: 14.8 x 19 x 7.1 Inches (377 x 482 x 180mm)
  • Weight: 10.4 lbs (4.7kg)
  • Power Source: AC 100 to 240V, 50/60 Hz
   Packaging Info:
  • Package Weight: 19.6 lb
  • Box Dimensions (LxWxH): 24.5 x 19.5 x 12 Inches

Features

Brand:
Elmo
Color:
White
Conditions:
New
Warranty:
1 Year
