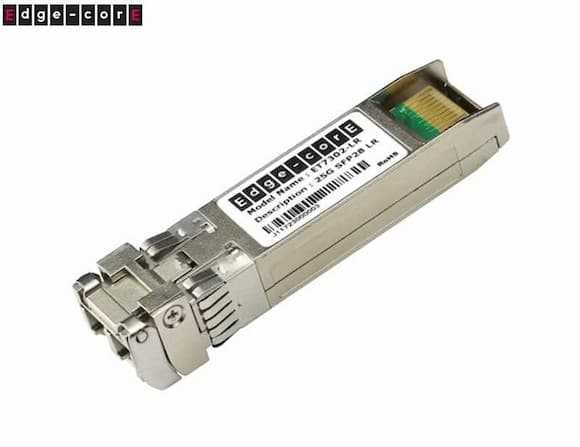

Edge-Core ET7302-LR 25G SFP28 LR 1310nm 10km LC SMF DDM Transceiver Module (Silver)


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Edge-Core
  • Model: ET7302-LR
   Description
  • The EdgeCore ET7302-LR Compatible 25G SFP28 LR Transceiver Module is a high-performance optical transceiver designed for data transmission over Singlemode Fiber (SMF) using a 1310nm wavelength. Below is a summary of the key specifications and features:
   Features
  • Compatible with CPRI option10 24.33Gbps and 25GBASE 25.78Gbps
  • Up to 10km transmission on SMF
  • 1310nm DML laser transmitter
  • SFP28 MSA compliant
  • Built-in digital diagnostic functions
  • Single +3.3V power supply
  • Compatible with RoHS
  • Real-Time Digital Diagnostic Monitoring
   Specifications
  • Data Rate: Supports 25.78 Gbps bi-directional data links.
  • Transmission Range: Capable of reaching up to 10 kilometers over Singlemode Fiber (SMF).
  • Wavelength: Operates at a 1310nm wavelength with a DML (Direct Modulation Laser) transmitter.
  • Power Consumption: Consumes less than 3.3W, making it efficient.
  • Interface: Duplex LC optical interface.
   Compliance:
  • Compatible with SFP28 MSA (Multi-Source Agreement).
  • Fully compliant with standards like IEEE 802.3ba, SFF-8402, and SFF-8432.
  • Compliant with RoHS, ensuring it meets environmental standards.
  • SFF-8472 for Digital Diagnostic Monitoring (DDM) via a 2-wire interface (I2C).
  • Temperature Range: Commercial operating temperature range of 0°C to 70°C (32°F to 158°F).
   Transmitter and Receiver:
  • Transmitter: 1310nm DML (Direct Modulation Laser).
  • Receiver: PIN photo-detector.
  • TX Power: -4.5~+2.5 dBm.
  • Receiver Sensitivity: < -11.4 dBm.
   Form Factor and Performance:
  • Form Factor: SFP28 (Small Form-factor Pluggable 28).
  • Connector: Duplex LC.
  • Cable Type: Single mode Fiber (SMF).
  • Protocols: MSA Compliant.
  • Diagnostic Monitoring: Real-time Digital Diagnostic Monitoring supported.


Features

Brand:
Edge-Core
Color:
Silver
Conditions:
New
Warranty:
1 Year
