Home Networking Power UPS Systems Eaton 9PX2200IRT2U 9PX 2200i UPS 2200VA, 2200 W, C19 Rack/Tower (9103-73784)- Black

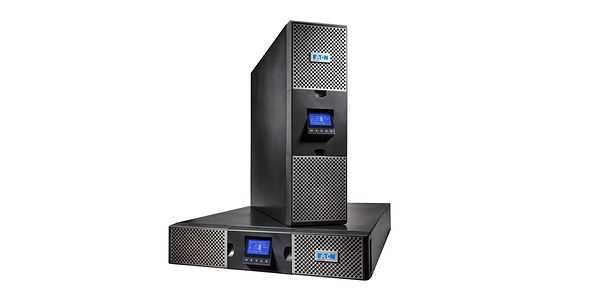

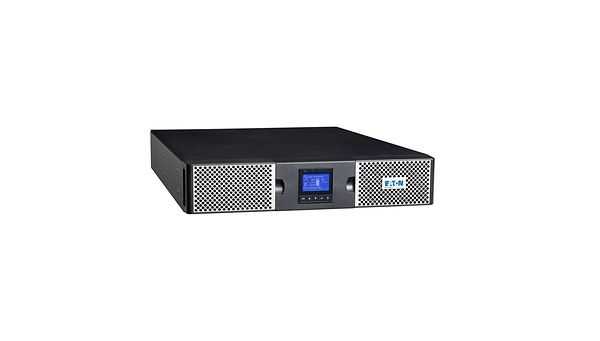

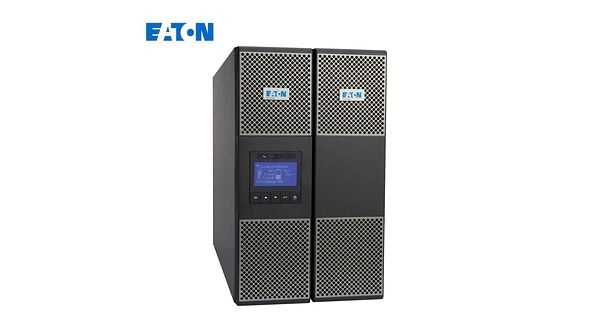

Eaton 9PX2200IRT2U 9PX 2200i UPS 2200VA, 2200 W, C19 Rack/Tower (9103-73784)- Black


Brand:

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: Eaton
  • Model: 9PX2200IRT2U
   Specifications
  • Length/depth: 60.5 Cm
  • Height: 8.65 Cm
  • Width: 44 Cm
  • Weight: 25.02 Kg
   Compliances:
  • Ce Marked
  • Culus Listed
  • Csa 22.2
  • Fcc Part 15 Class B
  • Cispr22 Class B
   Certifications
  • Culus Listed
  • Eac
  • Ce
  • Energy Star Certified
  • Iec/en 62040-1
  • Ul 1778
  • Iec/en 62040-2
  • Battery
  • Runtime Graph
  • View Runtime Graph
   Battery Management
  • Runtime Graph: View Runtime Graph
  • Battery Management: Abm & Temperature Compensated Charging Method (User Selectable)
  • Automatic Battery Test
  • Deep Discharge Protection
  • Automatic Recognition Of External Battery Units
  • Battery Replacement: Hot-swappable Internal Batteries And Extended Battery Modules (Ebms)
  • Battery Quantity: 6
  • Battery Rating: 12 V / 7 Ah
  • Battery Type: Sealed, Lead-acid
  • Extended Battery Capability: Yes
   Electrical Output
  • Receptacle: (8) C13, (2) C19
  • Topology: Online/double-conversion
  • Wattage: 2200 W
  • VA Rating: 2200 VA
  • Output Waveform: Sine Wave
  • Voltage: 230v
  • Output Power Factor?: 1
  • Output Nominal Voltage: 230v Default (200/208/220/230/240v)
  • Output Voltage Range: 200/208/220/230/240 V +/- 1%
  • Voltage Distortion Output (Linear Load) - Max: 3
  • Output Frequency: 50/60 Hz
  • Feed Type: 1
   Electrical Input
  • Input Connection: C20 C20
  • Input Cord Length: 1.8m
  • Input Nominal Voltage: 230v Default (200/208/220/230/240v)
  • Input Voltage Range: 176-276 V (100-276 V With Derating)
  • Nominal Frequency: 50/60 Hz
  • Input Frequency Range: 40-70 Hz
  • Input Power Factor: >.99
   Environmental
  • Altitude: 3000 M
  • Btu Rating: Online: 488
  • Noise Level: <40 Db At 1 Meter
  • Relative Humidity:; 0-96% Non-condensing
  • Temperature Range: 0° To 40°c (32° To 104°f)



Features

Brand:
Eaton
Color:
Black
Conditions:
New
Warranty:
3 Years
