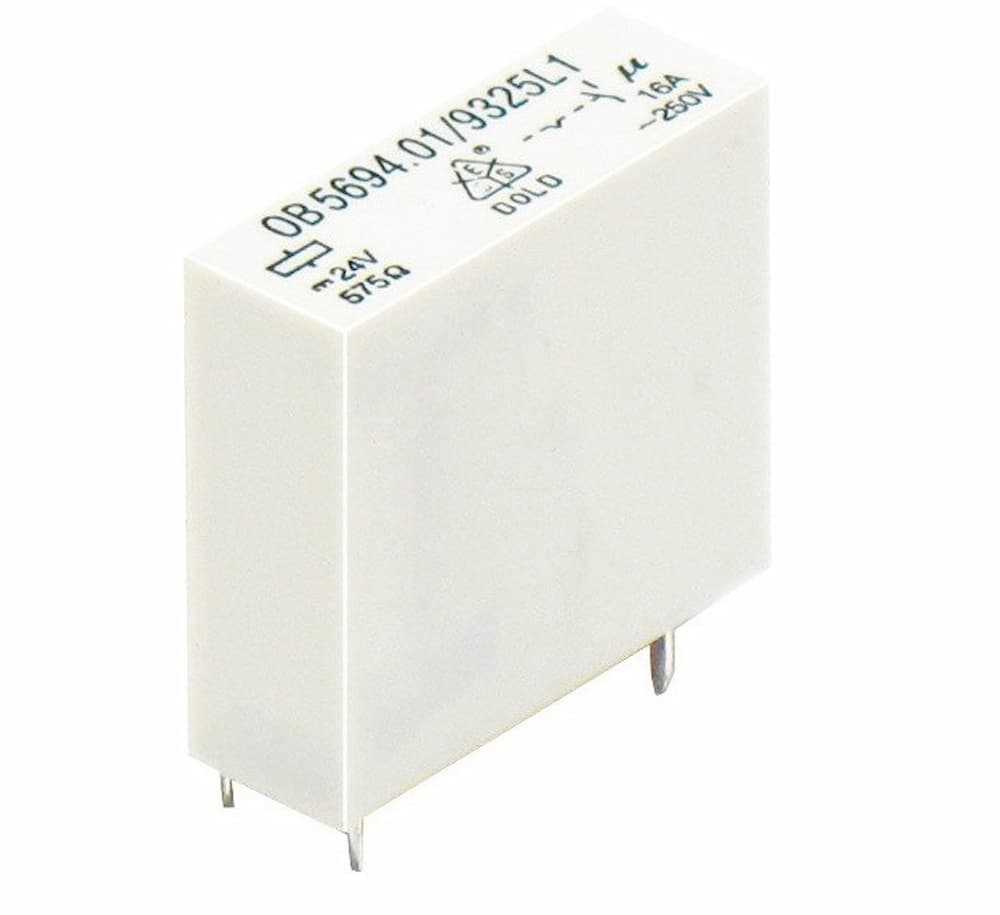

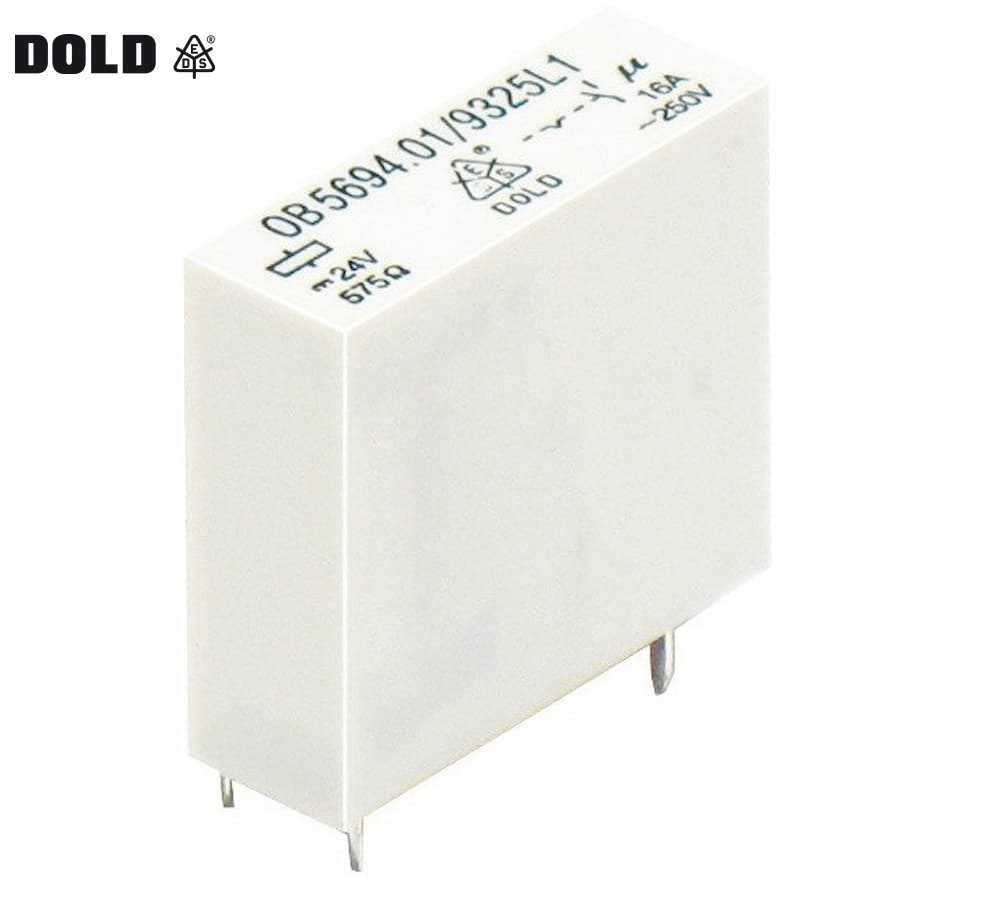

Dold OB 5694 Printed Circuit Board Relay Bistable


Brand:

Specifications

         Product Details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: Dold
  • Model: OA 5603/39
        Features:
  • According to DIN EN 61810-1, IEC/EN 60669-1
  • Switching reliability according to IEC/EN 60669-2-2
  • Safe separation according to IEC/EN 61140, IEC/EN 60335
  • OB 5693: horizontal model
  • OB 5694: vertical model
  • Bistable, mechanical latching of contact
  • For impulse operation, at failure operation 100 % ED possible
  • Same pulse (energy and direction) for both switching positions
  • AC and DC - model
  • Patent on function principle
  • On request wash proof
        Specification:
  • Contact equipping: 1
  • Continuous current: 16 A
  • Nominal voltage: AC 12 - 230 V, DC 6 - 110 V
  • Voltage Range UN: 0,8 - 1,1
  • Protection type: RT II (flux-proof relay), optional RT III (wash-tight)
  • Size L x W x H: 28 x 10 x 26 mm
  • Test voltage (AC) contact set - coil: = 4 kV eff
  • Type of relay: Bistable
  • Temperature range (- / +): -40 - 75 °C
  • Contact material: AgSnO2, AgNi
  • Clearance and creepage distances, contact set - coil =: 8 mm
  • Relay type: OB 5694



Features

Brand:
Dold
Conditions:
New
Warranty:
No Warranty
