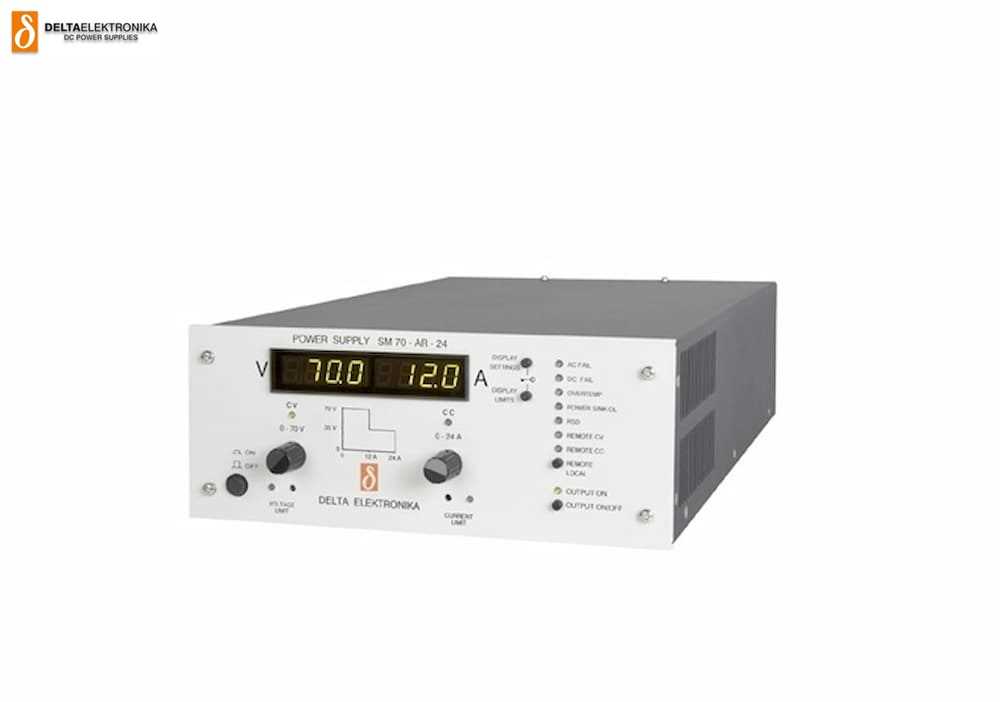

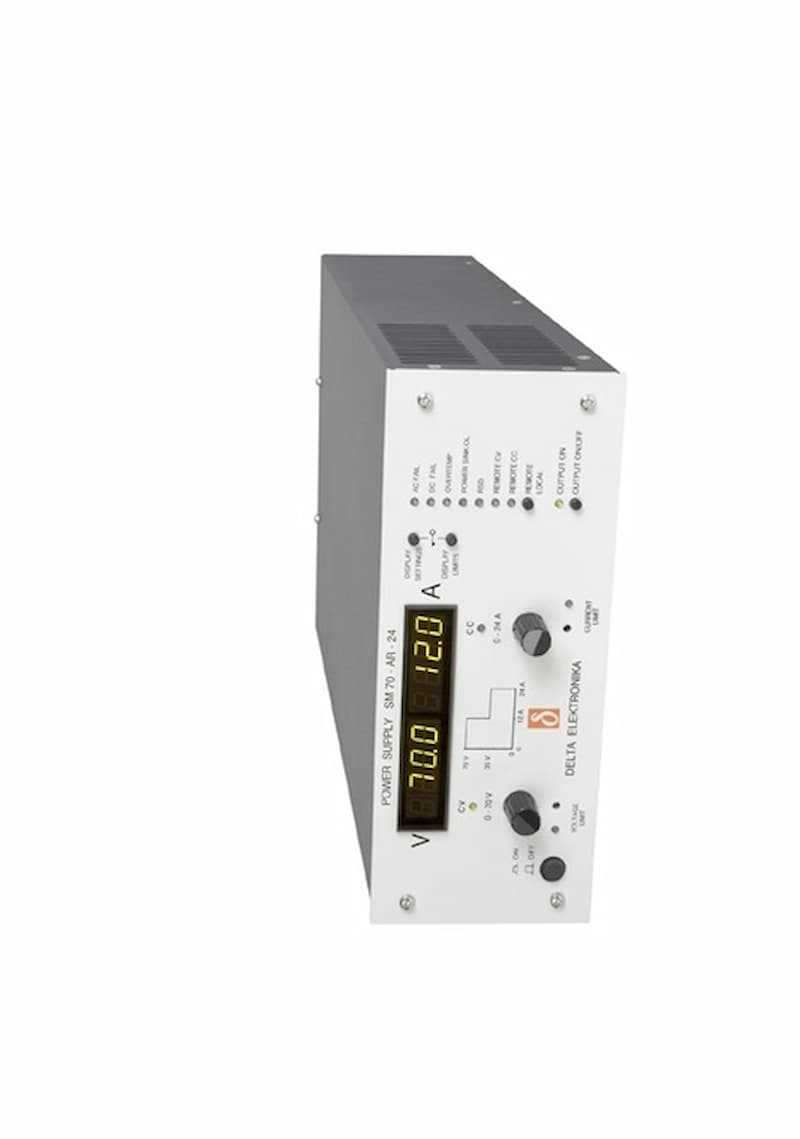

Delta Elektronika SM 800W Power Supply


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Delta Elektronika
  • Model: SM 800W
      Specifications:
  • Single phase input: 90-265 V AC (48-62 Hz)
  • Active Power Factor Correction (PFC): 0.99 (at 100% load)
  • Efficiency: up to 89% (at full load)
  • Output ripple and spikes: from 2 mVrms / 8 mVpp
  • Regulation: from 0.2 mV (0-100% load step)
  • Recovery time: from 100 µs (50-100% load step)
  • Programming speed: from 4 ms (10-90%),optional from 0.2 ms
  • Analog programming accuracy: from 0.2%
  • Stability output voltage andcurrent: 6.10-5 / 9.10-5
  • MTBF: 500.000 hrs
  • Operating ambient temperature: -20 to +50 °C
      Dimensions and Weight:
  • Width: half 19"
  • Height: 2 U
  • Depth: 406 mm
  • Weight: 5.4 kg





Features

Brand:
Delta Elektronika
Conditions:
New
Warranty:
1Year
