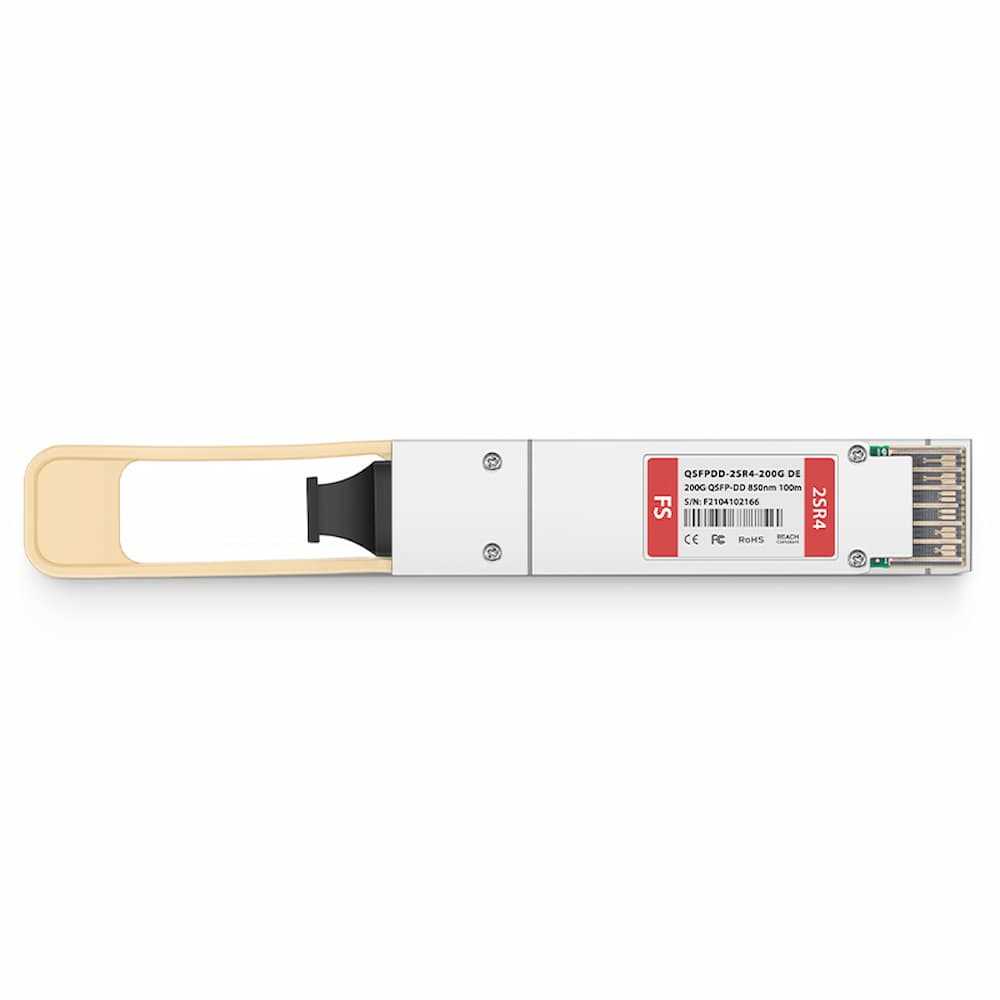

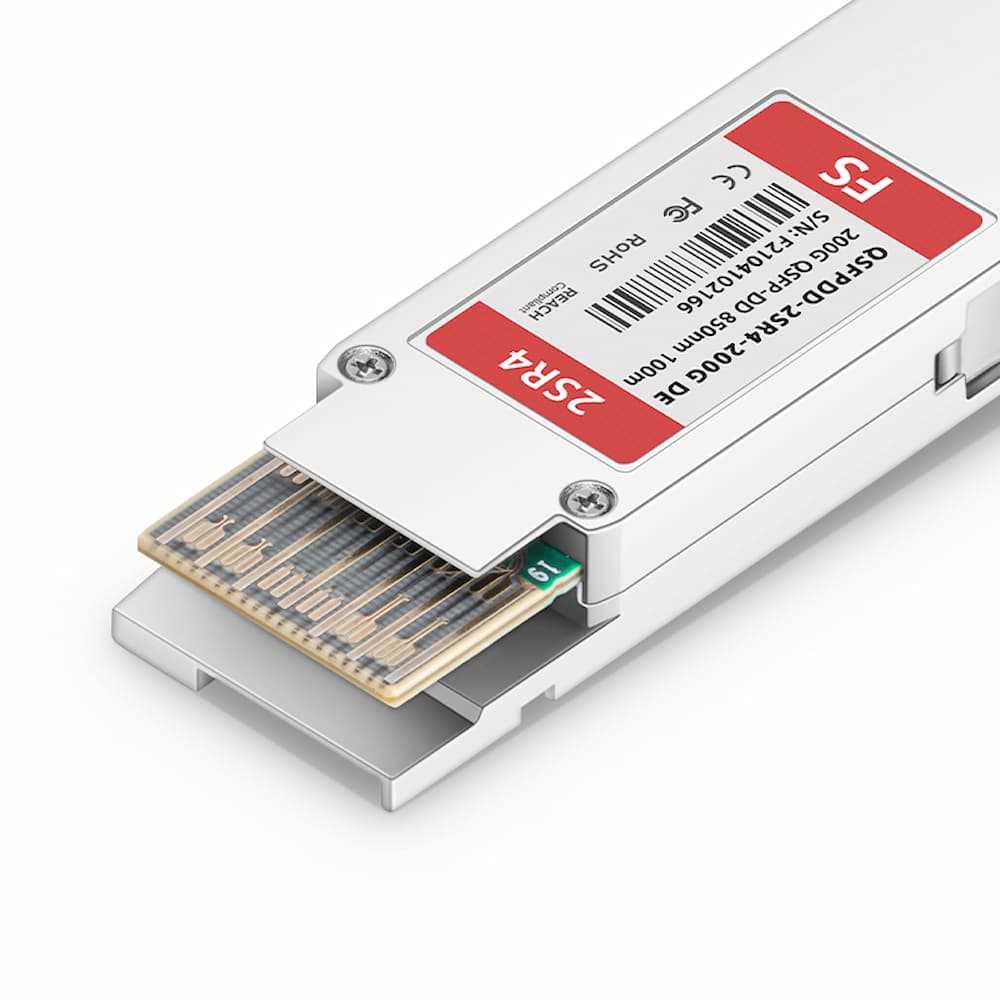

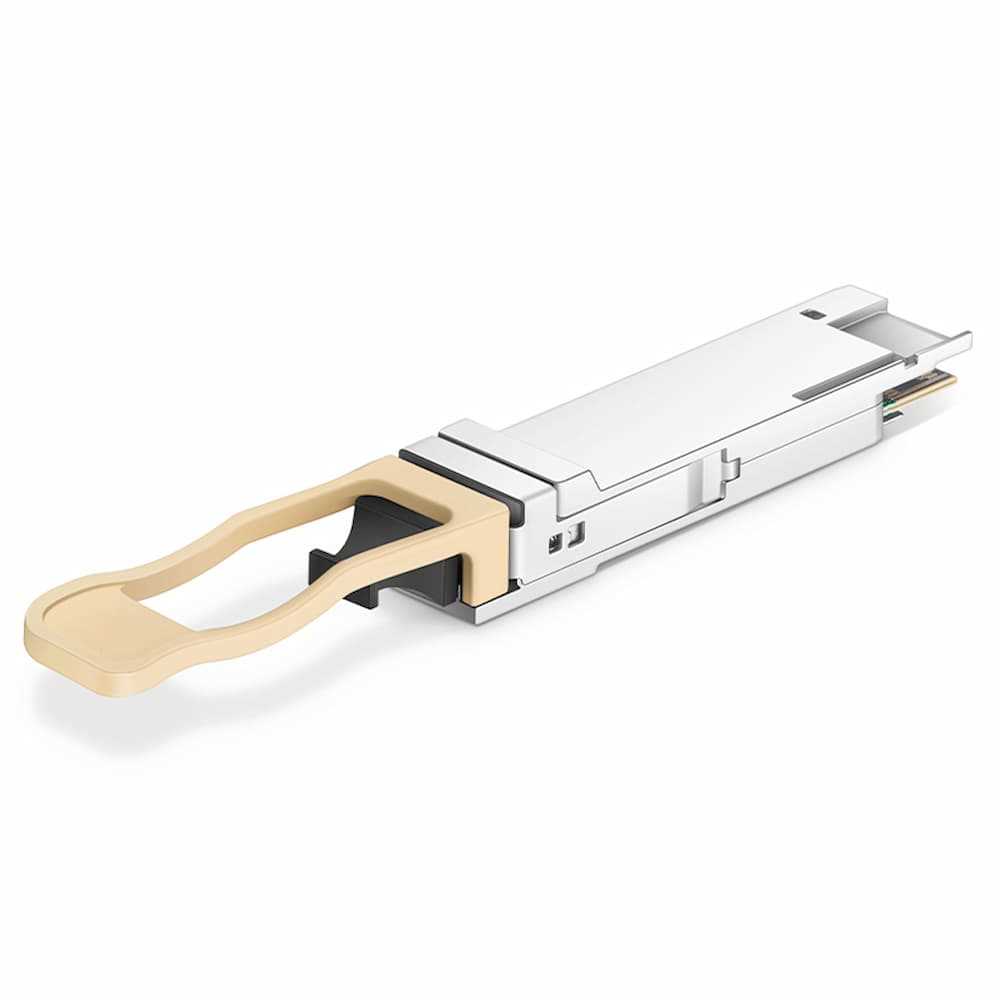

Dell Q28DD-200G-2SR4 Compatible 200GBASE-2SR4 QSFP-DD 850nm 100m DOM MTP/MPO-24 MMF Optical Transceiver Module


Brand:
No Brand

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
      Specification:
  • Form Factor: QSFP-DD
  • Wavelength: 850nm
  • Connector: MTP/MPO-24
  • Transmitter Type: VCSEL
  • TX Power: -8.4~2.4dBm
  • Powerbudget: 1.9dB
  • Power Consumption: =4.5W
  • DDM/DOM: Supported
  • Max Data Rate: 206.24Gbps(8x 25.78Gbps)
  • Max Cable Distance: 100m
  • Media: MMF
  • Receiver Sensitivity: <-10.3dBm
  • Extinction Ratio: >2dB
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
      Highlights:
  • Max. Power Consumption 4.5W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Hot Pluggable QSFP-DD Form Factor
  • High-speed Electrical Compliant to IEEE 802.3bs
  • Compliant with QSFPDD MSA CMIS V4.0
  • Support 2x100G Breakout for Higher Port Density and Easy Migration to 200G Platforms
  • 8x25G NRZ Retimed 200GAUI-8 Electrical Interface
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
  • Class 1 FDA Laser Safety


Features

Brand:
No Brand
Conditions:
New
Warranty:
1 Year
