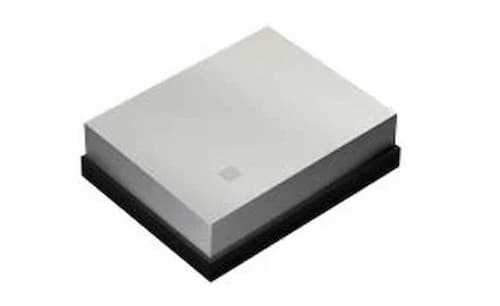

D6DA1G842K2C7-Z SAW Duplexer, LTE Band 3, 1.8X1.4 MM Electronic Components


Brand:
No Brand

Specifications

   Product details:
  • Brand: No Brand
  • Warranty: No Warranty
   Specifications
  • System: LTE
  • Type: SAW
  • Function: Duplexer
  • Insertion Loss (typ): 1.8/1.9 dB
  • Isolation (typ): 60/56 dB
  • Input Power (max): +29.5dBm
  • Operating Temp. Range: -30 to +85
  • RoHS Compliance (10 subst.): Yes
  • REACH Compliance (209 subst.): Yes
  • Halogen Free: Yes
  • Soldering: Reflow
   External Dimensions
  • Dimension: L 1.8 + 0/- 0.20 mm
  • Dimension: W 1.4 + 0/- 0.20 mm
  • Dimension: T Max 0.38 mmExternal Dimensions
  • Dimension: L 1.8 + 0/- 0.20 mm
  • Dimension: W 1.4 + 0/- 0.20 mm
  • Dimension: T Max 0.38 mm
   Features
   Item Summary-

  • SAW, Duplexer, 1.8x1.4x0.38mm
  • Band 3
   Lifecycle Stage-
  • Mass Production (Preferred)
   Standard packaging quantity (minimum)-
  • Taping Embossed 15000pcsFeatures

Features

Brand:
No Brand
Color:
Silver & Black
Conditions:
New
Warranty:
No Warranty
