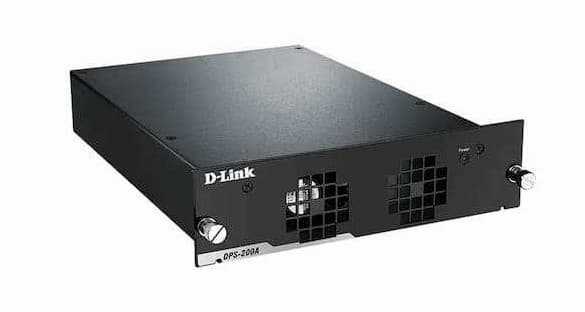

D-Link DPS-200A Modular Redundant Power Supplies - Black


Brand:

Specifications

   Product Details:
  • 1 Year Warranty
  • Brand: D-Link
  • Model: DPS-200A
   Key Features:
   Redundant Power Protection:

  • Connect to a variety of D-Link Gigabit switches
  • Provide backup power for switch’s built-in power supply
  • Over-current protection
  • LED status indicators
   Flexible Deployment Options:
  • Can be installed as stand-alone power supply units or mounted in a 19-inch multi-slot chassis
  • Hot swappable when installed in a chassis
  • Solid metal case housing
   Compatible Products:
  • DGS-3000-10TC1
  • DGS-3120-24TC
  • DGS-3120-24SC
  • DWS-3160-24TC
   Specification:
  • Input Voltage Range: 90 to 264 V AC
  • Input Frequency: 47 to 63 Hz
  • Max Input Current: 1A at 240 V AC
  • Max Inrush Current: 60 A at 230 V AC
  • Efficiency: 75 %
  • Operating Temperature: 0 to 50 °C (32 to 122 °F)
  • Storage Temperature: -45 to 85 °C (-49 to 185 °F)
  • Operating Humidity: 10 to 90% RH
  • Storage Humidity: 10 to 95% RH
  • MTBF: 400,000 hours
  • Dimensions: 172 x 257 x 43 mm (6.8 x 10.1 x 1.7 inches)
  • Panel size: 196 x 52 mm (7.7 x 2.04 inches)
  • Weight: 1.51 kg


Features

Brand:
Dlink
Warranty:
1 Year
