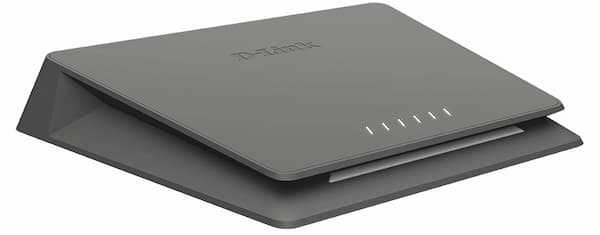

D-Link DMS-106XT 6-Port 2.5G Multi-Gigabit Switch

• Wi-Fi 6 Network Expansion: Connect compatible Wi-Fi 6 routers or access points to the 2.5 Gbps ports to help reduce wired-network bottlenecks.
• NAS and File Storage: Connect a compatible 10G Ethernet NAS to the multi-gigabit port for high-speed local file access.
• Small Business Networks: Connect workstations and other Ethernet devices in a compact office network.
• Home Office Connectivity: Provide multi-gigabit wired connections for compatible computers, routers and storage devices.
• Gaming Setups: Use Turbo Mode and supported QoS features to help prioritize suitable network traffic.
• Media and Video Streaming: Connect compatible wired devices in a home or office media environment.
• Multimedia Workstations: Support local network transfers involving compatible high-bandwidth devices and storage systems.
• Quiet Workspaces: Deploy the fanless switch where operating noise should be minimized.

• Six Multi-Gigabit Ethernet Ports: Provides five ports supporting speeds up to 2.5 Gbps and one port supporting up to 10 Gbps — connects compatible network devices at different multi-gigabit speeds.
• 10GBASE-T Port: Supports 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps and 10 Gbps — offers a high-speed connection for compatible NAS devices or network uplinks.
• Unmanaged Plug-and-Play Design: Operates without requiring switch configuration — simplifies installation in home and office networks.
• Smart Turbo Mode: Provides performance-oriented operation with port-based QoS and multicast functionality as described by the manufacturer — helps prioritize supported latency-sensitive applications.
• Port-Based QoS: Supports IEEE 802.1p QoS and port-based prioritization features — helps manage traffic priorities for supported applications.
• Fanless Cooling: Uses a fanless design — supports quiet operation in noise-sensitive workspaces.
• Aluminum Alloy Housing: Features a durable matte gray metal casing — provides a robust desktop enclosure.
• Energy-Efficient Ethernet: Supports IEEE 802.3az Energy-Efficient Ethernet — helps reduce power use under supported operating conditions.
• 45 Gbps Switching Capacity: Provides a 45 Gbps switching fabric — supports traffic forwarding across the switch's multi-gigabit interfaces.
• Multicoloured LED Indicator: Includes lighting to indicate Turbo Mode status — makes the operating mode easier to identify.
• Auto MDI/MDIX: Supports automatic or configurable MDI/MDIX — helps simplify Ethernet port connections.
• Store-and-Forward Switching: Uses store-and-forward transmission — checks and forwards Ethernet frames through the switching process.

• Brand: D-Link
• Model: DMS-106XT
• Hardware Version: A1
• Product Type: Unmanaged multi-gigabit Ethernet switch
• Number of Ports: 6
• Ports 1–4: 4 × 10/100/1000/2500 Mbps
• Port 5: 1 × 100/1000/2500 Mbps
• Port 6: 1 × 100/1000/2500/5000/10000 Mbps
• Main Port Type: 2.5GBASE-T Ethernet
• Uplink Port Type: 10GBASE-T
• Switching Capacity: 45 Gbps
• MAC Address Table: 4K entries
• Transmission Method: Store-and-forward
• Flow Control: IEEE 802.3x
• QoS: IEEE 802.1p
• Energy-Efficient Ethernet: IEEE 802.3az
• Supported Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an
• Media Interface Exchange: Auto or configurable MDI/MDIX
• LED Indicators: Per-port link/activity and device power; multicoloured Turbo Mode indication
• Power Input: DC 12 V / 1.5 A
• Maximum Power Consumption: 10.6 W
• Heat Dissipation: 36.17 BTU/h
• MTBF: 489,941 hours
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 70°C
• Operating Humidity: 10% to 95% RH
• Storage Humidity: 5% to 95% RH
• Dimensions: 217 × 163 × 33 mm
• Weight: 680 g
• Housing: Aluminum alloy metal casing
• Cooling: Fanless
• Form Factor: Desktop
• EMI and Compliance: CE, FCC, RCM, BSMI, VCCI, RoHS

WHY CHOOSE THIS PRODUCT?

• Multi-Gigabit Connectivity: Combines five ports supporting up to 2.5 Gbps with a port supporting up to 10 Gbps for compatible high-speed devices.
• High-Speed NAS Connectivity: The 10GBASE-T port can connect to a compatible NAS or network uplink for demanding file-transfer environments.
• Simple Deployment: Unmanaged operation enables plug-and-play installation without requiring switch configuration.
• Quiet Working Environment: Fanless construction supports silent operation in offices, home workspaces and media areas.
• Traffic Prioritization: Turbo Mode and QoS features support traffic handling for applications such as gaming and video streaming.
• Desktop-Friendly Construction: The compact metal enclosure is designed for desktop placement and does not require a fan for cooling.
