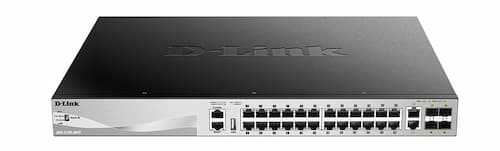

D-Link DGS-3130-30PS 30-Port Lite Layer 3 Stackable Managed PoE Switch (Black)

Monitor

Printer and Scanner

Printer Accessories

Computer Peripherals

Mounts, Stands & Racks

Desktop

Workstations

Mobiles & Tablets

Adapters & Cables

Services & Supports

Barcode Scanners & Mobile Computers

Security Software

MTP/MPO Fiber Cables

MTP/MPO Cables Custom Hot

Fiber Patch Cables

Specialty Fiber Cables

Armored Cables Hot

Industrial Cables Hot

High Density Cables

FTTA Cables

Multifiber Cables

Mode Conditioning Cables

PM Cables

Fiber Pigtails

12 Fibers Pigtails Hot

Simplex Pigtails Hot

Pigtails Custom

Fiber Optic Cleaners

Pen Cleaners Hot

Sticks

Reel Type Cleaners

Accessories

Fiber Adapters Hot

PLC Splitters Hot

Fiber Attenuators Hot

Cameras & Surveillance

Digital Cameras

Film Cameras

IP Camera - Wifi Spy Camera

Explosion Protected Camera

Network Antennas

Networking Cards

Hardware Firewalls

Wireless

License

Accessories

Indoor Access Points

Outdoor Access Points

Wireless Controllers

Airware Cloud

Wi-Fi Routers

Network Switches

License

Network Switch Accessories

Switch Modules & Line Cards

Wired Routers

Gateways/controllers

Media Converters, Extenders

Copper to Fiber Media Converters Hot

Media Converter Chassis

PoE Extenders

Modems

PoE Adapters

Smart Power Socket

Repeater

Wireless Adapter

USB Hubs

Sensor

wireless routers

License

Network Adapter

Mellanox NICsHot

InfiniBand Adapters

QLogic FC HBAs

Intel%AE/Intel Based NICsHot

Mobile Wi-Fi Hotspots

Transceiver

Networking Accessories

Network Software Licenses

Network Audio

Network Speaker

Satellite Radios

Servers & Storage

Storage Array Modules

Power

UPS Systems

Auto Transfer SwitchNew

Hospital-Grade Power Cords

Router, Security, NPB

Routers

Firewalls

Network Packet Brokers

Fiber TAPs

Conferencing, Phones

Wireless & Access

50G SFP56 for 5G Wireless

25G SFP28 for 5G Wireless

10G SFP+ for 4G Wireless

GPON Hot

XGSPON Ho

XGPON & XGPON Combo New

EPON & 10G EPON New

Wireless & Access Custom Hot

XGSPON Combo

100/200/400/800G Modules

Industrial 100G QSFP28

Converter/Fibre Channel

100/200/400/800G Custom

10/25/40G Modules

10G CWDM/DWDM SFP+ Hot

Converter/Fibre Channel

10/25/40G Custom

1/2/4G Modules

Optical Transmission

10G CWDM/DWDM SFP+ Hot

25G CWDM/DWDM SFP28

100G DWDM QSFP28

1G CWDM/DWDM SFP

Coherent 200/400G DWDM Hot

Optical Transmission Custom

Data Center

Intel AE/Intel Based NICs Hot

DAC/AOC/AEC Cables

Others

10G XFP/X2/XENPAK Hot

Accessories

Fiber Optic Panels

LC Fiber Optic Panels

SC Fiber Optic Panels

ST Fiber Optic Panels

MTP/MPO Fiber Optic Panels

MDC Fiber Optic Panels

Multimedia Copper/Fiber Panels

Fiber Optic Cassettes

MTP/LC/SC/MDC Cassettes Hot

MTP Conversion Cassettes

MTP Mesh Cassettes

LC Splice Cassettes

TAP Cassettes

Fiber Optic Enclosures

Rack Mount Hot

Wall Mount

Accessories

Cable Management

Label Printers & Accessories

Racks & Cabinets

Enterprise Switches

1/2.5G Enterprise SwitchesHot

10G Enterprise SwitchesHot

25G Enterprise Switches

40G Enterprise Switches

100G Enterprise Switches

Modular Enterprise Switches

Accessories

PoE+ Switches

Data Center Switches

10G Data Center SwitchesHot

25G Data Center SwitchesHot

40G Data Center SwitchesHot

100G Data Center SwitchesHot

400G Data Center Switches

Modular Data Center Switches

InfiniBand Switches

Accessories

Small Business

Industrial Ethernet Switches

1G Industrial Switches Hot

2.5G Industrial Switches

10G Industrial Switches

Accessories

Router, Security, NPB

Routers

Firewalls

Network Packet Brokers

Cooling Solutions

Fiber Testers

Fiber Optic Tools

Fiber Optic Cleaners

Pen Cleaners Hot

Sticks&Wipes

Reel Type Cleaners

Copper Tools

Network Tool Kits Hot

Punch Down Tools

Cable Strippers Hot

Copper Testers

Cable Testers Hot

Cable Qualifiers Hot

Cable Certifiers

Access Networks

FMT Series Hot

M6200 Series Hot

MS8100 Series

Data Center Interconnect

PON Networks

GPON & EPON OLT Hot

GPON & EPON ONT/ONU Hot

ODN

PON Transceivers

Passive Components

PLC Splitters Hot

Fiber Attenuators Hot

FWDM Filters

xWDM/xPON

Splice Closures

Transceivers

Open Line System

Optical Amplifiers Hot

Dispersion Compensation

Fiber Monitoring

Optical Protection

DWDM Open Line System

Chassis & Accessories

Mux Demux & OADM

DWDM Mux Demux Hot

CWDM Mux Demux Hot

DWDM/CWDM OADM

Custom Mux Demux & OADM

Chassis & Accessories

Transponders & Muxponders

1G/10G/25G Transponder

100G/200G/400G Transponder

10G/200G/400G Muxponder

Chassis & Accessories

Specifications

Product details:

Lifetime Warranty
Brand: D-Link
Model: DGS-3130-30PS

Specifications:

SFP ports: 24
10GBASE-T ports: 2
10G SFP+ ports: 4
RJ-45 Console port: 1
RJ-45 Management port: 1
USB 2.0 port: 1
1000Base-T Interface: 0
1000Base-T PoE Interface: 0
1000M SFP Interface: 24
100M SFP Interface: 0
10G SFP+ Interface: 4
10GBase-T Interface: 2
Console Port: 1
USB Port: 1
Switch Capacity: 168 Gbps
Max. Packet Forwarding Rate: 125 Mpps
Store & Forwarding Forwading: Yes
Control Module Redundancy: Yes
Operation Temperature: 0 ~ 50 °C
Storage Temperature: - 40 ~ 70 °C
Operation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 90% RH
Operating Altitude: 2000m
Maximum Power Consumption: 82.4 W
Standby Power Consumption: 43.9W
Maximum Heat Dissipation: 281.16 BTU/h
MTBF: 487,153 hours
Power Input AC:100 ~ 240 V
Redundant Power Supply: DPS-500A
CPU Speed: 1.25GHz
DRAM Size: 1GB DDR4
Flash Memory Size: 256MB NAND
Packet Buffer Size: 2MB
FAN: Yes
Comply with RoHS 6: Yes
Energy Efficiency Ethernet (EEE): Yes
Power Saving By Link Status: Yes
Power Saving By Cable Length: es
Power Saving By LED Shut-Off: Yes
Power Saving By Port Shut-Off: Yes
Power Saving By Port Standby: Yes
Power Saving By System Hibernation: Yes
Maximum PoE Budget: 0
Physical Stacking: Yes
Physical Stacking Bandwidth: 80G, with stacking port trunking
Units Per Physical Stack: 9
D-Link Single IP Management (SIM): Yes
Units Per SIM Stack: 32
MAC Address Table Size: 16,384 (16K)
Black Hole MAC Address: Yes
802.3x Flow Control: Yes
Head-of-line (HOL) Blocking Prevention: Yes
802.1D Spanning Tree (STP): Yes
802.1w Rapid Spanning Tree (RSTP): Yes
802.1s Multiple Spanning Tree (MSTP): Yes
BPDU Filtering: Yes
Root Restriction: Yes
BPDU Restriction: Yes
G.8032 ERPS: Yes
Multiple ERPS Ring: Yes
802.1AX Link Aggregation: Yes
802.3ad Link Aggregation: Yes
Link Aggregation Group Per Device: 32
Max Port Per Link Aggregation Group: 8
Port Mirroring: Yes
Flow-based (ACL) mirroring: Yes
RSPAN: Yes
Jumbo Frame: 9,216 (9K) Bytes
Loopback Detection (LBD): Yes
L2 Protocol Tunneling: Yes
IGMP Snooping: Yes
Max IGMP Snooping Groups: 1,024
IGMP Snooping Fast Leave: Yes
IGMP Authentication: Yes
IGMP Proxy Reporting: Yes
MLD Snooping: Yes
MLD Snooping Groups: 1,024
MLD Proxy Reporting: Yes
MLD Snooping Fast Leave: Yes
802.1Q VLAN: Yes
VLAN Groups: 4094
Port-based VLAN: Yes
802.1v Protocol-based VLAN: Yes
MAC-based VLAN: Yes
Voice VLAN: Yes
Auto Surveillance VLAN: Yes
GVRP: Yes
Double VLAN (Q in Q): Yes
Selective Q in Q: Yes
VLAN Translation: Yes
ISM VLAN (Multicast VLAN): Yes
Asymmetric VLAN: Yes
Private VLAN: Yes
Super VLAN: Yes
VLAN trunking: Yes
IP Interface: Yes
Max Number of IP Interface: 16
Loopback Interface: Yes
ARP Entries: 2,048
ARP: Yes
Gratuitous ARP: Yes
IPv6 Neighbor Discovery (ND): Yes
ND Entries: 1,024
UDP Helper: Yes
Routing Table Entry: 1,024
L3 Forwarding Table Entry: 4,096
Equal-Cost Multi-Path Route (ECMP): Yes
Weighted-Cost Multi-Path Route (WCMP): Yes
Default Route: Yes
Static Route: Yes
Route Preference Setting: Yes
Policy-based Route (PBR): Yes
Null Route: Yes
Route Redistribution: Yes
VRRP: Yes
RIPv1: Yes
RIPv2: Yes
RIPng: Yes
Number of Queue: 8
Class of Service (CoS): Yes
Two Rate Three Color Marker (trTCM): Yes
Single Rate Three Color Marker (srTCM): Yes
Remark 802.1p priority: Yes
Remark ToS/DSCP: Yes
Rate Limiting: Yes
Time based QoS: Yes
Queue Handling: Yes
Strict Priority Queue (SPQ): Yes
Weighted Round Robin (WRR): Yes
Weighted Deficit Round Robin (WDRR): Yes
SPQ + WRR: Yes
Weighted Random Early Detection (WRED): Yes
Simple Random Early Detection (SRED): Yes
Port-based Bandwidth Control: Yes
Queue-based Bandwidth Control: Yes
Flow-based bandwidth Control: Yes
Max Access Control List (ACL) Entries: Yes
MAC Access List: Yes
IP Access List: Yes
IPv6 Access List: Yes
Time based ACL: Yes
CPU Interface Filtering: Yes
SSH: Yes
SSL: Yes
Port Security: Yes
Broadcast/Multicast/Unicast Storm Control: Yes
Traffic Segmentation: Yes
DHCP Snooping: Yes
IP Source Guard: Yes
IP-MAC-Port Binding (IMPB): Yes
IPv6 Snooping: Yes
Dynamic ARP Inspection (DAI): Yes
IPv6 Route Advertisement (RA) Guard: Yes
DHCPv6 Guard: Yes
D-Link Safeguard Engine: Yes
IPv6 ND Inspection: Yes
L3 Control Packet Filtering: Yes
NetBIOS/NetBEUI filtering: Yes
DHCP Server Screening: Yes
DHCP Client Filtering: Yes
BPDU Attack Protection: Yes
ARP Spoofing Prevention: Yes
DoS Attack Prevention: Yes
802.1X: Yes
Host based 802.1X Authentication: Yes
Port based 802.1X Authentication: Yes
Identity Driven 802.1X Policy Assignment: Yes
Web-based Access Control (WAC): Yes
Port based WAC Authentication: Yes
Host based WAC Authentication: Yes
Identity Driven WAC Policy Assignment: Yes
MAC-based Access Control (MAC): Yes
Host based MAC Authentication: Yes
Port based MAC Authentication: Yes
Compound Authentication: Yes
Identity Driven MAC Policy Assignment: Yes
Microsoft® NAP Support: Yes
Guest VLAN: Yes
Authentication for Management Access: Yes
Privilege Level for Management Access: Yes
RADIUS: Yes
RADIUS Accounting: Yes
TACACS+: Yes
Authentication Database Failover: Yes
Trusted Host: Yes
Cable Diagnostics: Yes
802.3ah Ethernet Link OAM: Yes
D-link Unidirectional Link Detection (DULD): Yes
Dying Gasp: Yes
802.1ag Connectivity Fault Management (CFM): Yes
Y.1731 OAM: Yes
Optical Transceiver Digital Diagnostic Monitoring (DDM): Yes
Network Time Protocol (NTP): Yes
Simple Network Time Protocol (SNTP): Yes
Web-based GUI: Yes
Telnet Server: Yes
Command Line Interface (CLI): Yes
Telnet Client: Yes
SNMP: Yes
SNMP Trap: Yes
TFTP Client: Yes
Secured FTP (SFTP) Server: Yes
ZModem: Yes
Command Logging: Yes
System Log: Yes
SMTP: Yes
RMONv1: Yes
LLDP: Yes
RMONv2: Yes
LLDP-MED: Yes
D-Link Discover Protocol (DDP): Yes
DHCP/BootP Client: Yes
DHCP Auto-configuration: Yes
DHCP relay: Yes
DHCP Server: Yes
Flash file system: Yes
PPPoE Circuit-ID Tag Insertion: Yes
Multiple Images: Yes
Dual Configurations: Yes
Dual Images: Yes
Editable Login Banner: Yes
Multiple Configurations: Yes
Editable System Prompt: Yes
DNS Client: Yes
Password Recovery: Yes
Debug Command: Yes
Password Encryption: Yes
MTU Setting: Yes
Ping: Yes
Traceroute: Yes

Features

Brand:

D-Link

Color:

Black

Conditions:

New

GTIN, UPC, EAN, JAN or ISBN:

790069435294

Warranty:

Lifetime
