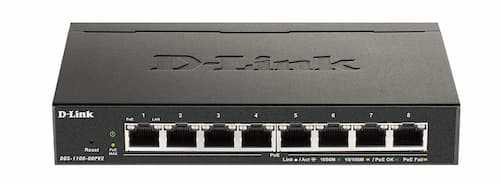

D-Link DGS-1100-08PV2 8 Ports Ethernet PoE Switch with 64W PoE Budget Layer 2 Network Gigabit Wireless Internet (Black)


Brand:

Specifications

   Product details:
  • Lifetime Warranty
  • Brand: D-Link
  • Model: DGS-1100-08PV2
   FEATURES
  • 8 x 10/100/1000BASE-T PoE ports
  • Supports IEEE 802.3at PoE
  • 64W PoE power budget
  • Compact design for convenient placement
  • Fanless design for silent operation
  • Innovative D-Link Green energy saving features
  • Complete web interface for comprehensive switch management
   TECHNICAL SPECIFICATIONS
  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
   Ports & interfaces
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8
   Network
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Switching capacity: 16 Gbit/s
  • Forwarding rate11: 9 Mpps
  • Address table size: 4096 entries
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
   Security
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
   Multicast features
  • Multicast support: Yes
   Design
  • Rack mounting: No
  • LED indicators: Yes
  • Certification: FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
   Performance
  • Flash memory: 2 MB
  • Fanless: Yes
   Power
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 77.9 W
  • Power over Ethernet (PoE)
  • Power supply PoE: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 64 W
   Operational conditions
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Storage humidity: 0 - 95%
  • Heat dissipation: 265.85 BTU/h
   Weight & dimensions
  • Width: 171 mm
  • Depth: 97.8 mm
  • Height: 28.6 mm
  • Weight: 430 g
   Sustainability
  • Sustainability compliance: Yes
  • Sustainability certificates: CE, RoHS


Features

Brand:
D-Link
Color:
Black
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
790069453311
Warranty:
Lifetime
