Home Networking Power Customized Simplex Slow Axis Single Mode 3.0mm Polarization Maintaining Fiber Optic Patch Cable (Yellow)

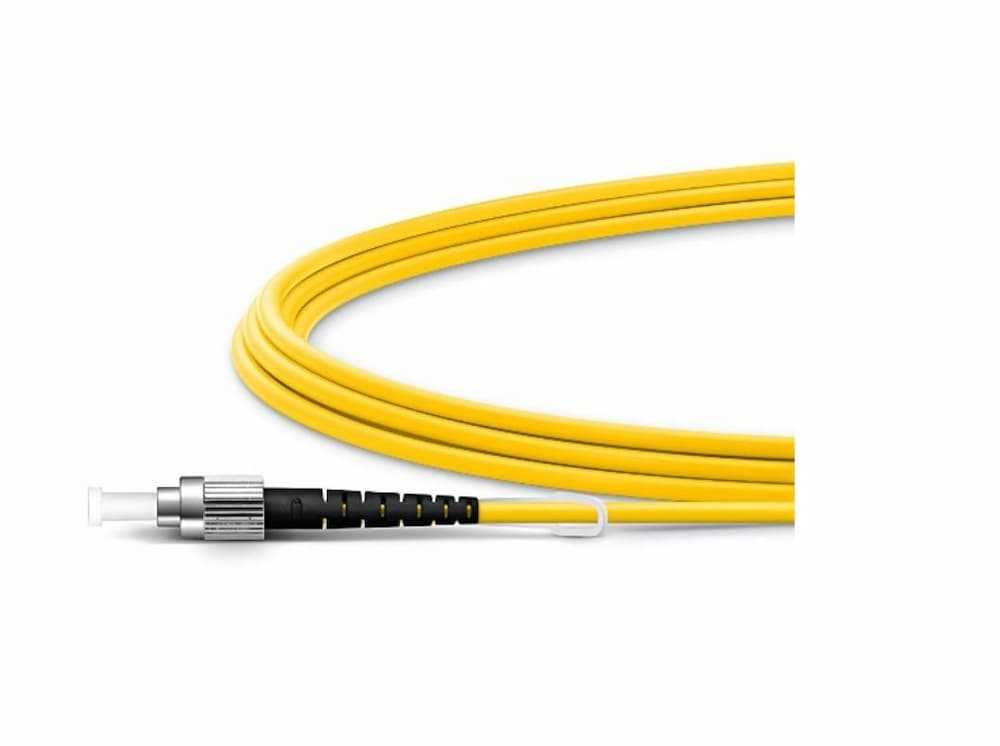

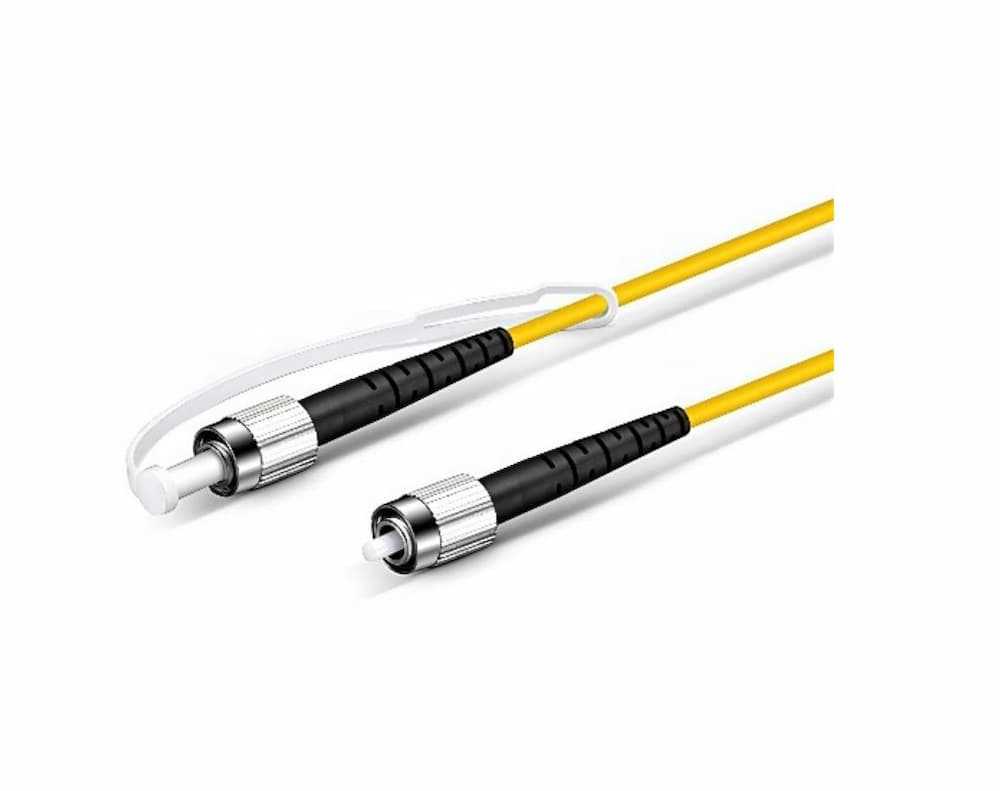

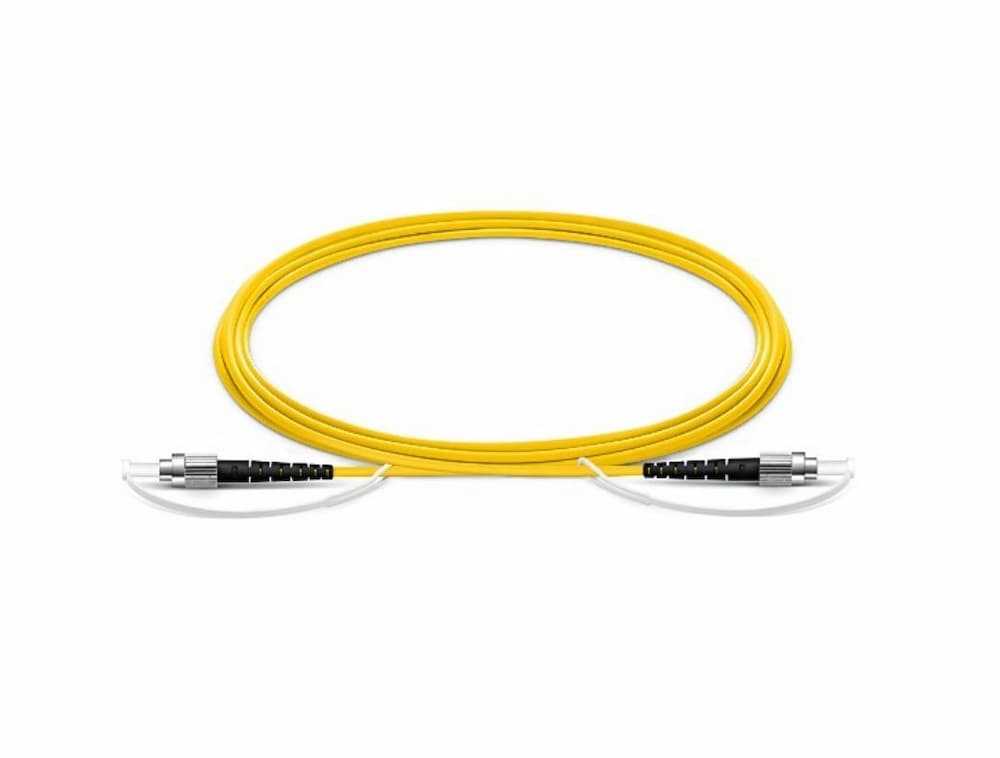

Customized Simplex Slow Axis Single Mode 3.0mm Polarization Maintaining Fiber Optic Patch Cable (Yellow)


Brand:
No Brand

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to exchange)
  • 1 Year Warranty
      Specification:
  • Fiber Type: OS2
  • Glass Fiber: Fujikura
  • Cable Diameter: 3.0mm
  • Cable Jakect: PVC
  • Wavelength (nm): 1310/1550
  • Connector Type: LC/SC/FC/ST Simplex
  • Insertion Loss: =0.4dB
  • Return loss: UPC=50dB, APC=60dB
  • Mode-field Diameter (µm): 10.5 ± 0.5(PM1550)/9.0 ± 0.5(PM 1310)
  • Typical Cross Talk at 4m (dB): -40
  • Beat Length Range (mm): 3.0-5.0(PM1550)/2.5-4.0(PM 1310)
  • Maximum Cross Talk at 100m (dB): -30
  • Maximum Attenuation (dB/km): 0.5(PM1550)/1.0(PM 1310)
  • Operating Temperature: -20 ~ +70

Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1Year
