Home Networking Power Customized Simplex OS2 Single Mode LC/SC/FC/ST/LSH Fiber Optic Pigtail - Yellow

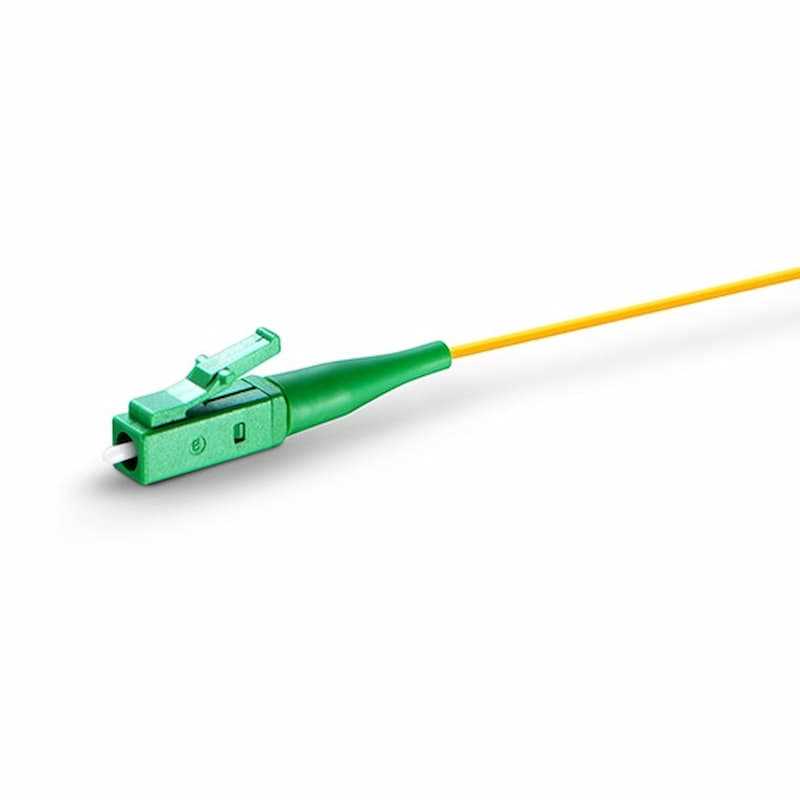

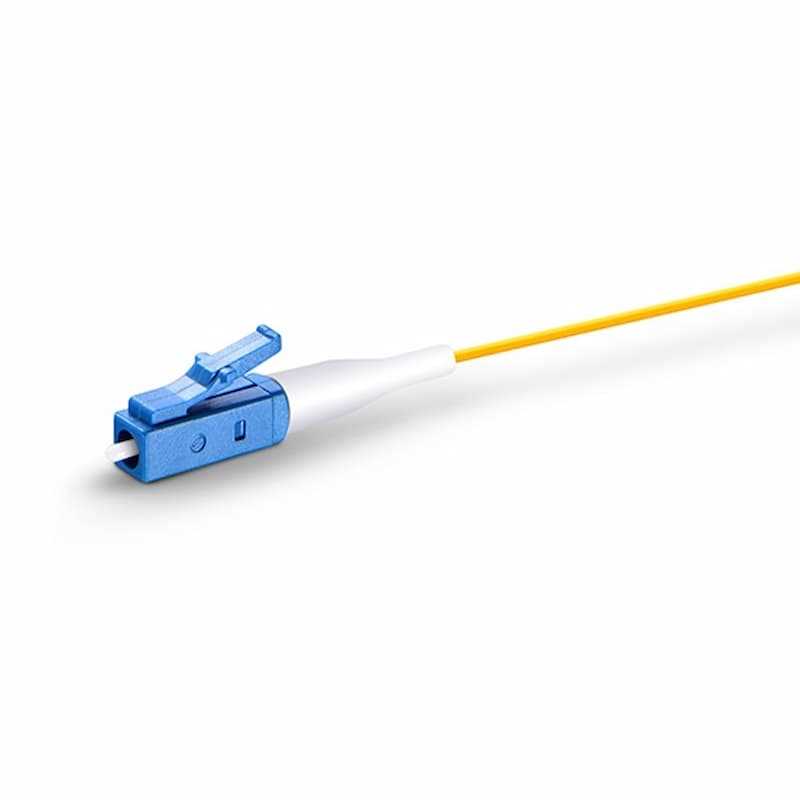

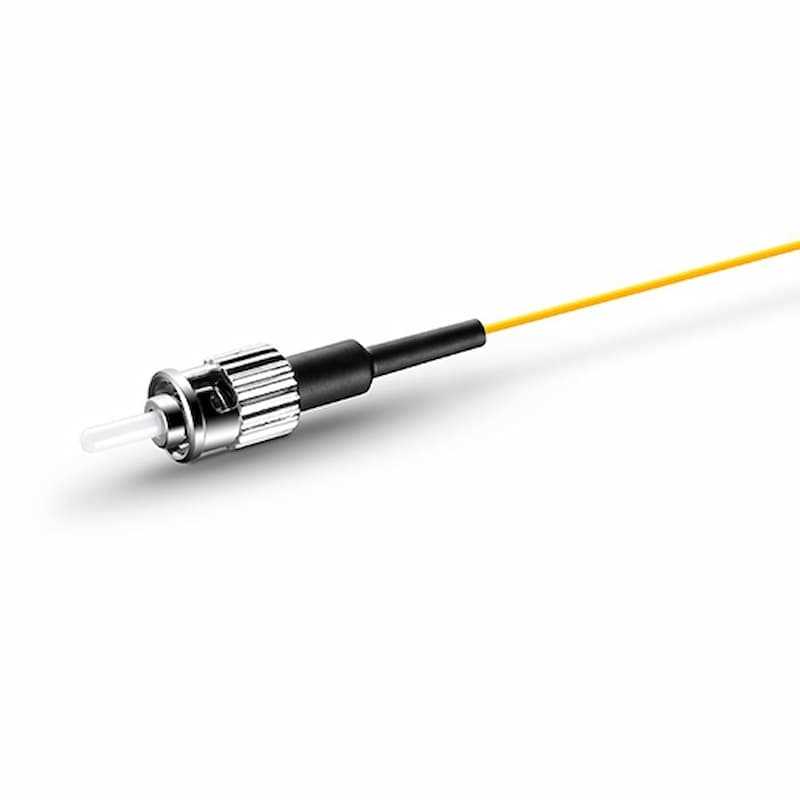

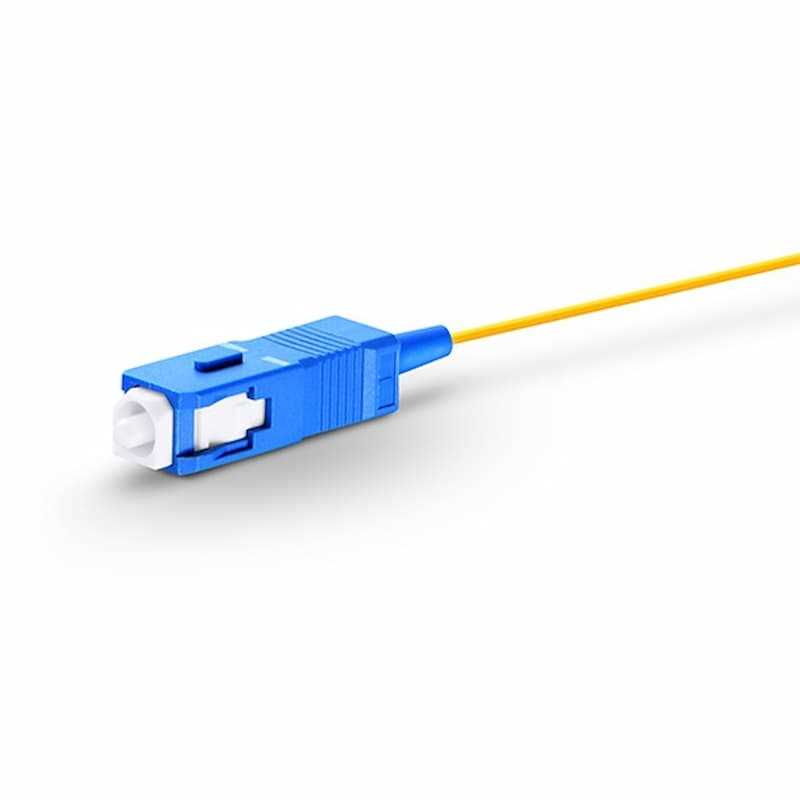

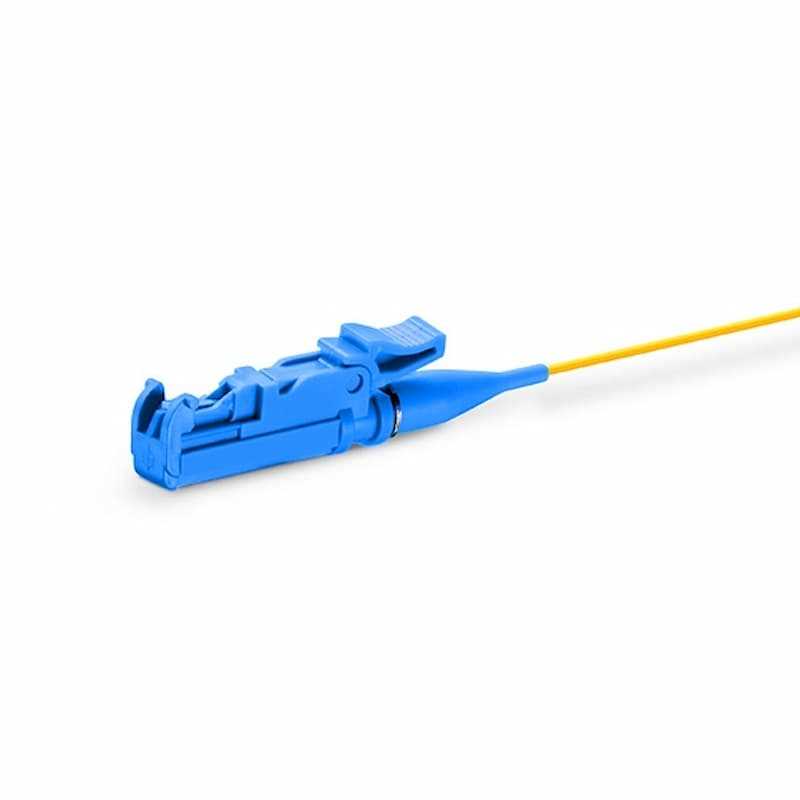

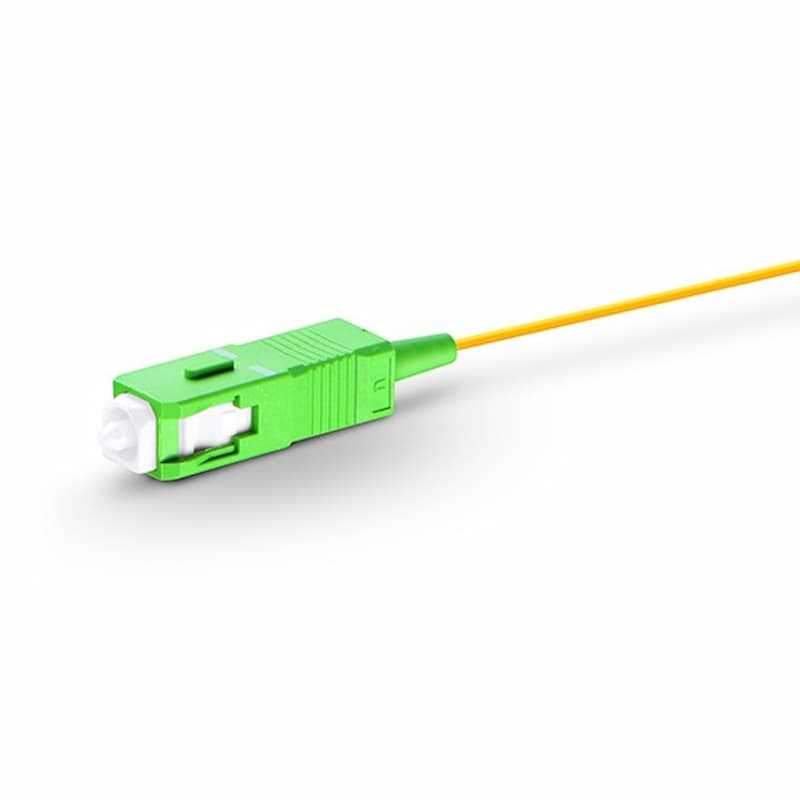

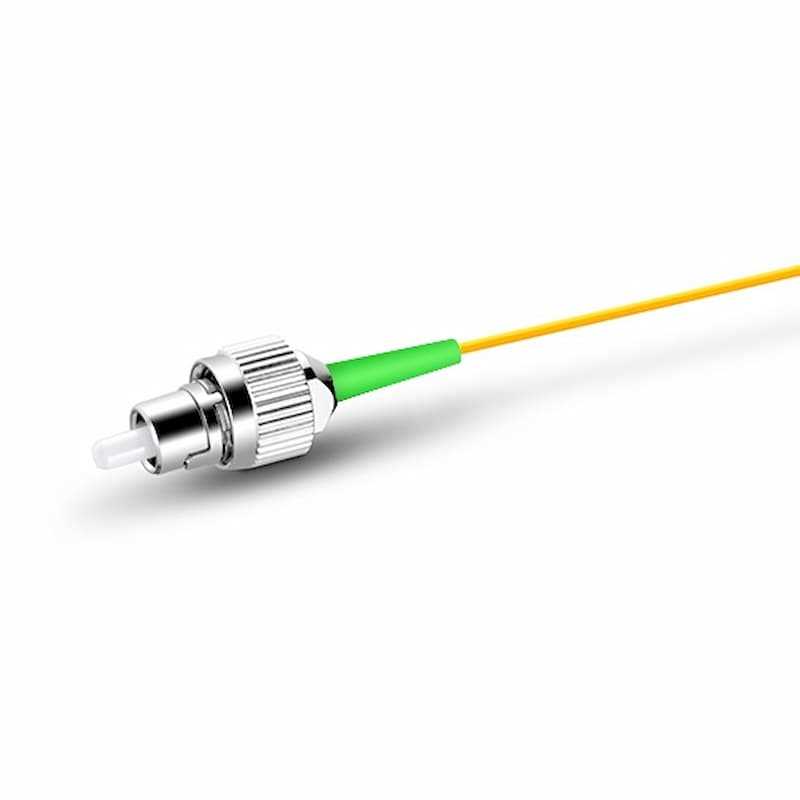

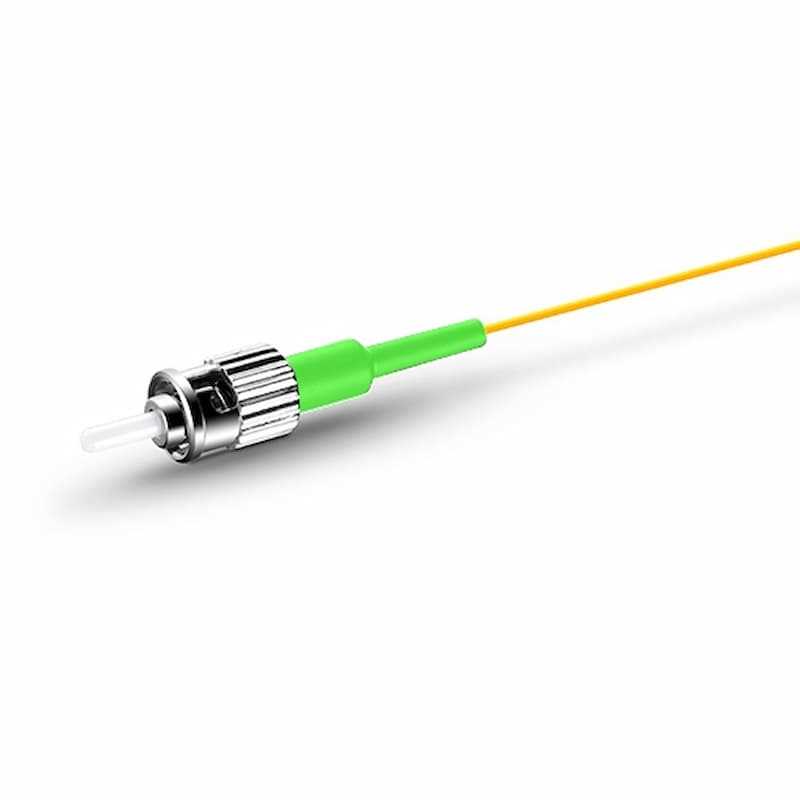

Customized Simplex OS2 Single Mode LC/SC/FC/ST/LSH Fiber Optic Pigtail - Yellow


Brand:
No Brand

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)

    Features:
  • PVC/LSZH/OFNP Flame-retardant Jacket with Tight-buffered Coating on Each Optical Fiber
  • Available with LC, SC, FC, ST, LSH Connectors
  • Optical Testing Guarantees Insertion Loss and Returns Loss
  • Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems

    Specification:
  • Connector Type: LC/SC/FC/ST/LSH
  • Polish Type: UPC/APC
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Fiber Count: Simplex
  • Cable Jacket: PVC/LSZH/OFNP
  • Fiber Grade: G.657.A1/G.657.A2
  • Minimum Bend Radius: 30mm/10mm/7.5mm
  • Cable Diameter: 0.9/2.0mm
  • Jacket Color: Yellow
  • Insertion Loss (dB): =0.3
  • Return Loss (dB): UPC=50, APC=60 (LC/SC/ST/FC), UPC=55, APC=75 (LSH)
  • Attenuation at 1310nm: 0.36 dB/km:
  • Attenuation at 1550nm: 0.22 dB/km:
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C

















Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
No Warranty
