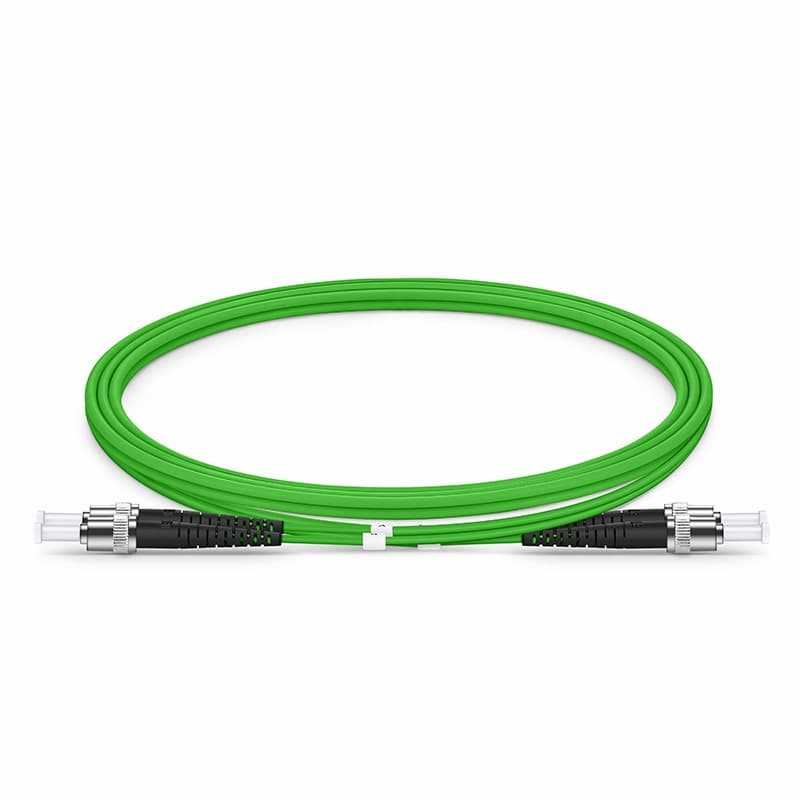

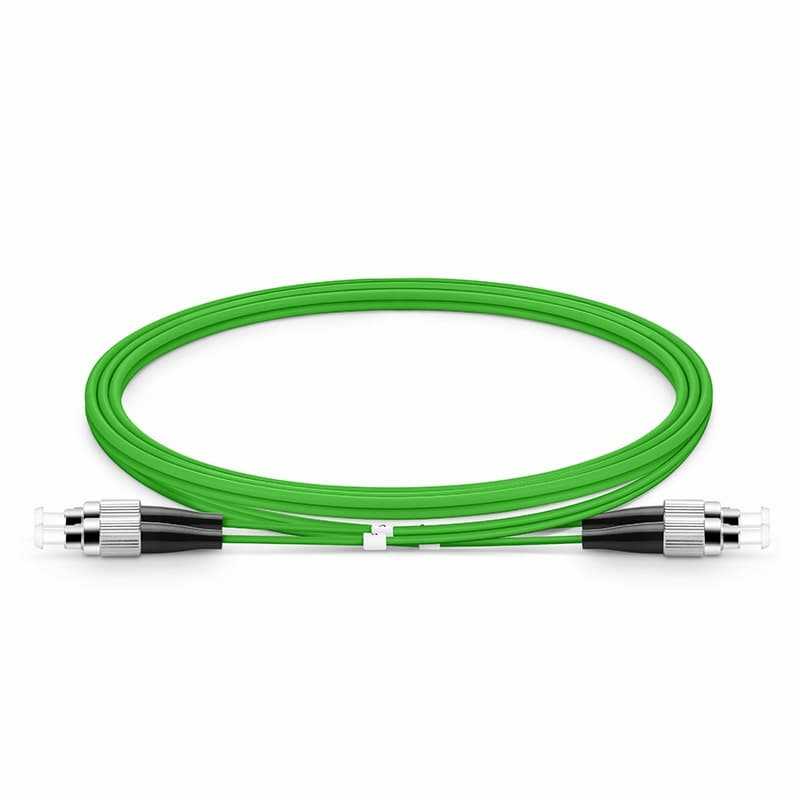

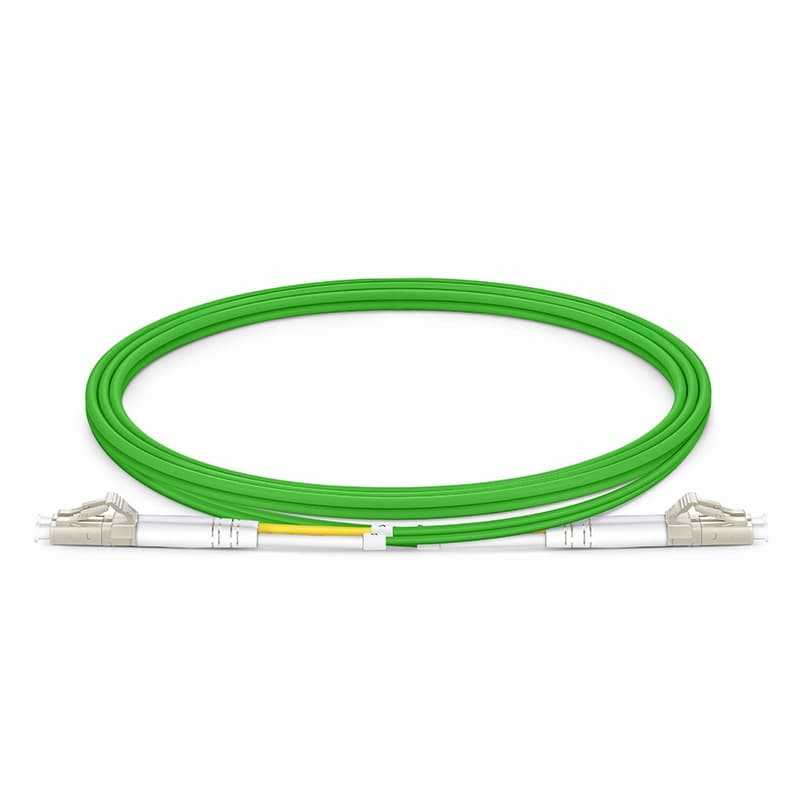

Customized Duplex OM5 Multimode LC/SC/FC/ST Wideband 2.0mm Fiber Optic Patch Cable (Green)


Brand:
No Brand

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to exchange)
  • 1 Year Warranty
      Specification:
  • Connector Type: LC/SC/ST/FC
  • Polish Type: UPC to UPC
  • Fiber Mode: OM5 50/125µm
  • Wavelength: 850/1300nm
  • 40G Ethernet Distance: 440m at 850nm
  • 100G Ethernet Distance: 150m at 850nm
  • Insertion Loss: =0.3dB
  • Return Loss: =30dB
  • Fiber Grade: Bend Insensitive
  • Minimum Bend Radius: 7.5mm
  • Cable Jacket: PVC/LSZH
  • Cable Diameter: 2.0mm
      Details:
  • Offered in PVC/LSZH Flame-retardant Jacket
  • Available in Standard LC/SC/FC/ST Connectors
  • Precision Zirconia Ferrule Connectors Ensure Low Loss
  • Duplex Clip Prevents the Fiber from Rotating and Maintains the Polarity
  • Bend Insensitive Fiber & 7.5mm Min. Bend Radius
  • A Wideband Multimode Fiber Solution, Supports at Least 4 Wavelengths in 850-950nm
  • Support Extended Distances When Using SWDM at 850-950nm
  • Optical Testing Ensures Network Performance
  • Compliant to TIA-604 (FOCIS)

Features

Brand:
No Brand
Color:
Green
Conditions:
New
Warranty:
1 Year
