Home Networking Power Customized 8-144 Fibers MTP-12 OS2 Single Mode Elite Armored Trunk Cable (Yellow)

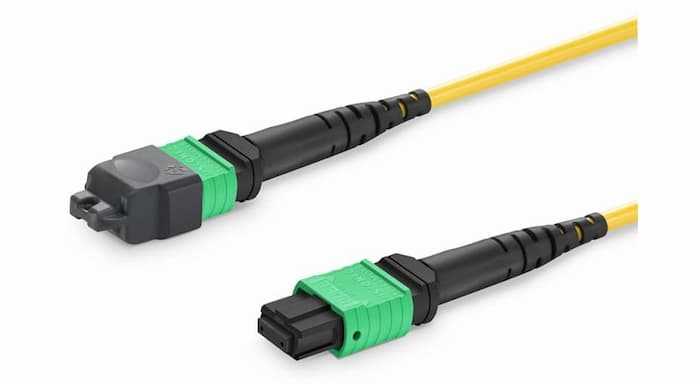

Customized 8-144 Fibers MTP-12 OS2 Single Mode Elite Armored Trunk Cable (Yellow)


Brand:
No Brand

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: No Brand
   Specification:

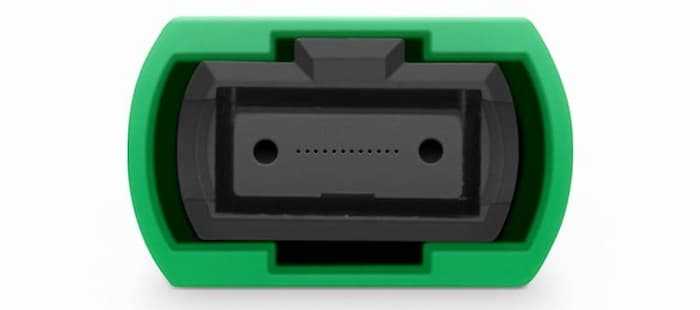

  • Connector A: US Conec MTP® Female (Pinless)
  • Connector B: US Conec MTP® Female (Pinless)
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Fiber Count: 12 Fibers
  • Fiber Grade: G.657.A1
  • Polish Type: APC to APC
  • Minimum Bend Radius: 10mm
  • Insertion Loss: 0.35dB Max (0.15dB Typ.)
  • Return Loss: =60dB
  • Attenuation at 1310nm: =0.36dB/km
  • Attenuation at 1550nm: =0.22dB/km
  • Cable Diameter: 3.0mm-17.3mm
  • Cable Jacket: Plenum (OFNP) / LSZH
  • Fiber Cords Structure: Single Armored, Stainless Steel Tube
  • Tensile Strength: 200/400N (Long/Short Term)
  • Operating Temperature: -20 to 60°C (-4 to 140)
  • Storage Temperature: -20 to 85°C (-4 to 185)
   Details:
  • Helical Steel Armor Provides Additional Crush and Rodent Protection
  • US Conec MTP® Connector with Optimal 0.15dB Typ. IL
  • Bend Insensitive Fiber & 20/10D (Dynamic/Static) Min. Bend Radius
  • Pull-proof Jacket with Max. 400N Tensile Strength
  • OFNP (Plenum) Fire Rating, Environmentally Friendly and Durable
  • Routing Indoor Including Data Center Racks, Raised Floors and Runs Between Floors



Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
