Home Networking Power Customized 6 Fibers OS2 Single Mode Armored Indoor 3.0mm Multi-Fiber Breakout Cable (Blue)

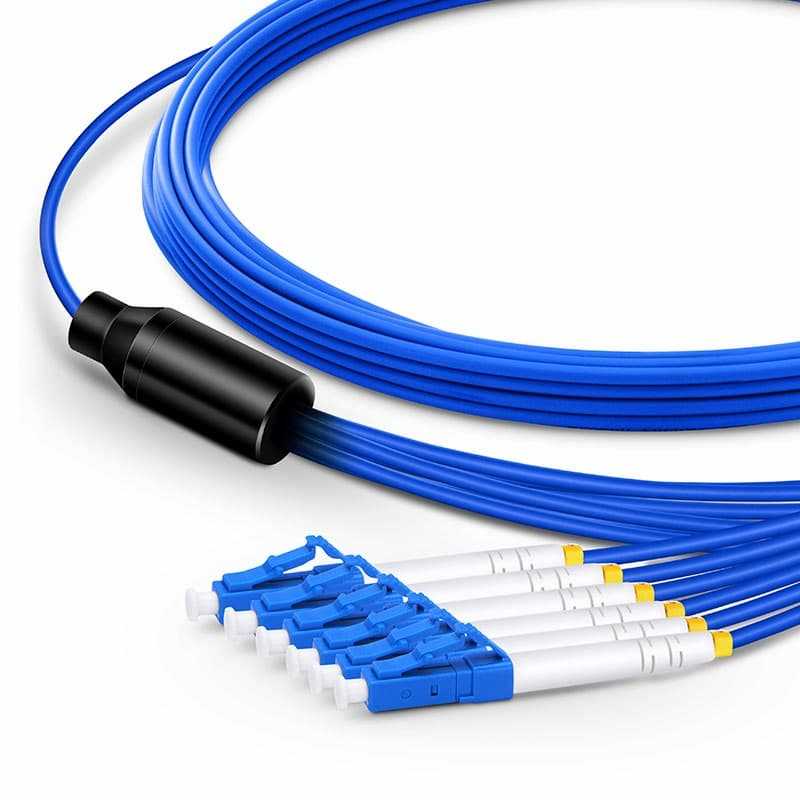

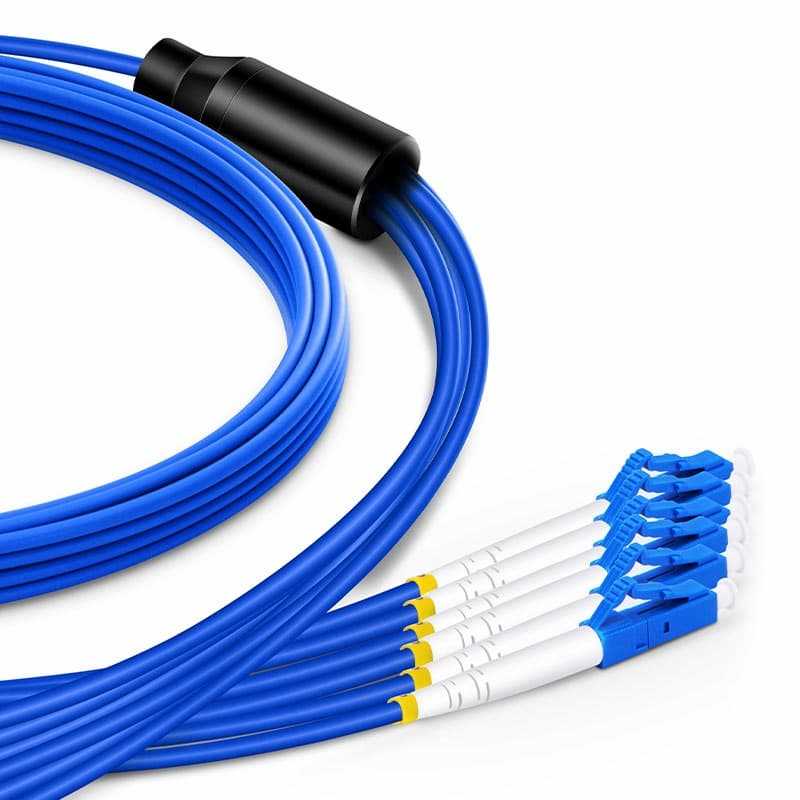

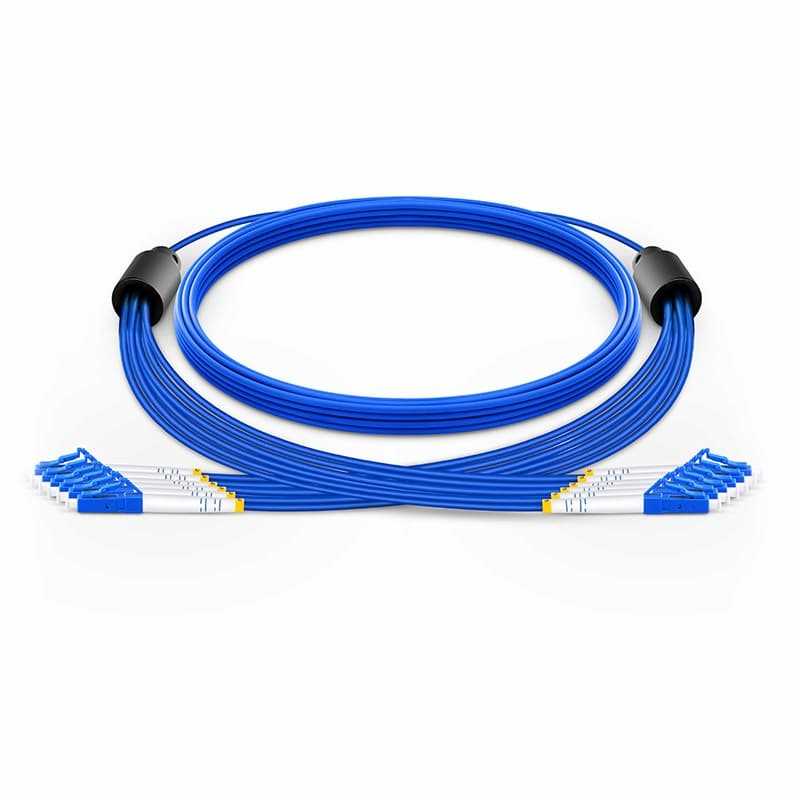

Customized 6 Fibers OS2 Single Mode Armored Indoor 3.0mm Multi-Fiber Breakout Cable (Blue)


Brand:
No Brand

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to exchange)
  • 1 Year Warranty
      Specification:
  • Connector Type: LC/SC/ST/FC
  • Polish Type: UPC/APC
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Fiber Count: 6 Fibers
  • Cable Jacket: PVC
  • Fiber Grade: G.657.A1
  • Minimum Bend Radius: 30D (Dynamic/Static)
  • Insertion Loss: =0.3dB
  • Return Loss: UPC=50dB, APC=60dB
  • Attenuation at 1310nm: 0.36 dB/km
  • Attenuation at 1550nm: 0.22 dB/km
  • Trunk Diameter: 4.5mm
  • Breakout Diameter: 3.0mm
  • Polarity: A (Tx) to B (Rx)
  • Armor Layer: Stainless Steel Tube
  • Tensile Loads: 200/400N (Long/Short Term)
  • Operating Temperature: -25~70°C
  • Storage Temperature: -25~70°C

Features

Brand:
No Brand
Color:
Blue
Conditions:
New
Warranty:
1 Year
