Home Networking Power Customized 4 Fibers OS2 Single Mode Indoor Tight-Buffered Multi-Fiber Breakout Cable (Yellow)

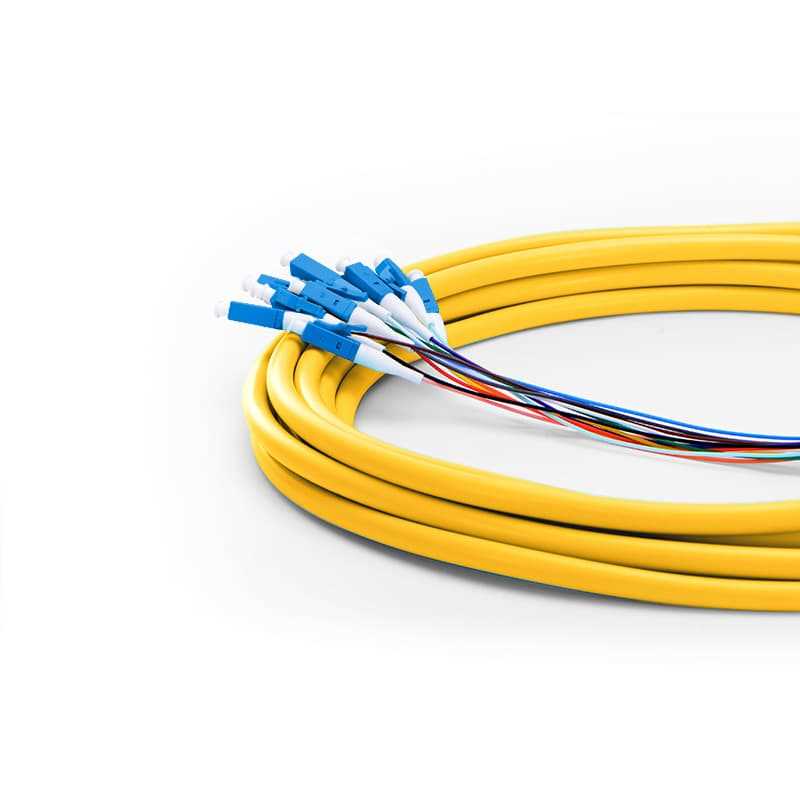

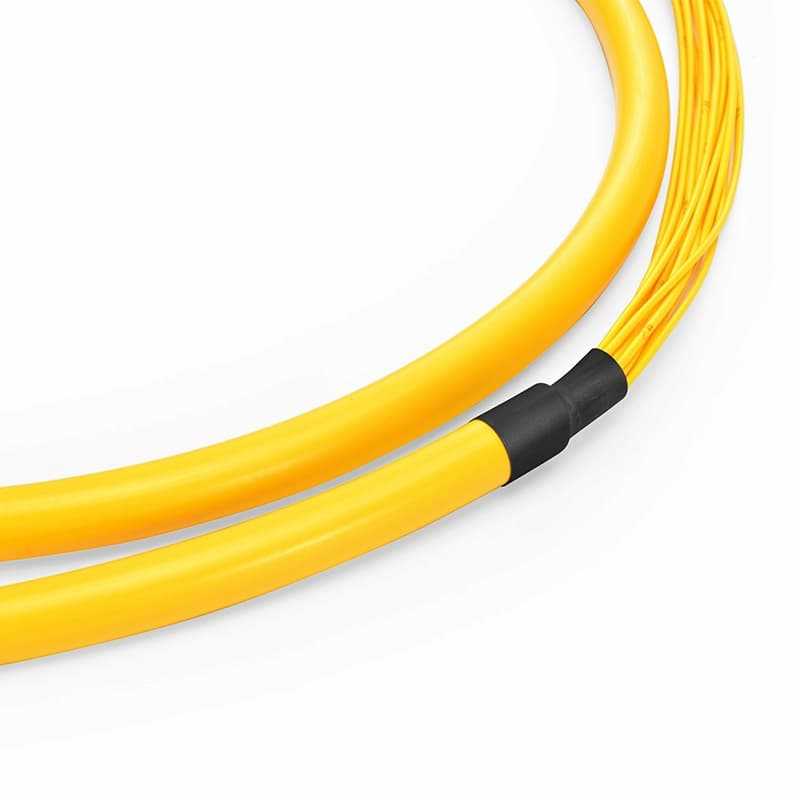

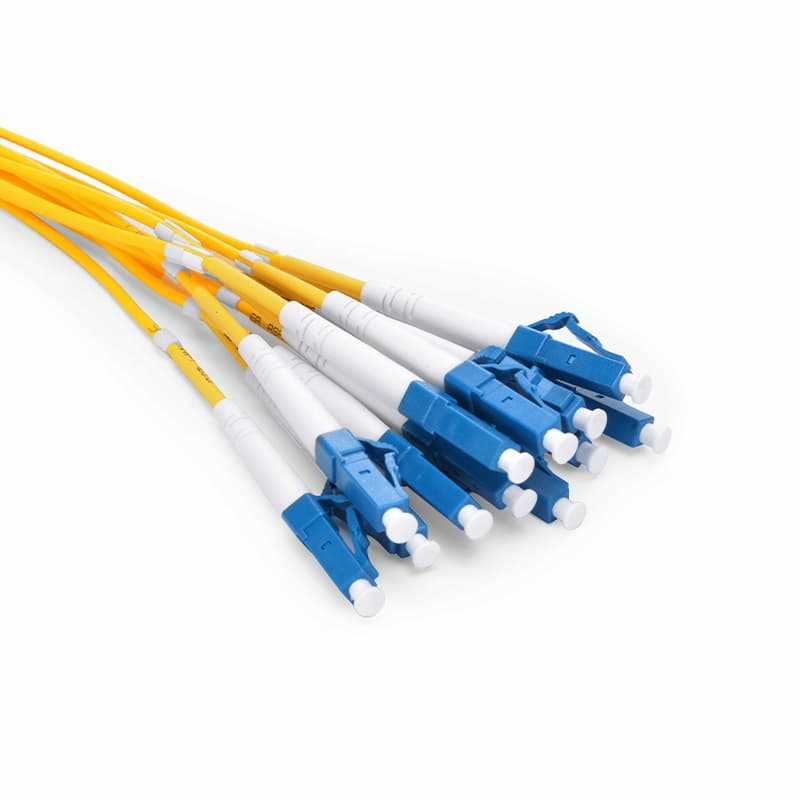

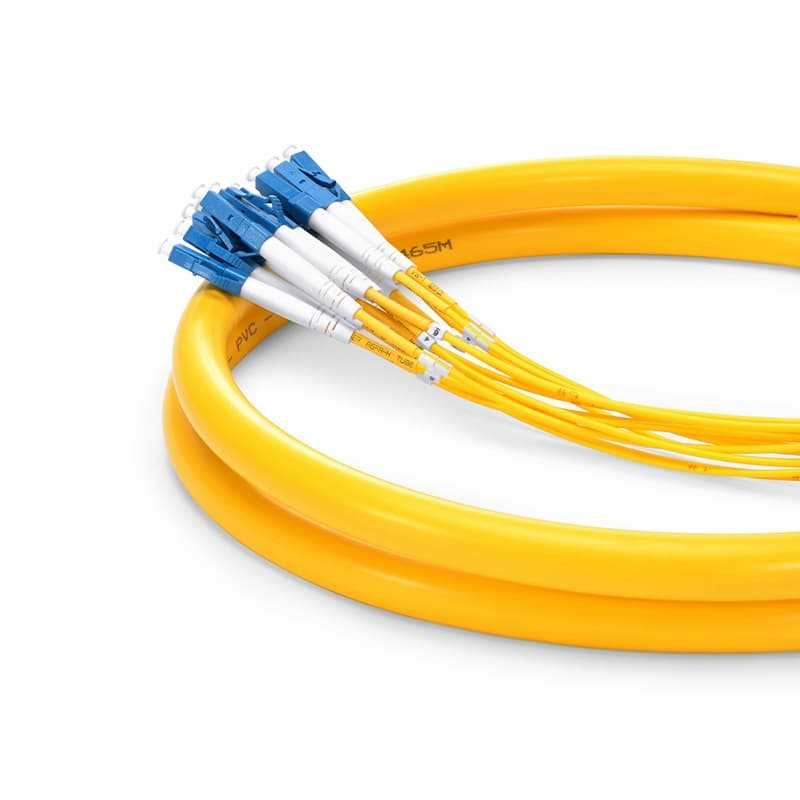

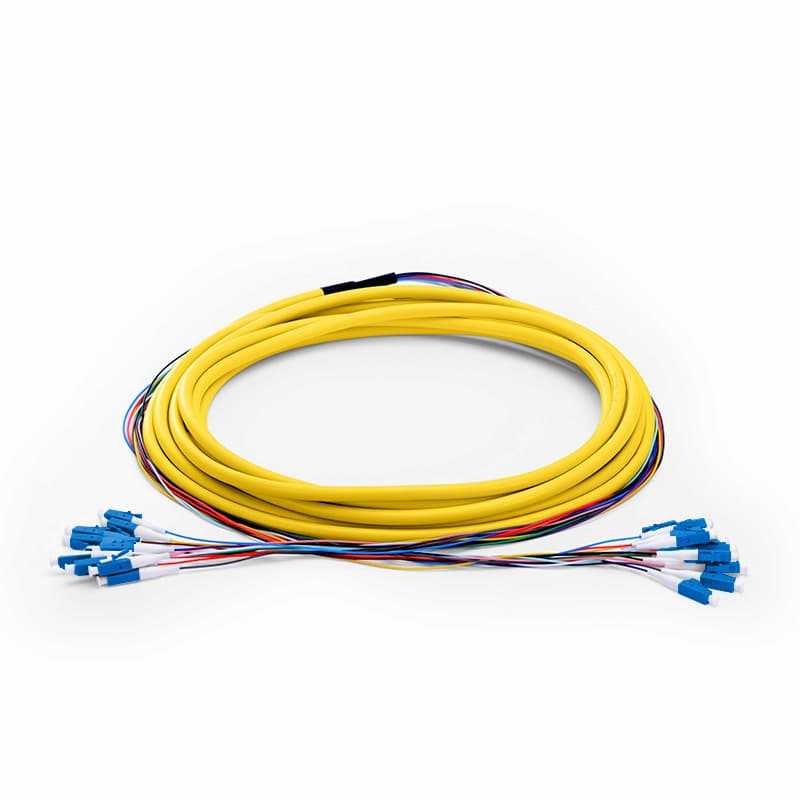

Customized 4 Fibers OS2 Single Mode Indoor Tight-Buffered Multi-Fiber Breakout Cable (Yellow)


Brand:
No Brand

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to exchange)
  • 1 Year Warranty
      Specification:
  • Connector Type: LC/SC/ST/FC/LSH
  • Polish Type: UPC/APC
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Fiber Count: 4 Fibers
  • Cable Jacket: PVC/LSZH/OFNP
  • Fiber Grade: G.657.A1
  • Minimum Bend Radius (mm): 20/10D (Dynamic/Static)
  • Insertion Loss (dB): =0.3
      Return Loss (dB):
  • UPC=50, APC=60 (LC/SC/ST/FC)
  • UPC=55, APC=75 (LSH)
  • Attenuation at 1310nm: 0.36dB/km
  • Attenuation at 1550nm: 0.22dB/km
  • Breakout Diameter: 2.0/0.9mm
  • Trunk Diameter: 7.0-8.0mm/4.6-5.0mm
  • Breakout Type: 0.3m/0.5m Equal Breakout (Default)
  • Polarity: A (Tx) to B (Rx)
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C

Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
