Home Networking Power Customized 4-48 Fibers OS2 Single Mode LC/SC/FC/ST/LSH Fiber Optic Pigtail - Yellow

Customized 4-48 Fibers OS2 Single Mode LC/SC/FC/ST/LSH Fiber Optic Pigtail - Yellow


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)

    Features:
  • PVC Flame-retardant Fiber Optic Cable with Tight-buffered Coating on Each Optical Fiber
  • Optical Testing Guarantees Insertion Loss and Returns Loss
  • Individually Colored to Easily Match Color-coded Fiber Cable That Will Be Spliced
  • Pass All IEC-61754 and TIA-606 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling System

    Specification:

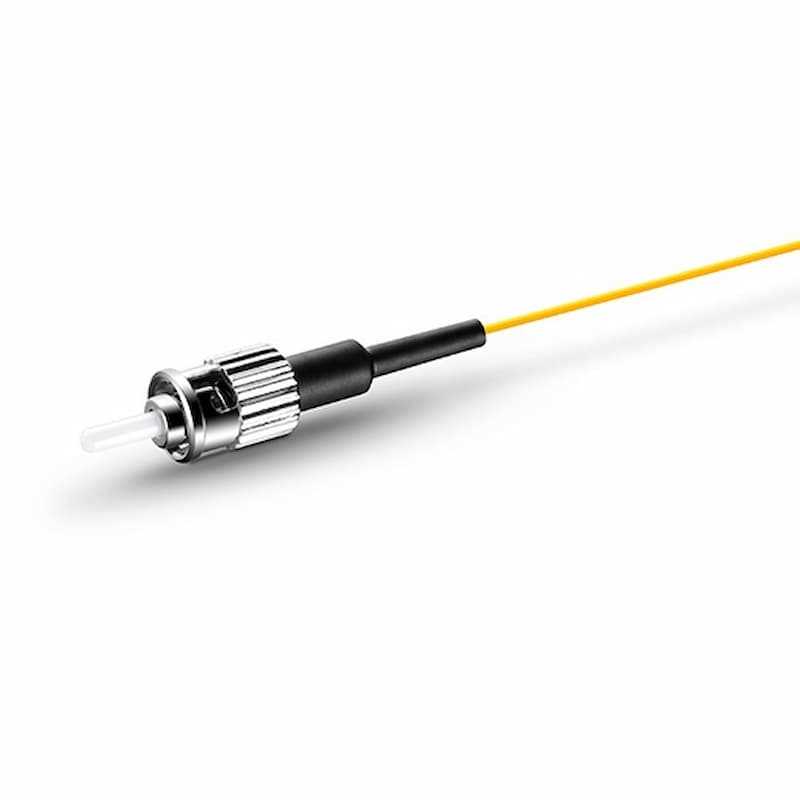

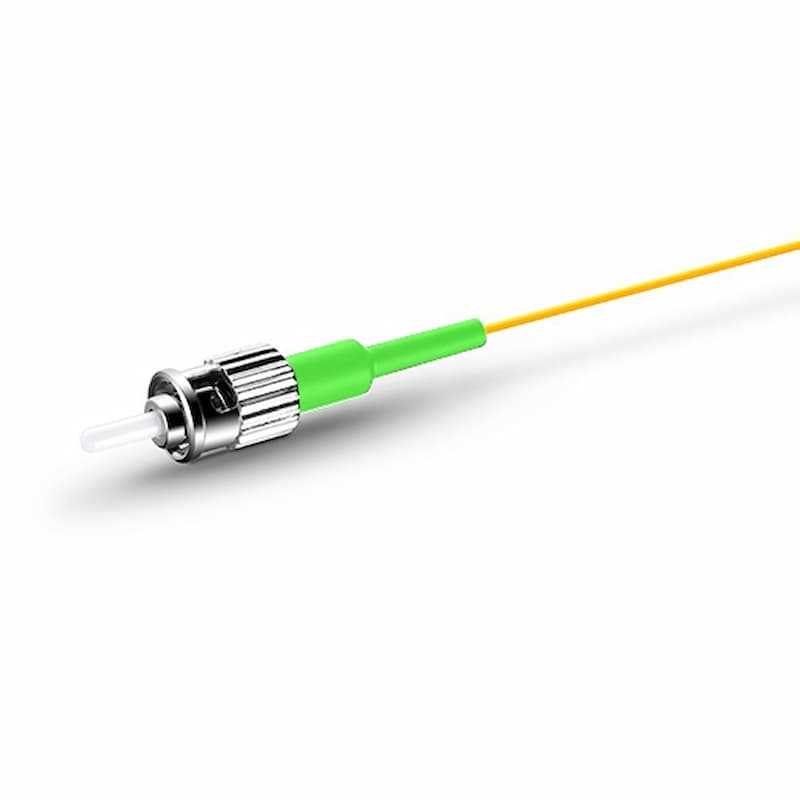

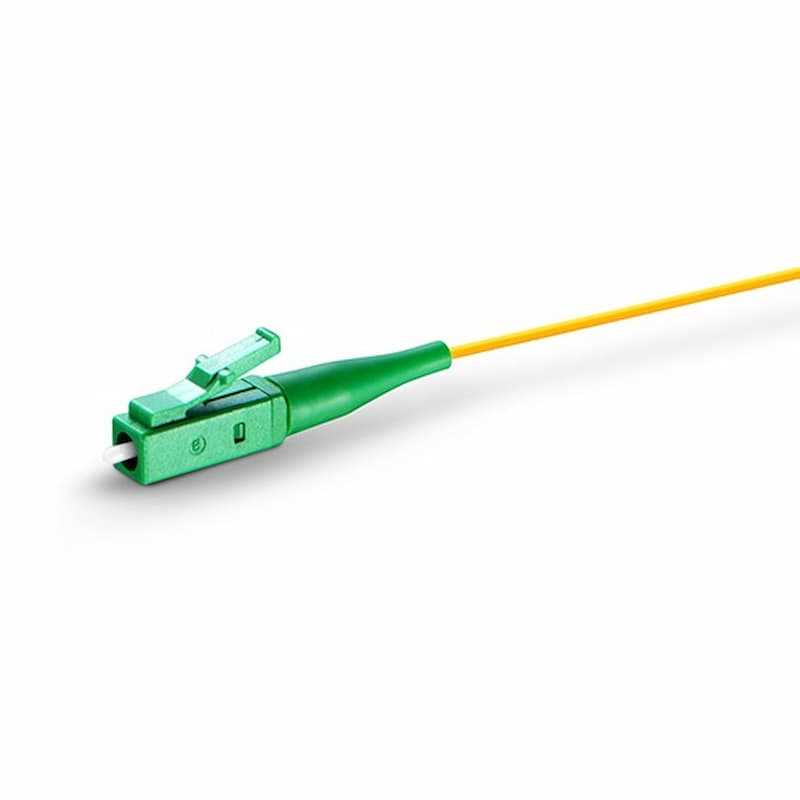

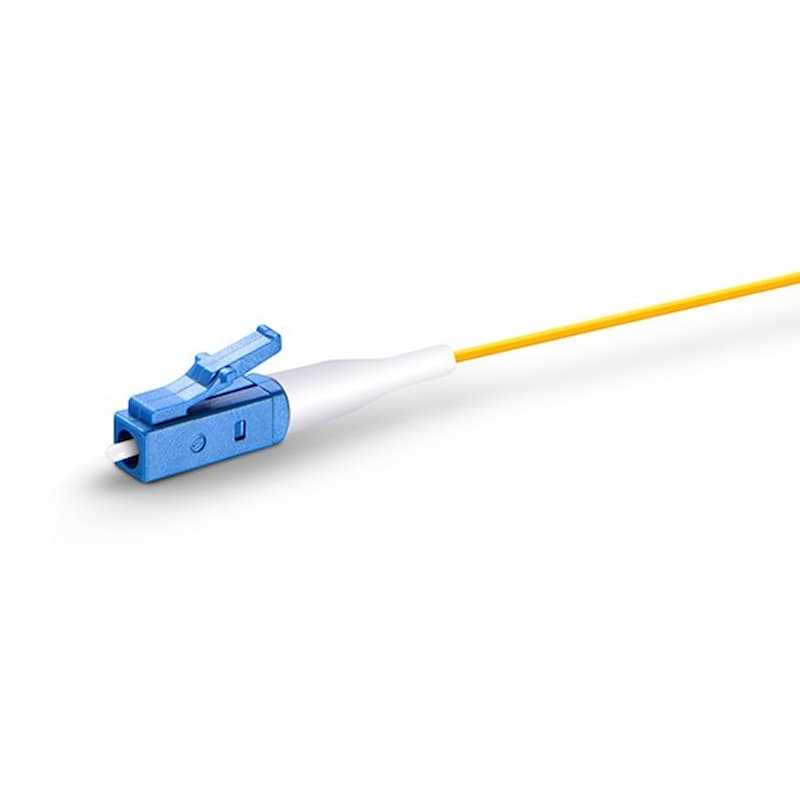

  • Connector Type: LC/SC/FC/ST/LSH
  • Polish Type: UPC/APC
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm

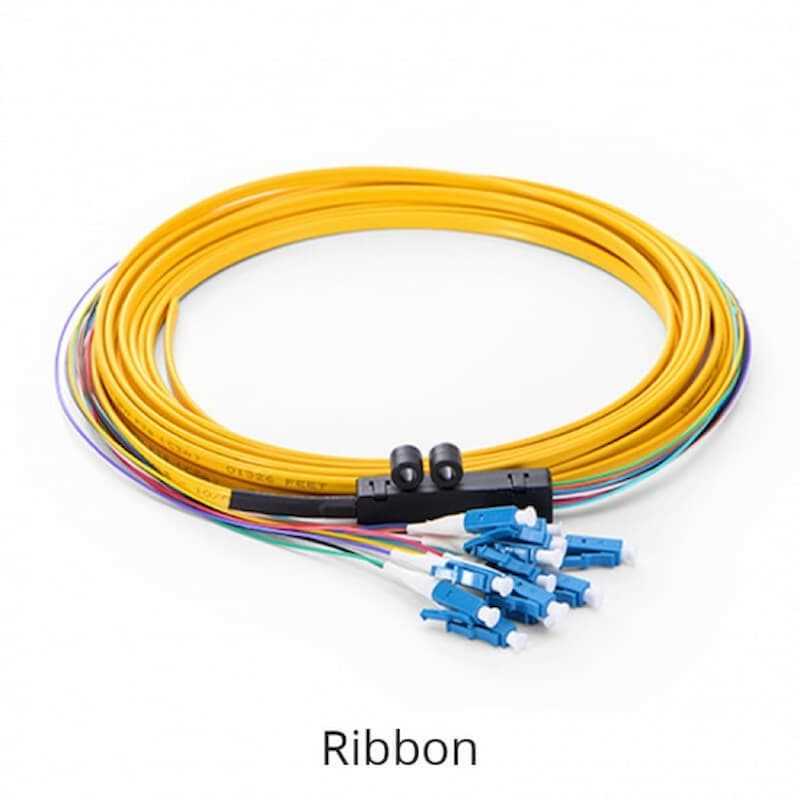

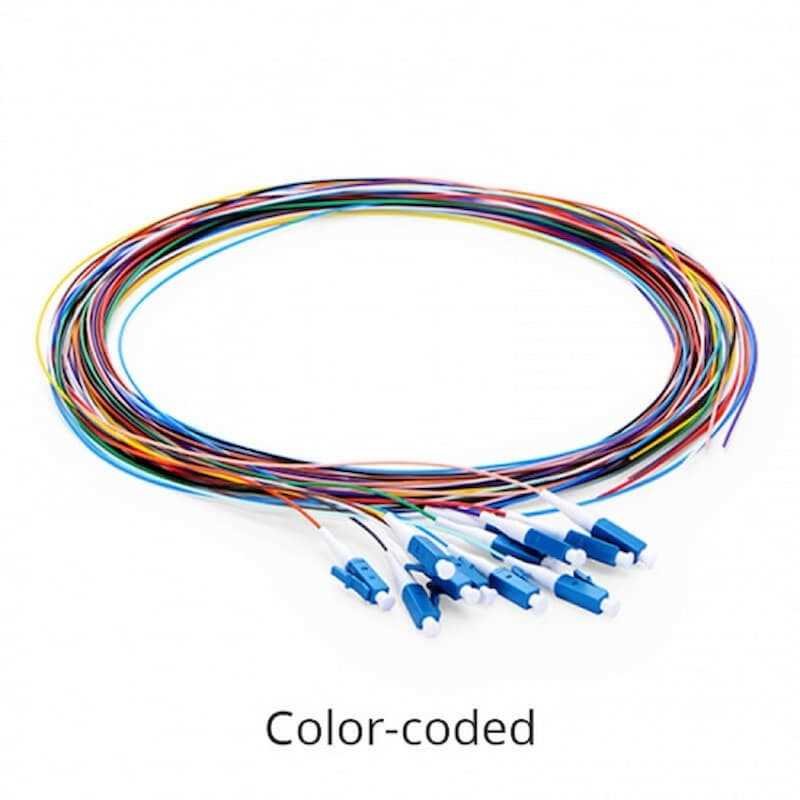

  • Cable Type: Color-coded/Bunch/Ribbon
  • Fiber Count: 4/6/8/12/24/48
  • Fiber Grade: G.657.A1
  • Min. Bend Radius (Color-coded): 10mm
  • Dynamic Min. Bend Radius (Bunch/Ribbon): 20D (mm)
  • Static Min. Bend Radius (Bunch/Ribbon): 10D (mm)
  • Insertion Loss (dB): =0.3
  • Return Loss (dB): UPC=50, APC=60 (LC/SC/ST/FC), UPC=55, APC=75 (LSH)
  • Attenuation at 1310nm: 0.36 dB/km
  • Attenuation at 1550nm:0.22 dB/km
  • Cable Jacket: PVC/LSZH/OFNP
  • Cable Diameter:0.9/2.0mm
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C













Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
No Warranty
