Customized 4-24 Fibers OM1/OM2 Multimode LC/SC/FC/ST/LSH Fiber Optic Pigtail - Orange


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)

    Features:
  • PVC/LSZH Flame-retardant Jacket with Tight-buffered Coating on Each Optical Fiber

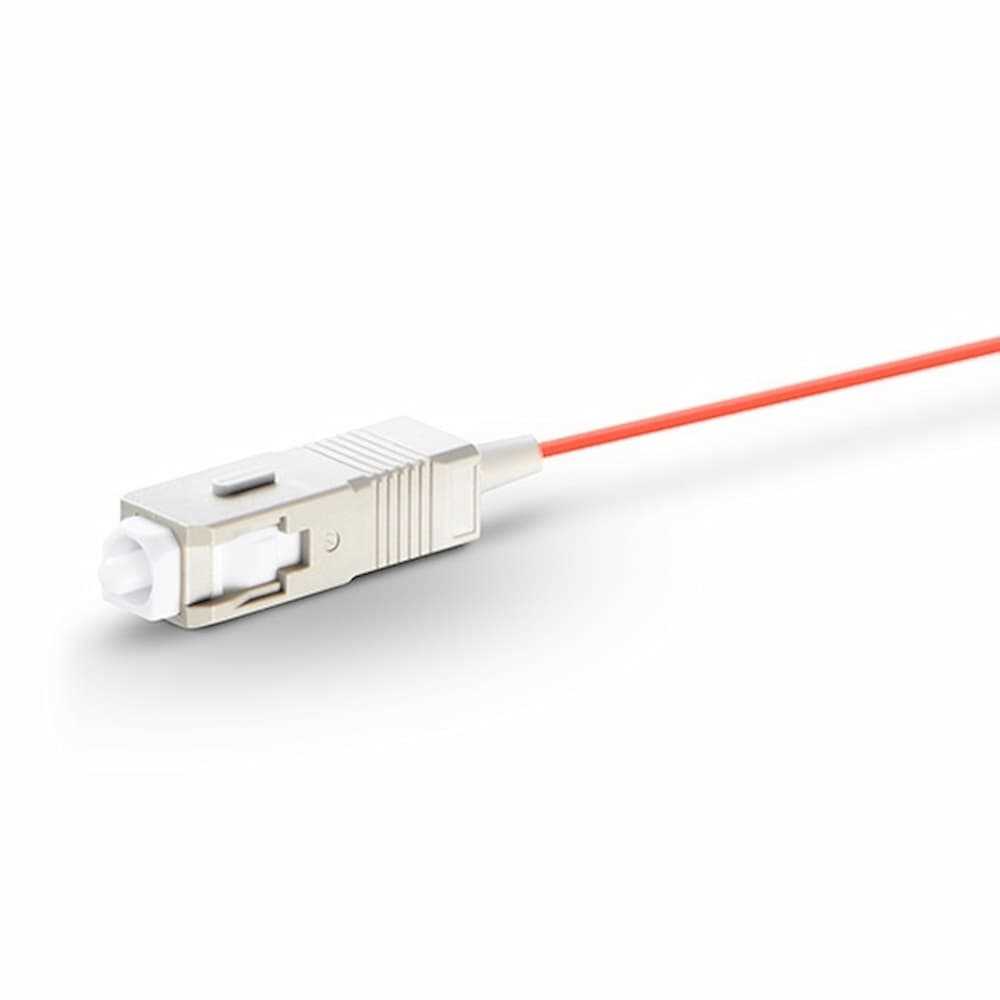

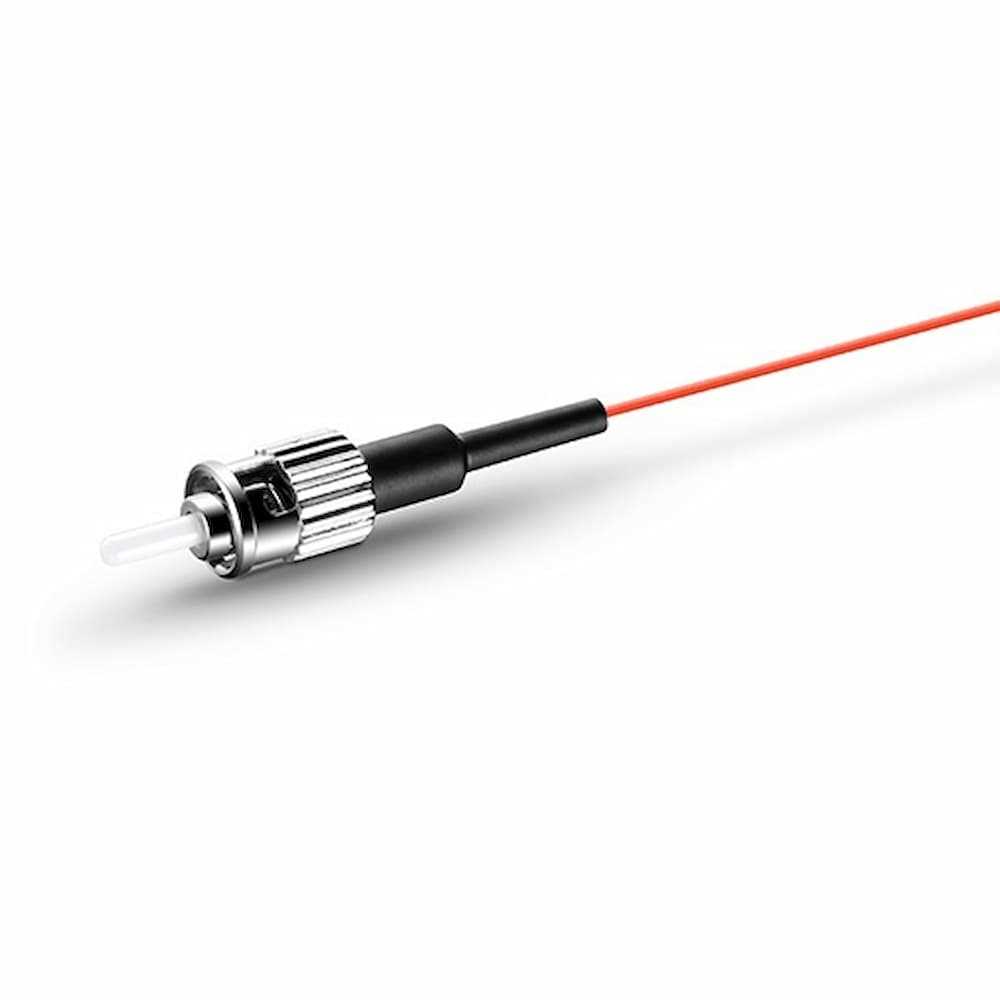

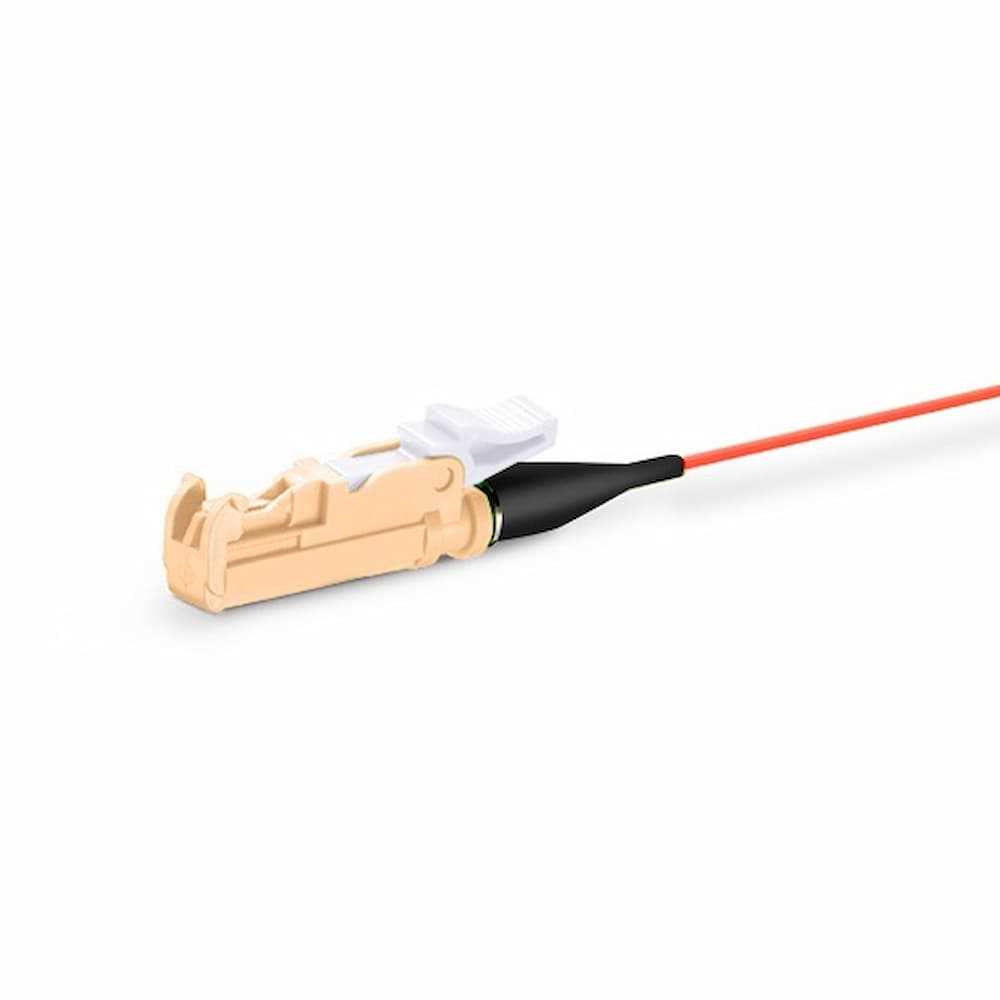

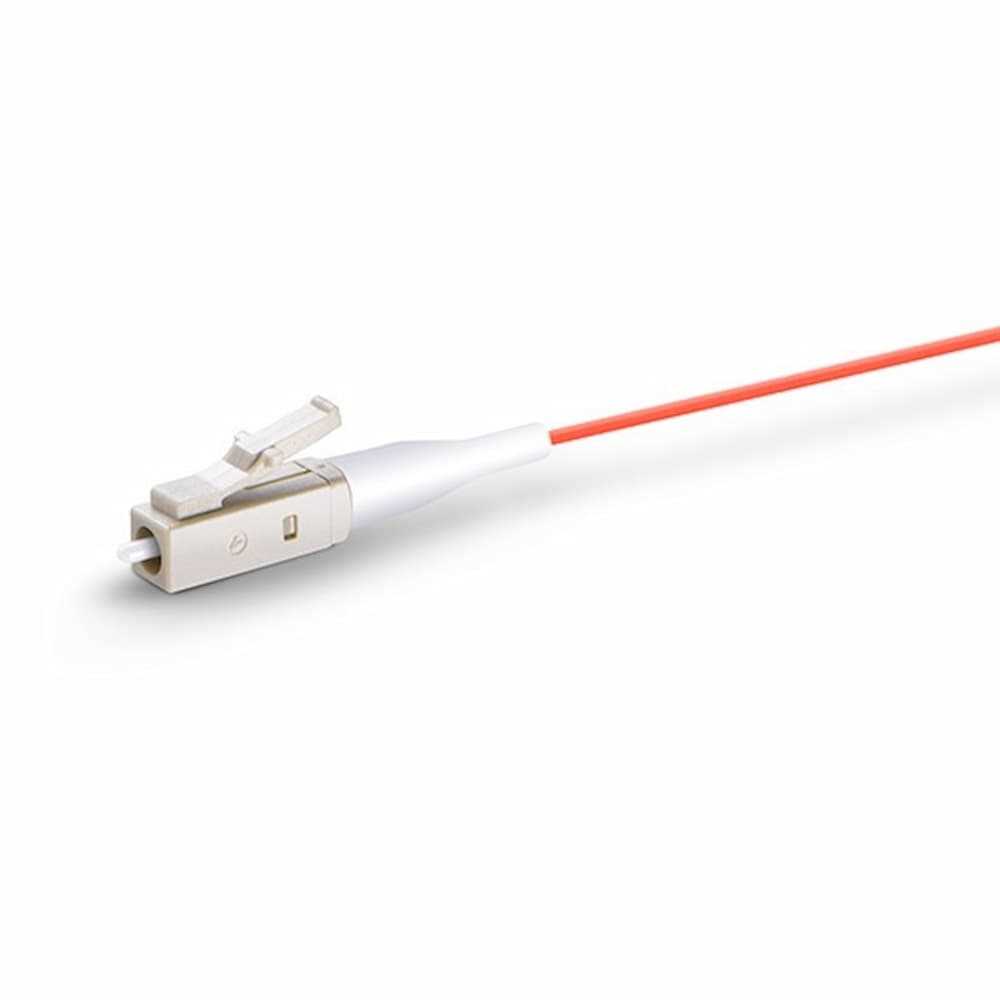

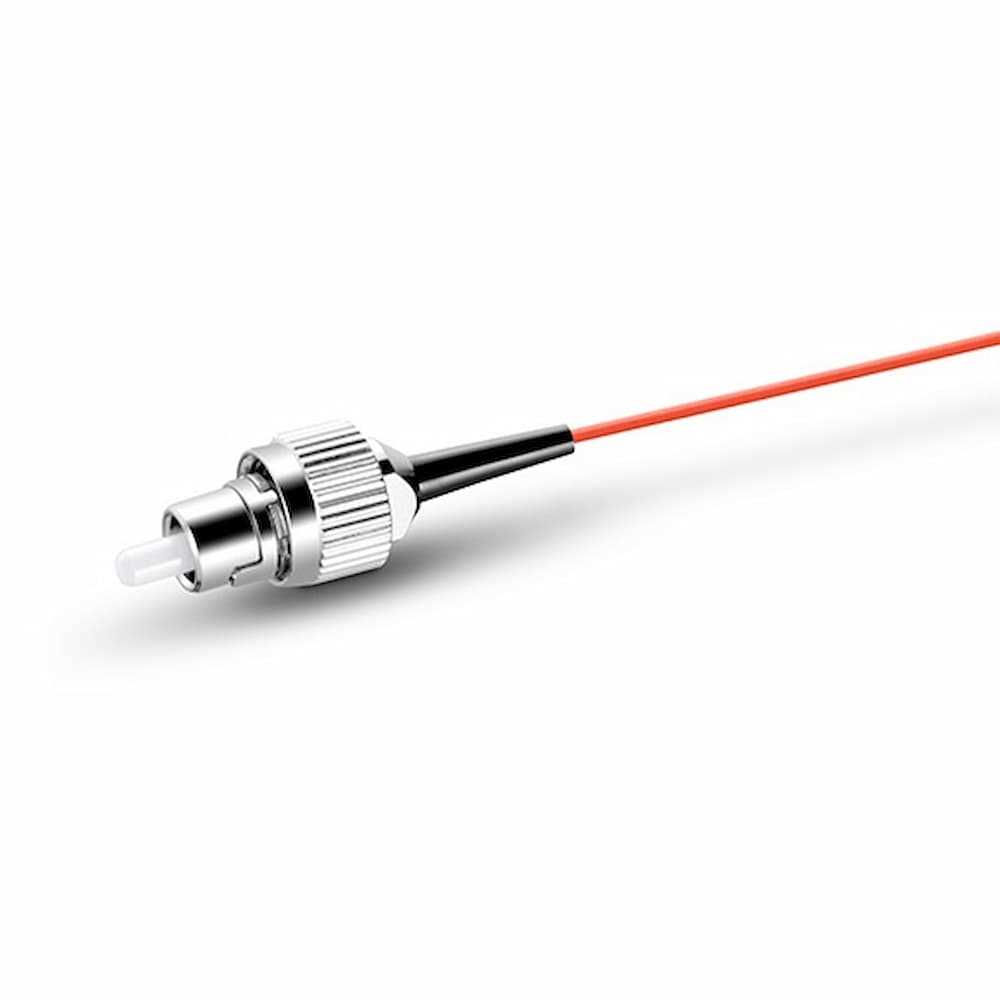

  • Available with LC, SC, FC, ST, LSH Connectors
  • Optical Testing Guarantees Insertion Loss and Returns Loss
  • Individually Colored to Easily Match Color-coded Fiber Cable That Will Be Spliced
  • Customized 24 Fibers Pigtails Are Serialized for Traceability
  • Pass All IEC-61754 and TIA-605 (FOCIS) Performance Requirements

    Specification:
  • Connector Type: LC/SC/FC/ST/LSH
  • Polish Type: UPC
  • Fiber Mode: OM1/OM2
  • Wavelength: 850/1300 nm

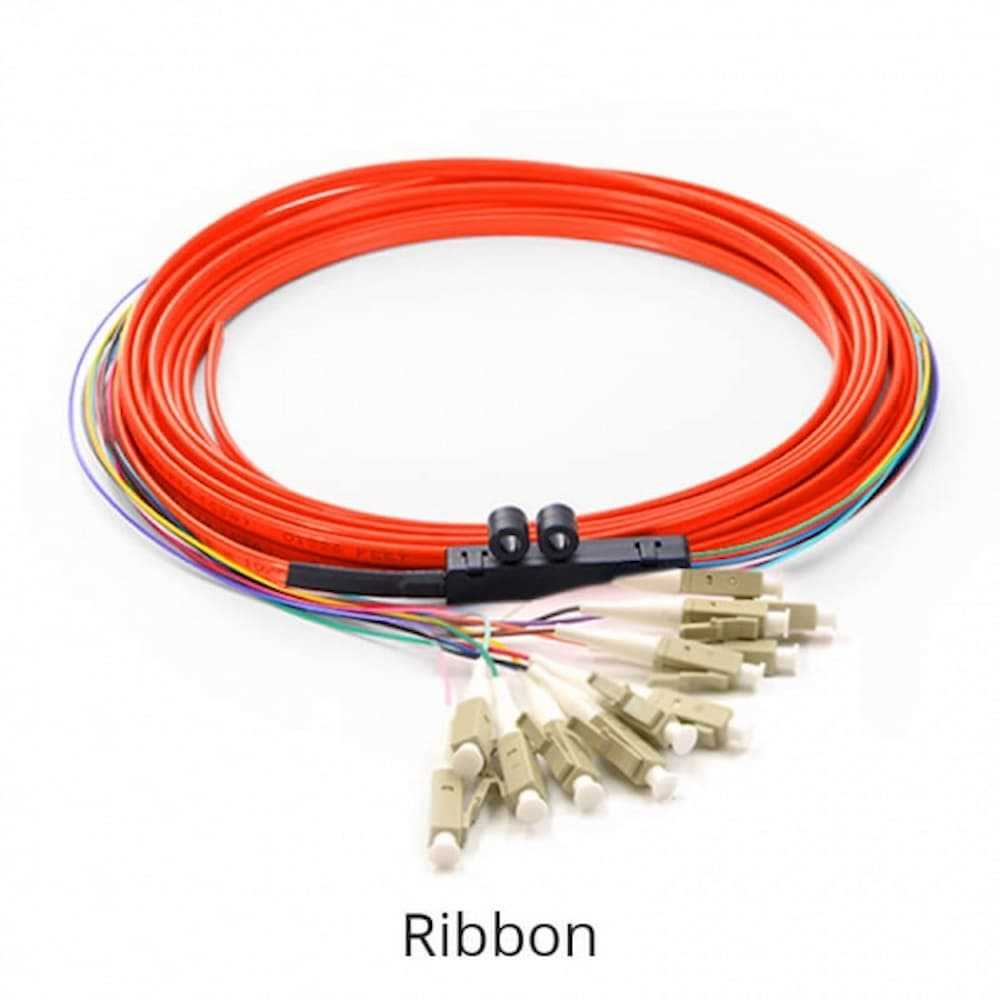

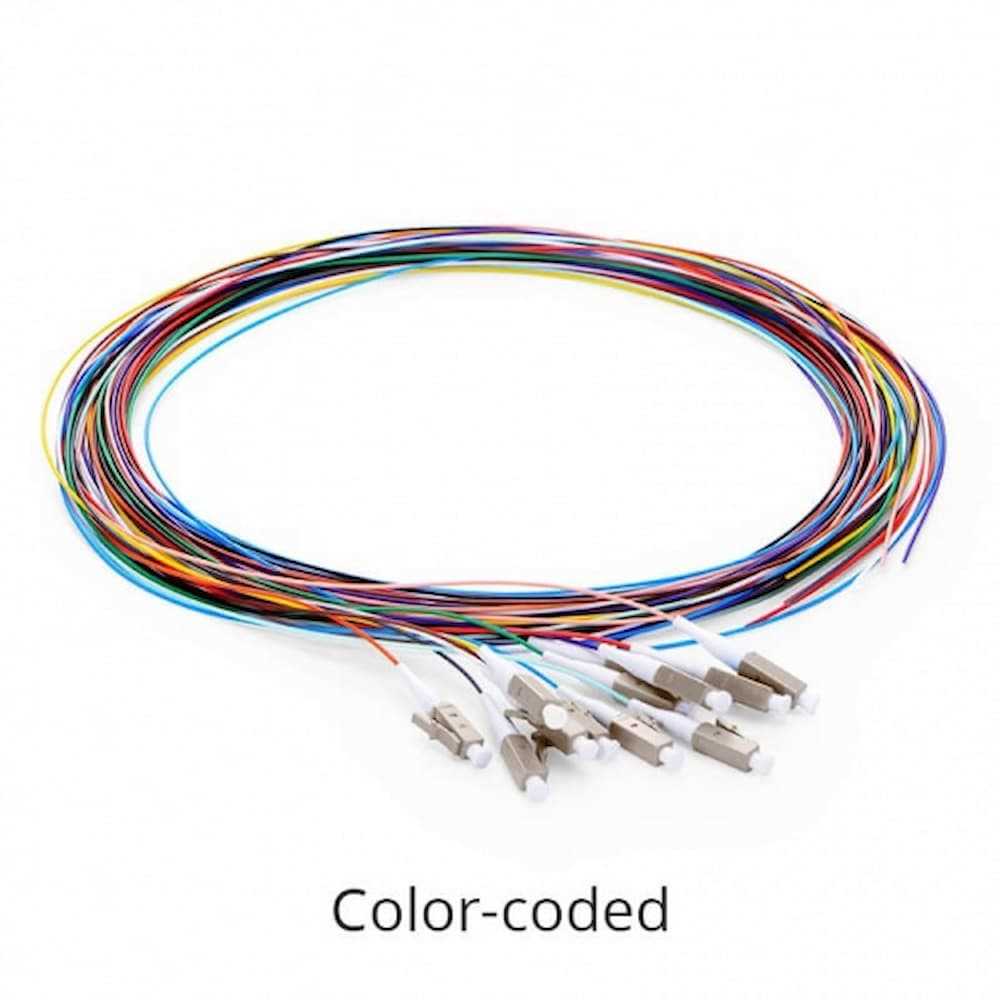

  • Cable Type: Color-coded/Bunch/Ribbon
  • Fiber Count: 4/6/8/12/24
  • Fiber Grade: G.651 (OM1)/Bend Insensitive (OM2)
  • Min. Bend Radius (Color-coded): 15 mm/7.5 mm
  • Dynamic Min. Bend Radius (Bunch/Ribbon): 20D (mm)
  • Static Min. Bend Radius (Bunch/Ribbon): 10D (mm)
  • Insertion Loss: =0.3 dB
  • Return Loss: =20 dB
  • Attenuation at 850nm: 3.0 dB/km
  • Attenuation at 1300nm: 1.0 dB/km
  • Cable Jacket: PVC/LSZH
  • Cable Diameter: 0.9/2.0 mm
  • Operating Temperature: -40~75°C
  • Storage Temperature: -45~85°C















Features

Brand:
No Brand
Color:
Orange
Conditions:
New
Warranty:
No Warranty
