Home Networking Power Customized 2 Fibers Indoor/Outdoor OS2 Single Mode Assembly 2.0mm Breakout Cable (Yellow)

Customized 2 Fibers Indoor/Outdoor OS2 Single Mode Assembly 2.0mm Breakout Cable (Yellow)


Brand:
No Brand

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to exchange)
  • 1 Year Warranty
      Specification:
  • Connector Type: LC/SC/ST/FC
  • Polish Type: UPC/APC
  • Fiber Mode: OS2 9/125µm
  • Fiber Count: 2 Fibers
  • Jacket Material: LSZH
  • Minimum Bend Radius: 20/10D (Dynamic/Static)
  • Breakout OD: 2.0mm
  • Trunk OD: 5.0mm
  • Insertion Loss: =0.3dB
  • Return Loss: UPC=50dB, APC=60dB
  • Cable Type: Tight Buffered
  • Maximum Tension of Pulling Eye: 245N
  • Fiber Grade: G.657.A1
  • Operating Temperature: -20~70°C
      Details:
  • Feature a UV Stabilized and Moisture Resistant Outer Jacket

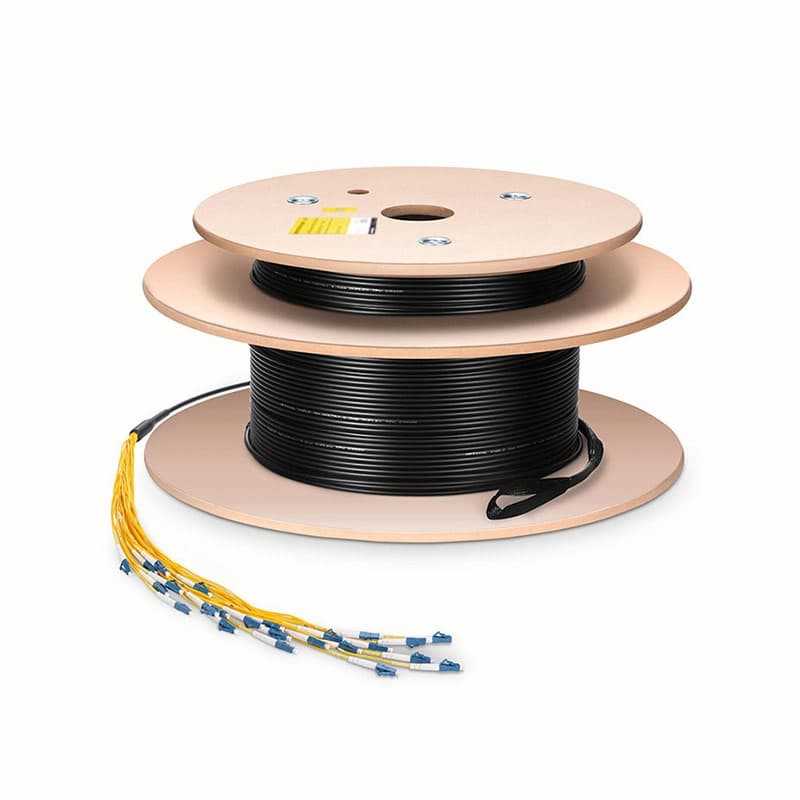

  • Available from 1-24 Fibers with Variable Length

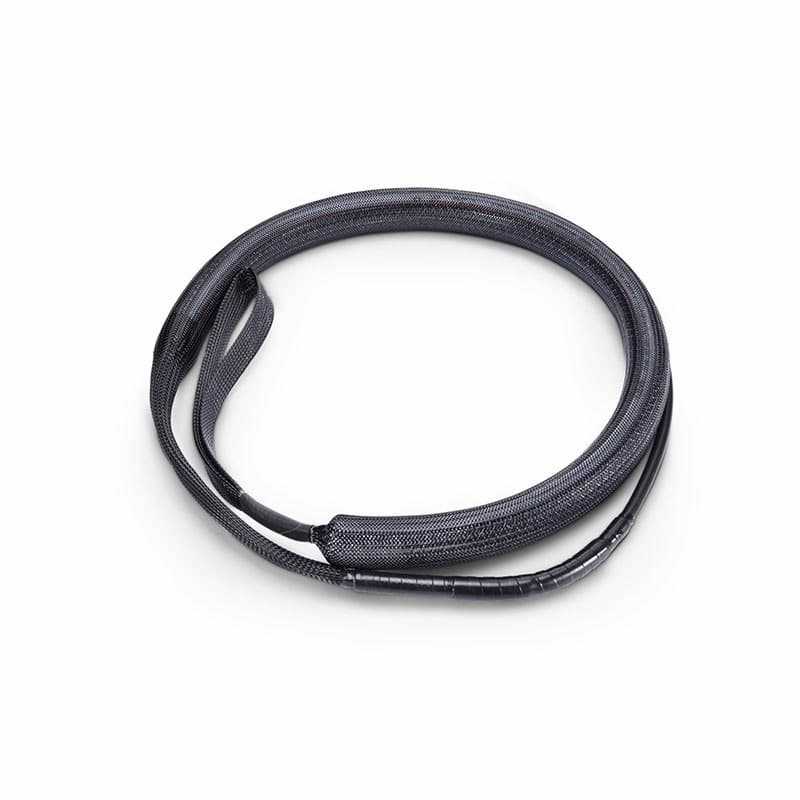

  • Custom Cable with Pre-terminated Connectors, Breakout Types and Pulling Eye
  • Optical Performance Test for Normal Network Connections
  • Meet the IEC 60794-1 and IEC 60794-2-20 Standard
  • Used for Outdoor Conduits and Corridor Cabling (No Long-term Humid Environment)

Features

Brand:
No Brand
Color:
Yellow
Conditions:
New
Warranty:
1 Year
