Home Networking Power Customized 2-24 Fibers OS2 Single Mode LC/SC/FC/ST/LSH Armored 3.0mm Fiber Optic Pigtail (Blue)

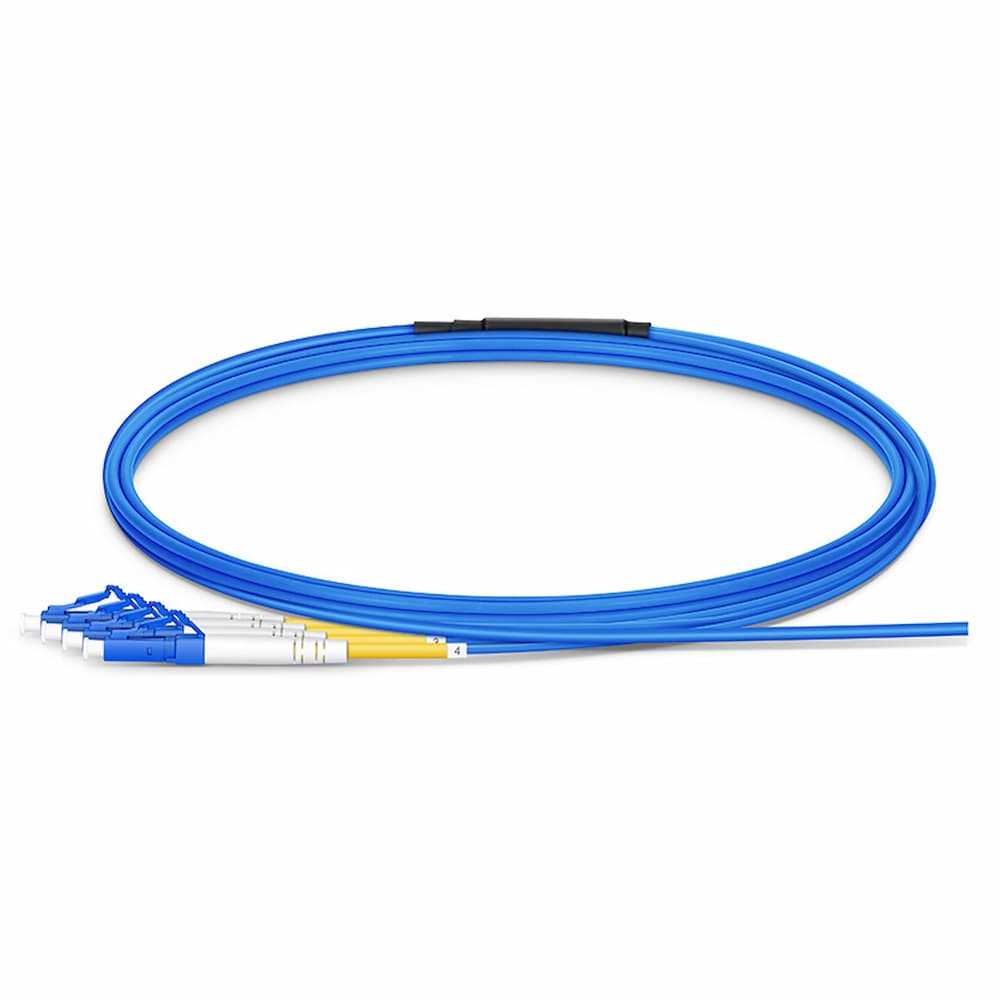

Customized 2-24 Fibers OS2 Single Mode LC/SC/FC/ST/LSH Armored 3.0mm Fiber Optic Pigtail (Blue)


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
      Features
  • PVC/LSZH Flame-retardant Jacket with Tight-buffered Coating on Each Optical Fiber
  • Available with LC, SC, FC, ST, LSH Connectors
  • Stainless Steel Tube Provides Additional Crush and Rodent Protection
  • Customized 2-24 Fibers Pigtails Are Serialized for Traceability
  • Optical Testing Guarantees Insertion Loss and Returns Loss
  • Pass all IEC-61754 and TIA-604 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems
     Specification
  • Connector A: LC/SC/FC/ST/LSH
  • Connector B: Unterminated
  • Polish Typ: UPC/APC
  • Fiber Count: 2/4/6/8/12/24
  • Fiber Mode: OS2 9/125 µm
  • Cable Jacket: PVC/LSZH
  • Fiber Grade: G.657.A1
  • Min. Bend Radius (Fiber Cable): 10/5D (Dynamic/Static)
  • Cable Diameter: 3.00mm
  • Cable Color: Blue
  • Attenuation at 1310nm: 0.35 dB/Km
  • Attenuation at 1550nm: 0.25 dB/Km

Features

Brand:
No Brand
Color:
Blue
Conditions:
New
Warranty:
No Warranty
