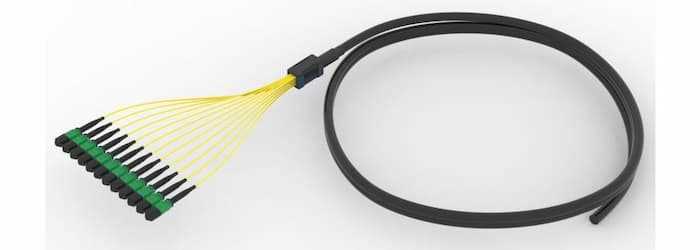

Commscope UKGMXUCSM Trunk Cable Assembly (144 Fiber)


Brand:

Specifications

   Product Details:
  • Brand: Commscope
  • Model: UKGMXUCSM
   Specification:
   Product Classification:
  • Regional Availability: Asia | Australia/New Zealand | Europe | Latin America | Middle East/Africa | North America
  • Portfolio: CommScope®
  • Product Type: Fiber trunk cable assembly
  • Ordering Note: For additional jacket colors, please contact a CommScope Sales Representative | For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration
   General Specifications:
  • Color, boot A: Black
  • Color, connector A: Green
  • Construction Type: Armored | Rollable ribbon
  • Furcation Color: Yellow
  • Interface, Connector A: MPO-12/APC Male
  • Interface, Connector B: Unterminated
  • Jacket Color: Black
  • Polarity: Method B Enhanced (ULL)
  • Fibers per Subunit, quantity: 12
  • Total Fibers, quantity: 144
   Mechanical Specifications:
  • Cable Retention Strength, maximum: 11.24 lb @ 0 ° | 4.40 lb @ 90 °
   Optical Specifications:
  • Fiber Mode: Singlemode
  • Fiber Type: G.657.A2, TeraSPEED®
   Environmental Specifications:
  • Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
  • Environmental Space: Dual Rated LSZH/Riser
   Regulatory Compliance/Certifications:
  • Agency: Classification
  • ROHS: Compliant
  • CHINA-ROHS: Below maximum concentration value
  • UK-ROHS: Compliant
   Product Support:
  • Customer and Technical Support, Software/Firmware, Repair Services
  • Technical Training for CommScope
   Dimensions:
  • Breakout Length: 33 in
  • Cable Assembly Length Range (m): 3 – 999
  • Cable Assembly Length Range (ft): 10 – 999

Features

Brand:
Commscope
Conditions:
New
Warranty:
No Warranty
