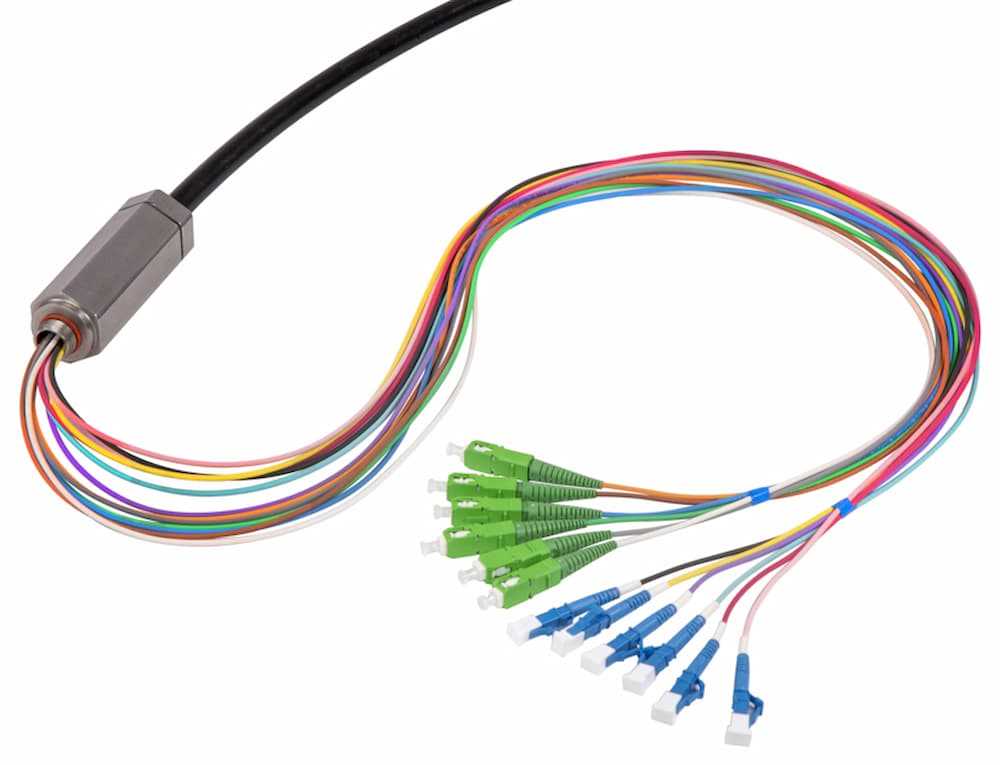

CommScope NA-J300-2BS Fiber Optic Node Service Cable Assembly- Black


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: CommScope
  • Model: NA-J300-2BS
  • Color: Black
      Specifications:
  • Breakout Direction: Straight
  • Breakout Option: Feed-through housing connector
  • Cable Color: Black
  • Cable Type: Armored - Round - Loose Tube
  • Color, LC/UPC boot: White
  • Color, LC/UPC connector: Blue
  • Construction Type: Breakout, armored
  • Interface, Connectors side A: SC/APC + LC/UPC
  • Interface, Connectors side B: Unterminated
  • Color, SC/APC boot: Green
  • Color, SC/APC connector: Green
  • Quantity, LC/UPC connectors: 6
  • Quantity, SC/APC connectors: 6
  • Total Fibers, quantity: 12
      Material Specifications:
  • Jacket Material: PE
      Mechanical Specifications:
  • Minimum Bend Radius, loaded: 439 mm | 17.283 in
  • Minimum Bend Radius, unloaded: 115 mm | 4.528 in
  • Tensile Load, long term, maximum: 800 N | 179.847 lbf
  • Tensile Load, short term, maximum: 2700 N | 606.984 lbf
  • Cable Crush Resistance, maximum: 44 N/mm | 251.246 Lb/in
      Environmental Specifications:
  • Installation temperature: -30 °C to +70 °C (-22 °F to +158 °F)
  • Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
  • Storage Temperature: -40 °C to +75 °C (-40 °F to +167 °F)
  • Environmental Space: Outdoor, buried
  • Jacket UV Resistance: UV stabilized
  • Qualification Standards: Telcordia GR-326
      Optical Specifications:
  • Fiber Mode: Single Mode
  • Fiber Type: G.652.D and G.657.A1
  • Insertion Loss, maximum, LC/UPC connectors: 0.4dB
  • Insertion Loss, maximum, SC/APC connectors: 0.4dB
  • Return Loss, minimum, LC/UPC connectors: 55dB
  • Return Loss, minimum, SC/APC connectors: 65dB
      Product Support:
  • Customer and Technical Support, Software/Firmware, Repair Services
  • Technical Training for CommScope
      Dimensions:
  • Breakout Length, connector A: 914.4 mm | 36 in
  • Cable Assembly Length Range (m): 1 – 900
  • Cable Assembly Length Range (ft): 1 – 3000
  • Cable Outer Diameter: 11.5 mm (0.45 in)
      Features:
  • Node Service Cable Assemblies are factory-terminated for use in node installations
  • Environmentally sealed and tested
  • Designed for fast installation between splicing in a closure transitioning to a node

Features

Brand:
Commscope
Color:
Black
Conditions:
New
Warranty:
No Warranty
