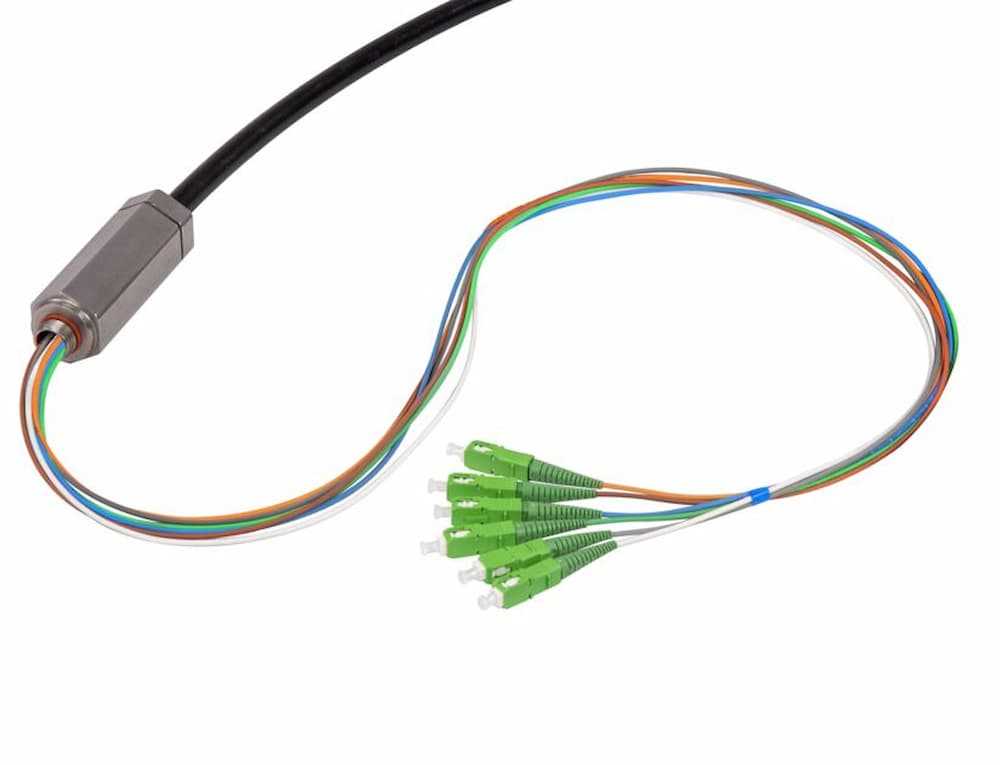

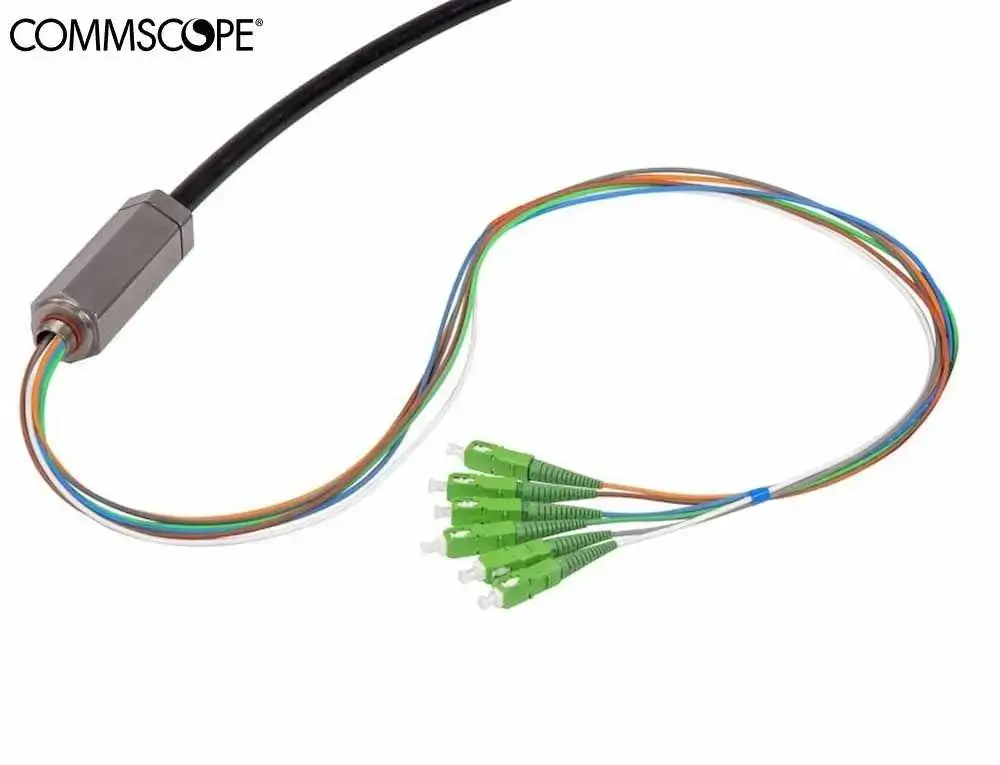

Commscope NA-A200-1BS Node Service Cable Assembly (6 Fibers)


Brand:

Specifications

        Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: Commscope
  • Model: NA-A200-1BS
        Specification:
        Product Classification:
  • Regional Availability: Australia/New Zealand | EMEA | Latin America | North America
  • Product Type: Fiber node service cable assembly
  • Product Series: NA
        General Specifications:
  • Breakout Direction: Straight
  • Breakout Option: Feed-through housing connector
  • Cable Color: Black
  • Cable Type: Armored - Round - Loose Tube
  • Construction Type: Breakout, armored
  • Interface, Connectors side A: SC/APC
  • Interface, Connectors side B: Unterminated
  • Color, SC/APC boot: Green
  • Color, SC/APC connector: Green
  • Quantity, SC/APC connectors: 6
  • Total Fibers, quantity: 6
        Material Specifications:
  • Jacket Material: PE
        Mechanical Specifications:
  • Minimum Bend Radius, loaded: 439 mm | 17.283 in
  • Minimum Bend Radius, unloaded: 115 mm | 4.528 in
  • Tensile Load, long term, maximum: 800 N | 179.847 lbf
  • Tensile Load, short term, maximum: 2700 N | 606.984 lbf
  • Cable Crush Resistance, maximum: 44 N/mm | 251.246 lb/in
        Optical Specifications:
  • Fiber Mode: Singlemode
  • Fiber Type: G.652.D and G.657.A1
  • Insertion Loss, maximum, SC/APC connectors: 0.4 dB
  • Return Loss, minimum, SC/APC connectors: 65 dB
        Environmental Specifications:
  • Installation temperature: -30 °C to +70 °C (-22 °F to +158 °F)
  • Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
  • Storage Temperature: -40 °C to +75 °C (-40 °F to +167 °F)
  • Environmental Space: Outdoor, buried
  • Jacket UV Resistance: UV stabilized
  • Qualification Standards: IEC 60529:2001, IP68 | Telcordia GR-326
        Packaging And Weights:
  • Packaging quantity: 1
        Regulatory Compliance/Certifications:
  • Agency: Classification
        Product Support:
  • Customer and Technical Support, Software/Firmware, Repair Services
  • Technical Training for CommScope
        Dimensions:
  • Breakout Length, connector A: 635 mm | 25 in
  • Cable Assembly Length Range (m): 1 – 240
  • Cable Assembly Length Range (ft): 1 – 790
  • Cable Outer Diameter: 11.5 mm (0.45 in)




Features

Brand:
Commscope
Conditions:
New
Warranty:
No Warranty
