Home Networking Power CommScope (MHD-ACC-F12N-0010F) Fiber Test Cable Assembly - Black

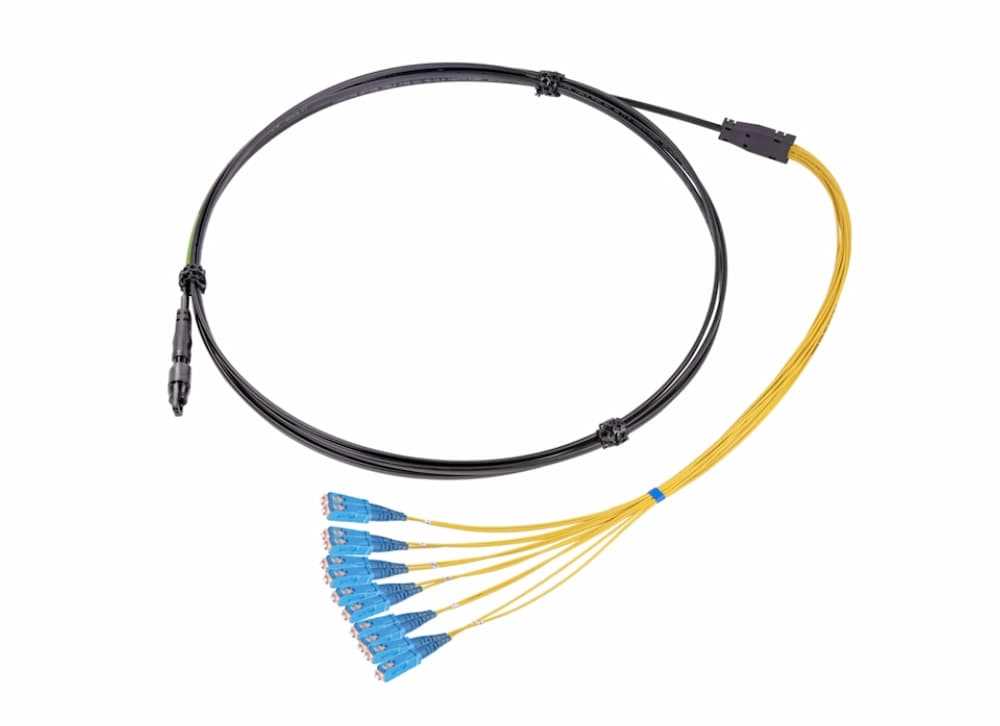

CommScope (MHD-ACC-F12N-0010F) Fiber Test Cable Assembly - Black


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, easy to exchange)
  • Brand: CommScope
  • Model: MHD-ACC-F12N-0010F
  • Color: Black

    Specification:
    General:
  • Connector A, Quantity: 1
  • Color, boot A: Black
  • Color, connector A: Black
  • Connector B, quantity: 12
  • Color, boot B: Blue
  • Color, connector B: Blue
  • Interface, Connector A: Hardened multi-fiber (HMFOC) plug
  • Interface Feature, connector A: Female
  • Interface, Connector B: SC/APC
  • Jacket Color: Black
  • Total Fibers, quantity: 12

    Material:
  • Jacket Material: Dielectric - Flat

    Mechanical:
  • Minimum Bend Radius, loaded: 88.9 mm | 3.5 in
  • Minimum Bend Radius, unloaded: 63.5 mm | 2.5 in

    Optical:
  • Fiber Mode: Singlemode
  • Fiber Type: G.657.A2
  • Insertion Loss, maximum, connector A: 0.45 dB
  • Insertion Loss, maximum, connector B: 0.4 dB
  • Return Loss, minimum, connector A: 65 dB
  • Return Loss, minimum, connector B: 65 dB

    Environmental:
  • Installation temperature: -30 °C to +70 °C (-22 °F to +158 °F)
  • Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
  • Storage Temperature: -40 °C to +75 °C (-40 °F to +167 °F)
  • Environmental Space: Outdoor
  • Jacket UV Resistance: UV stabilized

    Dimensions:
  • Height Over Jacket: 4.5 mm | 0.177 in
  • Breakout Length: 28 in
  • Cord Length: 30.48 m | 100.000 ft
  • Diameter Over Jacket: 8 mm | 0.315 in





Features

Brand:
Commscope
Color:
Black
Conditions:
New
Warranty:
No Warranty
