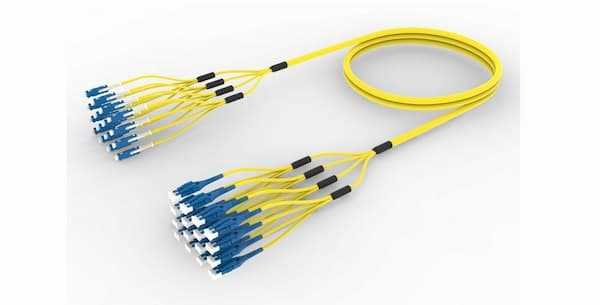

Commscope FPM-07/K-AT056M-25/39 Fiber Distribution Cable Assembly


Brand:

Specifications

   Product Details:
  • Brand: Commscope
  • Model: FPM-07/K-AT056M-25/39
   Specification:
   Product Classification:
  • Regional Availability: Latin America | North America
  • Product Type: Fiber distribution cable assembly
  • Product Series: FPM
   General Specifications:
  • Connector A, quantity: 24
  • Color, boot A: Blue
  • Color, connector A: Blue
  • Connector B, quantity: 24
  • Color, boot B: Blue
  • Color, connector B: Blue
  • Construction Type: Stranded
  • Interface, Connector A: LC/UPC
  • Interface, Connector B: SC/UPC
  • Jacket Color: Yellow
  • Total Fibers, quantity: 24
   Optical Specifications:
  • Fiber Mode: Singlemode
  • Fiber Type: OS2
  • Insertion Loss, maximum, connector A: 0.3 dB
  • Insertion Loss, maximum, connector B: 0.2 dB
  • Return Loss, minimum, connector A: 55 dB
  • Return Loss, minimum, connector B: 55 dB
   Environmental Specifications:
  • Environmental Space: Plenum
   Product Support:
  • Customer and Technical Support, Software/Firmware, Repair Services
  • Technical Training for CommScope
  Dimensions:
  • Breakout Length, connector A: 635 mm | 25 in
  • Breakout Length, connector B: 990.6 mm | 39 in
  • Cord Length: 56 m | 183.727 ft

Features

Brand:
Commscope
Cable Length:
50Meter
Color:
Yellow
Conditions:
New
Warranty:
No Warranty
