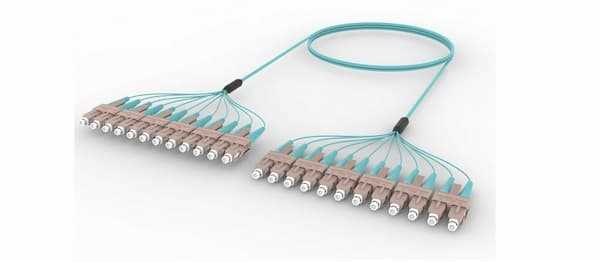

Commscope F4XSCSCAD Ruggedized fanout Cable, Low Smoke Zero Halogen - Aqua


Brand:

Specifications

   Product Details:
  • Brand: Commscope
  • Model: F4XSCSCAD
   Specification:
   Product Classification:
  • Portfolio: CommScope®
  • Product Type: Ruggedized fanout
  • Product Brand: SYSTIMAX InstaPATCH® 360
  • Ordering Note: For lengths greater than 999 ft (304 m), orders must be in meters, Minimum length may vary based on cable configuration
   General Specifications:
  • Color, boot A: Aqua
  • Color, connector A: Beige
  • Color, boot B: Aqua
  • Color, connector B: Beige
  • Construction Type: Stranded
  • Furcation Color: Aqua
  • Interface, Connector A: SC/UPC
  • Interface, Connector B: SC/UPC
  • Jacket Color: Aqua
  • Fibers per Subunit, quantity: 12
  • Total Fibers, quantity: 12
   Mechanical Specifications:
  • Cable Retention Strength, maximum: 11.24 lb @ 0 ° | 4.40 lb @ 90 °
   Optical Specifications:
  • Fiber Mode: Multimode
  • Fiber Type: OM4, LazrSPEED®
   Environmental Specifications:
  • Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
  • Environmental Space: Indoor | Low Smoke Zero Halogen (LSZH)
   Product Support:
  • Customer and Technical Support, Software/Firmware, Repair Services
  • Technical Training for CommScope
   Dimensions:
  • Cable Assembly Length Range (m): 3 – 305
  • Cable Assembly Length Range (ft): 8 – 999

Features

Brand:
Commscope
Color:
Aqua
Conditions:
New
Warranty:
No Warranty
