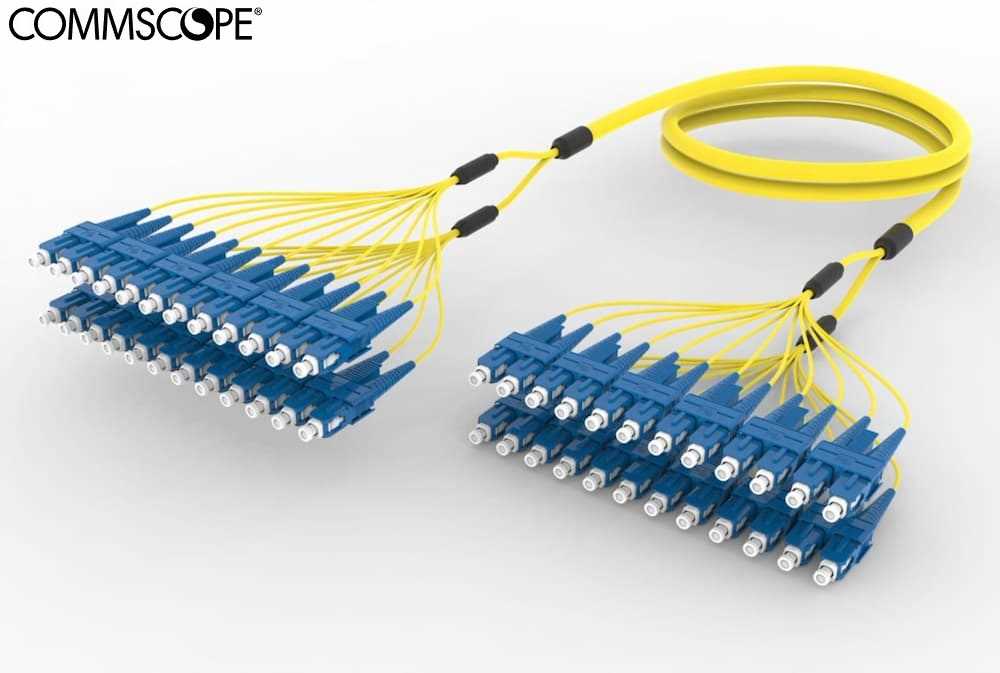

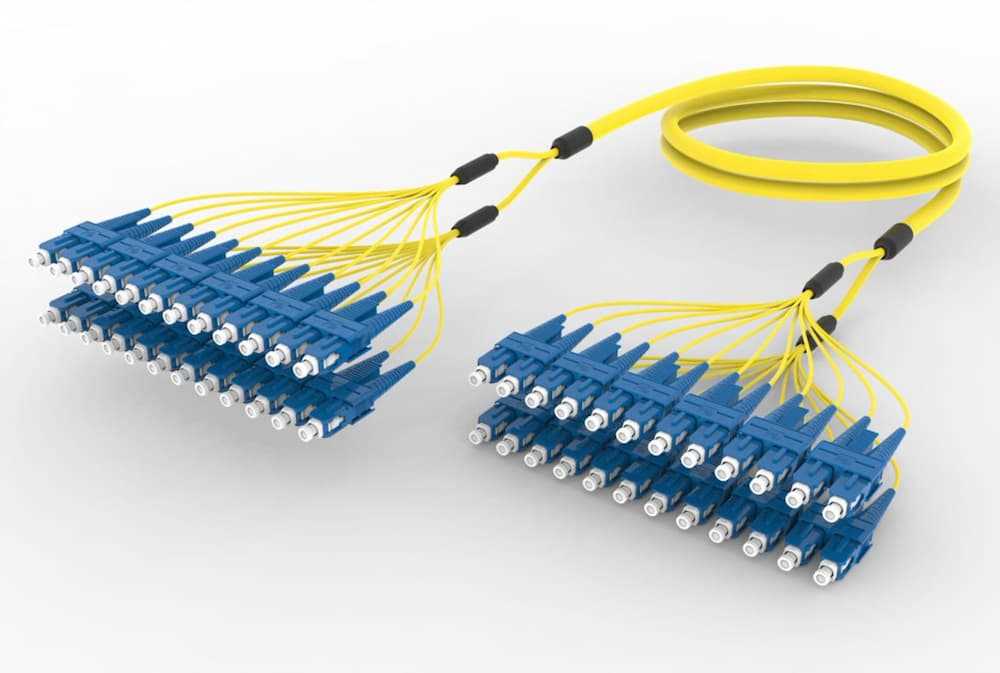

Commscope F4WSCSCAF Ruggedized Fanout Cable


Brand:

Specifications

         Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • Brand: Commscope
  • Model: F4WSCSCAF
        Specification:
        Product Classification:
  • Regional Availability: Europe | Middle East/Africa
  • Portfolio: CommScope®
  • Product Type: Ruggedized fanout
  • Ordering Note: For lengths greater than 999 ft (304 m), orders must be in meters | Minimum length may vary based on cable configuration | Not available in the United States or Canada
        General Specifications:
  • Color, boot A: Blue
  • Color, connector A: Blue
  • Color, boot B: Blue
  • Color, connector B: Blue
  • Construction Type: Stranded
  • Furcation Color: Yellow
  • Interface, Connector A: SC/UPC
  • Interface, Connector B: SC/UPC
  • Jacket Color: Yellow
  • Fibers per Subunit, quantity: 12
  • Total Fibers, quantity: 24
        Mechanical Specifications:
  • Cable Retention Strength, maximum: 11.24 lb @ 0 ° | 4.40 lb @ 90 °
        Optical Specifications:
  • Fiber Mode: Singlemode
  • Fiber Type: G.652.D | G.657.A1, TeraSPEED®
        Environmental Specifications:
  • Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
  • Environmental Space: Indoor | Low Smoke Zero Halogen (LSZH)
        Regulatory Compliance/Certifications:
  • Agency: Classification
  • ROHS: Compliant
  • CHINA-ROHS : Below maximum concentration value
  • UK-ROHS: Compliant
        Product Support:
  • Customer and Technical Support, Software/Firmware, Repair Services
  • Technical Training for CommScope
        Dimensions:
  • Cable Assembly Length Range (m): 3 – 305
  • Cable Assembly Length Range (ft): 8 – 999




Features

Brand:
Commscope
Conditions:
New
Warranty:
No Warranty
