Coherent FTLF6836P1BNL 25G DWDM 15km Multi-Rate Tunable SFP28 Transceiver with APD Rx (Silver)


Brand:

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: Coherent
  • Model: FTLF6836P1BNL
   Description

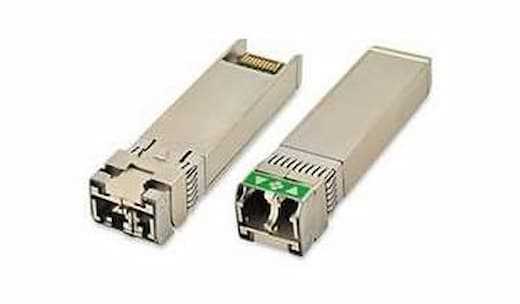

  • FTLF6836P1BNL transceivers are Enhanced Small Form Factor Pluggable Tunable SFP28 transceivers designed for use in 25Gb/s links up to 15km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432, SFF-8690, and support 25GbE and CPRI 10 over 15km fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
   Features & Benefits
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • RoHS compliant
  • Supports 25.78Gb/s Ethernet and 24.33Gb/s CPRI 10
  • Up to 15km link length
  • DWDM in 100GHz, ITU-based channel spacing (C-Band)
  • -40 / 85°C operating temperature range; module supports cold start at -40°C
  • Single 3.3V power supply
  • Monolithic MZM Tunable TOSA
  • Retimed electrical interface
  • Dual LC connector duplex
   Technical Specifications
  • Connector: LC
  • Data Rate (max): 25.78 Gb/s
  • Diagnostics: Digital
  • Distance: 15 km
  • Form Factor: SFP28
  • High End Case Temperature (°C): 85
  • Low End Case Temperature (°C): -40
  • Protocol: 25G Ethernet Compatible, Wireless CPRI Compatible
  • Receiver: APD
  • Transmitter: Tunable + InP MZM
  • Voltage Supply: 3.3
  • Wavelength: C-Band DWDM Tunable


Features

Brand:
Coherent
Color:
Silver
Conditions:
New
Warranty:
1 Year
