Home Networking Network Switches CiscoWS-C3850-24P-L 24-Port PoE+ Gigabit LAN Switch

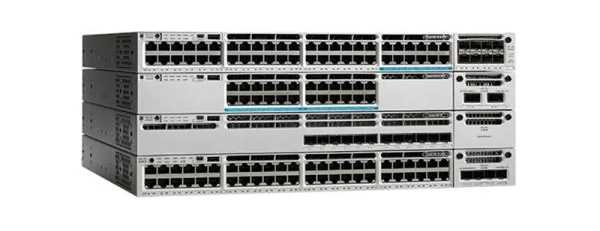

CiscoWS-C3850-24P-L 24-Port PoE+ Gigabit LAN Switch

Brand:

The Cisco WS-C3850-24P-L is a reliable enterprise Layer 2 switch featuring 24 Gigabit PoE+ ports, 435W PoE budget, StackWise-480 technology, and LAN Base software for secure and scalable business networking.

OVERVIEW

  • The Cisco WS-C3850-24P-L Catalyst 3850 Series Switch is designed for businesses seeking secure, high-performance, and scalable wired network infrastructure. Featuring 24 Gigabit Ethernet PoE+ ports and Cisco StackWise-480 technology, this switch enables efficient deployment of IP phones, wireless access points, surveillance systems, and connected business devices.
  • Built with the Cisco LAN Base feature set, the WS-C3850-24P-L delivers enterprise-grade Layer 2 switching, intelligent traffic prioritization, enhanced security, and simplified network management. With a switching capacity of 92 Gbps and forwarding performance of 68.4 Mpps, it ensures stable connectivity for growing office and campus environments.
  • The switch supports up to 435W PoE power delivery, allowing centralized power management for multiple network devices without requiring separate power adapters. Designed in a compact 1U rack-mountable form factor, it is ideal for SMEs, educational institutions, branch offices, and enterprise edge deployments in Singapore.

USE CASES

  • Ideal for SMB and enterprise office deployments requiring stable Gigabit connectivity.
  • Provides centralized PoE+ power for VoIP phones and communication devices.
  • Supports enterprise wireless infrastructure with integrated PoE+ capability.
  • Powers and connects IP cameras for commercial security environments.
  • Suitable for schools and universities deploying scalable wired and wireless networks.
  • Enables secure and efficient connectivity for distributed business locations.

KEY FEATURES

  • 24 x Gigabit Ethernet PoE+ ports
  • 435W available PoE power budget
  • Cisco LAN Base Layer 2 feature set
  • StackWise-480 technology with 480 Gbps bandwidth
  • High-performance 92 Gbps switching capacity
  • Forwarding rate up to 68.4 Mpps
  • Enterprise-grade security and traffic management
  • Compact 1U rack-mountable design

TECHNICAL SPECIFICATIONS

  • Brand: Cisco
  • Model: WS-C3850-24P-L
  • Product Series: Cisco Catalyst 3850
  • Device Type: Layer 2 Managed Switch
  • Feature Set: LAN Base
  • Enclosure Type: Rack-Mountable – 1U
  • Maximum Stack Units: Up to 9 Switches
  • FNF Entries: 24,000 Flows
  • Maximum VLAN IDs: 1,000
  • MAC Address Table Size: 32K
  • CPU: Multicore CPU
  • RAM: 4 GB
  • Flash Memory: 2 GB
  • Number of APs per Switch/Stack: 100
  • Wireless Clients per Switch/Stack: 2,000
  • Maximum WLANs per Switch: 64
