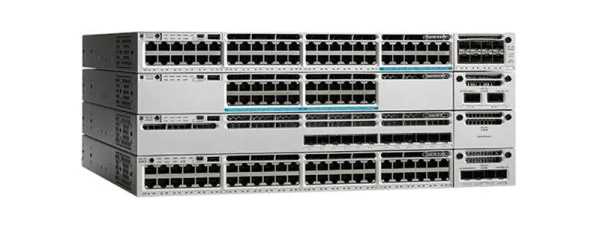

Cisco WS-C3850-24UW-S 24-Port UPOE Switch

Brand:

The Cisco WS-C3850-24UW-S is an enterprise-grade Catalyst 3850 switch featuring 24 Cisco UPOE Gigabit ports, IP Base software, 800W PoE power, and integrated wireless controller capability with 5 AP license support. Designed for scalable business networking, it delivers high-speed connectivity, centralized wireless management, and reliable power distribution for modern enterprise environments.

OVERVIEW

  • The Cisco WS-C3850-24UW-S Catalyst 3850 Series Switch combines enterprise-class wired switching, advanced wireless convergence, and high-power UPOE capabilities in a compact 1RU platform. Equipped with 24 Gigabit Ethernet Cisco UPOE ports and 800W PoE power budget, it efficiently powers wireless access points, IP phones, surveillance systems, and smart IoT devices.
  • Powered by Cisco IP Base software, the switch delivers advanced Layer 3 functionality, intelligent traffic management, VLAN segmentation, and enhanced security features for enterprise and campus networks. With integrated wireless controller capability supporting up to 100 APs and 2,000 wireless clients per switch stack, it simplifies wireless network management and scalability.
  • The StackWise-480 architecture enables stacking of up to nine switches with 480 Gbps stack bandwidth, ensuring operational flexibility and high availability. Ideal for Singapore businesses, educational institutions, hospitality environments, and smart office deployments, the WS-C3850-24UW-S provides future-ready networking performance with enterprise reliability.

USE CASES

  • Power IP phones, surveillance cameras, IoT devices, and wireless access points using Cisco UPOE technology.
  • Ideal for schools, universities, and training centers requiring scalable wired and wireless connectivity.
  • Supports guest WiFi, POS systems, security systems, and business-critical communications.
  • Provides centralized network control, scalable stacking, and reliable Layer 3 connectivity for growing businesses.

KEY FEATURES

  • Integrated wireless controller with 5 AP license
  • 800W available UPOE power budget
  • 92 Gbps switching capacity
  • Cisco StackWise-480 technology
  • Supports stacking of up to 9 switches
  • Supports up to 100 wireless APs
  • Supports up to 2,000 wireless clients
  • Modular uplink support for flexible expansion
  • Centralized wired and wireless policy management
  • TECHNICAL SPECIFICATIONS

  • Brand: Cisco
  • Model: WS-C3850-24UW-S
  • Product Series: Catalyst 3850 Series
  • Product Type: Managed Enterprise Switch
  • Feature Set: IP Base
  • Ports: 24 x 10/100/1000 Cisco UPOE Ports
  • PoE Standard: Cisco Universal Power over Ethernet (UPOE)
  • Available PoE Power: 800W
  • Default Power Supply: 1100W AC
  • Stack Bandwidth: 480 Gbps
  • RAM: 4 GB
  • Flash Memory: 2 GB
  • Integrated AP License: 5 AP License Included
  • Supported Uplink Modules: C3850-NM-4-1G, C3850-NM-2-10G
  • Layer Support: Layer 2 and Layer 3
  • Management Features: Centralized Wired & Wireless Management
  • Security Features: VLAN, ACL, Secure Network Access
  • Dimensions: 4.45 cm x 44.5 cm x 48.8 cm
  • Deployment Type: Enterprise, Campus, SMB, Hospitality
