Home Networking Servers & Storage Rack Servers Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver

Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver
Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver
Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver
Previous
  1. Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver
  2. Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver
  3. Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver
Next

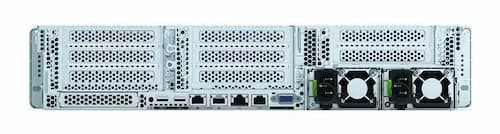

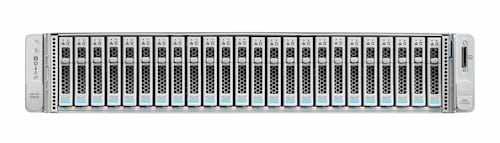

Cisco UCS C240 M7 2RU Rack Server | Support for Cisco UCS VIC 15000 Series Adapters | 24-Gbps Modular | Silver

Brand:
Cisco

Specifications

   Product overview
  • The Cisco UCS C240 M7 Rack Server is well-suited for a wide range of storage and I/O-intensive applications such as big data analytics, databases, collaboration, virtualization, consolidation, and high-performance computing in its two-socket, 2RU form factor.
  • The Cisco UCS C240 M7 Rack Server extends the capabilities of the Cisco UCS rack server portfolio. It incorporates the 4th or 5th Gen Intel® Xeon® Scalable Processors with 60 percent more cores per socket advanced features like Intel Advanced Matrix Extensions (AMX), Data Streaming Accelerator (DSA), In-Memory Analytics Accelerator (IAA), and QuickAssist Technology (QAT), many applications will see significant performance improvements.
  • You can deploy the Cisco UCS C-Series rack servers as standalone servers or as part of the Cisco Unified Computing System™ managed by Cisco Intersight™ or Cisco UCS Manager1 to take advantage of Cisco® standards-based unified computing innovations that can help reduce your Total Cost of Ownership (TCO) and increase your business agility.
  • The Cisco UCS C240 M7 Rack Server brings many new innovations to the UCS rack server portfolio. With the introduction of PCIe Gen 5.0 expansion slots for high-speed I/O, a DDR5 memory bus, and expanded storage capabilities, the server delivers significant performance and efficiency gains that will improve your application performance.
   Features:
  • Supports up to two 4thor 5th Gen Intel Xeon Scalable CPU, with up to 64 cores per socket
  • Up to 32 DDR5 DIMMs for up to 8 TB of capacity using 256 GB DIMMs (16 DIMMs per socket)
  • Up to 5600 MT/s DDR5 memory plus other speeds depending on the CPU installed
  • Up to 8 PCIe 4.0 slots or up to 4 PCIe 5.0 slots, plus a hybrid modular LAN on motherboard (mLOM) /OCP 3.0 slot
  • Support for Cisco UCS VIC 15000 Series adapters as well as third-party options
  • Up to 28 hot-swappable Small-Form-Factor (SFF) SAS/SATA or NVMe drives (with up to 8 direct-attach NVMe drives)
  • New tri-mode RAID controller supports SAS4 plus NVMe hardware RAID
  • Option for 28 NVMe drives at PCIe Gen4 x2 each
   M.2 boot options:
  • Up to two 960GB SATA M.2 drives with hardware RAID, or
  • Up to two 960GB NVMe M.2 drives with NVMe hardware RAID
  • Up to eight GPUs supported
   Modular LOM / OCP 3.0:
  • One dedicated PCIe Gen4x16 slot that can be used to add an mLOM or OCP 3.0 card for additional rear-panel connectivity.
  • mLOM slot that can be used to install a Cisco UCS Virtual Interface Card (VIC) without consuming a PCIe slot, supporting quad port 10/25/50 Gbps or dual port 40/100/200 Gbps network connectivity
  • OCP 3.0 slot features full out-of-band management for select adapters
   High performance for data-intensive applications
  • The Cisco UCS C240 M7 Rack Server is well suited for a wide range of enterprise workloads, including:
  • Big data and analytics
  • Collaboration
  • Small and medium-sized business databases
  • Virtualization and consolidation
  • Storage servers
  • High-performance appliances
   Cisco IMC (Integrated Management Controller):
  • Redfish Version 1.13.0 (2021.1 schema0)
  • Intelligent Platform Management Interface (IPMI) v2.0
  • Simple Network Management Protocol (SNMP) v2 and v3
  • Syslog
  • Simple Mail Transfer Protocol (SMTP)
  • Key Management Interoperability Protocol (KMIP)
  • cKVM (all-new Cisco KVM)
  • Command-Line Interface (CLI)
  • XML API
   Specifications:
  • Form factor: 2RU rack server
  • Processors: Up to 2x 5th Gen Intel Xeon Scalable processors (1 or 2) or Up to 2x 4th Gen Intel Xeon Scalable processors (1 or 2)
  • Memory: 32 DDR5-5600 DIMM slots (16 DIMMS per CPU): 16, 32, 48, 64, 96, 128, 256GB at up to 5600 MT/s for up to 8TB of memory with 5th Gen Intel Xeon Scalable processors or 32 DDR5-4800 DIMM slots (16 DIMMS per CPU): 16, 32, 64, 128, 256GB at up to 4800 MT/s for up to 8TB of memory with 4th Gen Intel Xeon Scalable processors
  • PCIe expansion: Up to 8 PCIe 4.0 slots or up to 4 PCIe 5.0 slots plus 1 dedicated 24-Gbps RAID controller slot and 1 dedicated mLOM slot
   RAID controllers:
   Internal controllers:
  • 24-Gbps modular tri-mode controller supports SAS 4 or NVMe hardware RAID
  • Cisco 12-Gbps modular RAID controller (PCIe 4.0) with 4-GB Flash-Backed Write Cache (FBWC), or
  • Cisco 12-Gbps modular SAS Host Bus Adapter (HBA)
  • External controller: Cisco 12-Gbps 9500-8e SAS HBA
   Internal storage
   Backplane options:
  • Up to 28 x 2.5-inch SAS and SATA HDDs/ SSDs and NVMe SSDs (up to 8 NVMe direct attach)
  • Up to 28 x 2.5-inch NVMe PCIe SSDs (all direct-attach Gen4 x2)
   mLOM/OCP 3.0:
  • One dedicated socket (x16 PCIe lane) that can be used to add an mLOM or OCP 3.0 card for additional rear-panel connectivity.
  • mLOM slot can flexibly accommodate 10/25/50 and 40/100/200 100-Gbps Cisco VIC adapters.
  • OCP 3.0 slot features full out-of-band manageability that supports Intel X710 OCP Dual 10GBase-T via mLOM interposer.





Features

Brand:
Cisco
Color:
Silver
Conditions:
New
Warranty:
3 Years
