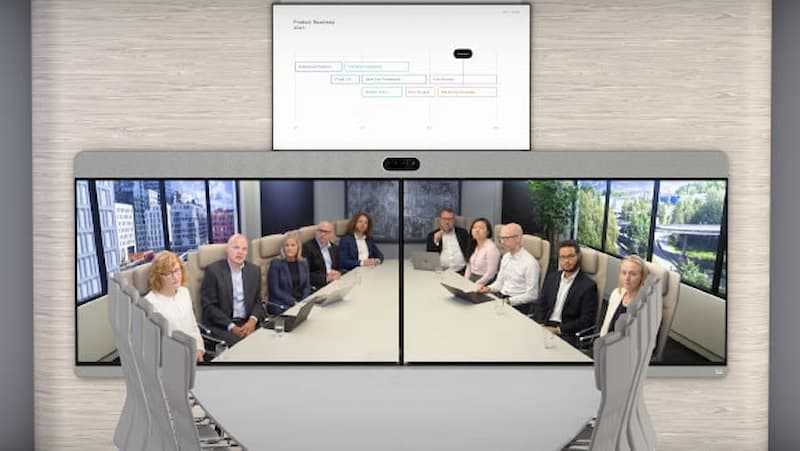

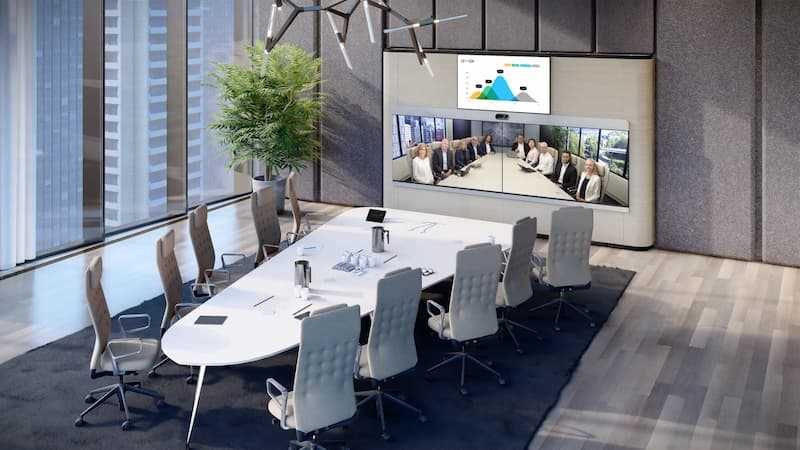

Cisco Room Panorama Video Conferencing Kit – Optimal Hybrid Workspace Solution in Singapore

Monitor

Printer and Scanner

Printer Accessories

Computer Peripherals

Mounts, Stands & Racks

Desktop

Workstations

Mobiles & Tablets

Adapters & Cables

Services & Supports

Barcode Scanners & Mobile Computers

Security Software

MTP/MPO Fiber Cables

MTP/MPO Cables Custom Hot

Fiber Patch Cables

Specialty Fiber Cables

Armored Cables Hot

Industrial Cables Hot

High Density Cables

FTTA Cables

Multifiber Cables

Mode Conditioning Cables

PM Cables

Fiber Pigtails

12 Fibers Pigtails Hot

Simplex Pigtails Hot

Pigtails Custom

Fiber Optic Cleaners

Pen Cleaners Hot

Sticks

Reel Type Cleaners

Accessories

Fiber Adapters Hot

PLC Splitters Hot

Fiber Attenuators Hot

Cameras & Surveillance

Digital Cameras

Film Cameras

IP Camera - Wifi Spy Camera

Explosion Protected Camera

Network Antennas

Networking Cards

Hardware Firewalls

Wireless

License

Accessories

Indoor Access Points

Outdoor Access Points

Wireless Controllers

Airware Cloud

Wi-Fi Routers

Network Switches

License

Network Switch Accessories

Switch Modules & Line Cards

Wired Routers

Gateways/controllers

Media Converters, Extenders

Copper to Fiber Media Converters Hot

Media Converter Chassis

PoE Extenders

Modems

PoE Adapters

Smart Power Socket

Repeater

Wireless Adapter

USB Hubs

Sensor

wireless routers

License

Network Adapter

Mellanox NICsHot

InfiniBand Adapters

QLogic FC HBAs

Intel%AE/Intel Based NICsHot

Mobile Wi-Fi Hotspots

Transceiver

Networking Accessories

Network Software Licenses

Network Audio

Network Speaker

Satellite Radios

Servers & Storage

Storage Array Modules

Power

UPS Systems

Auto Transfer SwitchNew

Hospital-Grade Power Cords

Router, Security, NPB

Routers

Firewalls

Network Packet Brokers

Fiber TAPs

Conferencing, Phones

Wireless & Access

50G SFP56 for 5G Wireless

25G SFP28 for 5G Wireless

10G SFP+ for 4G Wireless

GPON Hot

XGSPON Ho

XGPON & XGPON Combo New

EPON & 10G EPON New

Wireless & Access Custom Hot

XGSPON Combo

100/200/400/800G Modules

Industrial 100G QSFP28

Converter/Fibre Channel

100/200/400/800G Custom

10/25/40G Modules

10G CWDM/DWDM SFP+ Hot

Converter/Fibre Channel

10/25/40G Custom

1/2/4G Modules

Optical Transmission

10G CWDM/DWDM SFP+ Hot

25G CWDM/DWDM SFP28

100G DWDM QSFP28

1G CWDM/DWDM SFP

Coherent 200/400G DWDM Hot

Optical Transmission Custom

Data Center

Intel AE/Intel Based NICs Hot

DAC/AOC/AEC Cables

Others

10G XFP/X2/XENPAK Hot

Accessories

Fiber Optic Panels

LC Fiber Optic Panels

SC Fiber Optic Panels

ST Fiber Optic Panels

MTP/MPO Fiber Optic Panels

MDC Fiber Optic Panels

Multimedia Copper/Fiber Panels

Fiber Optic Cassettes

MTP/LC/SC/MDC Cassettes Hot

MTP Conversion Cassettes

MTP Mesh Cassettes

LC Splice Cassettes

TAP Cassettes

Fiber Optic Enclosures

Rack Mount Hot

Wall Mount

Accessories

Cable Management

Label Printers & Accessories

Racks & Cabinets

Enterprise Switches

1/2.5G Enterprise SwitchesHot

10G Enterprise SwitchesHot

25G Enterprise Switches

40G Enterprise Switches

100G Enterprise Switches

Modular Enterprise Switches

Accessories

PoE+ Switches

Data Center Switches

10G Data Center SwitchesHot

25G Data Center SwitchesHot

40G Data Center SwitchesHot

100G Data Center SwitchesHot

400G Data Center Switches

Modular Data Center Switches

InfiniBand Switches

Accessories

Small Business

Industrial Ethernet Switches

1G Industrial Switches Hot

2.5G Industrial Switches

10G Industrial Switches

Accessories

Router, Security, NPB

Routers

Firewalls

Network Packet Brokers

Cooling Solutions

Fiber Testers

Fiber Optic Tools

Fiber Optic Cleaners

Pen Cleaners Hot

Sticks&Wipes

Reel Type Cleaners

Copper Tools

Network Tool Kits Hot

Punch Down Tools

Cable Strippers Hot

Copper Testers

Cable Testers Hot

Cable Qualifiers Hot

Cable Certifiers

Access Networks

FMT Series Hot

M6200 Series Hot

MS8100 Series

Data Center Interconnect

PON Networks

GPON & EPON OLT Hot

GPON & EPON ONT/ONU Hot

ODN

PON Transceivers

Passive Components

PLC Splitters Hot

Fiber Attenuators Hot

FWDM Filters

xWDM/xPON

Splice Closures

Transceivers

Open Line System

Optical Amplifiers Hot

Dispersion Compensation

Fiber Monitoring

Optical Protection

DWDM Open Line System

Chassis & Accessories

Mux Demux & OADM

DWDM Mux Demux Hot

CWDM Mux Demux Hot

DWDM/CWDM OADM

Custom Mux Demux & OADM

Chassis & Accessories

Transponders & Muxponders

1G/10G/25G Transponder

100G/200G/400G Transponder

10G/200G/400G Muxponder

Chassis & Accessories

Specifications

Product Details:

100% brand new from factory and high quality
Economical Price
Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
1 Year Warranty
Brand: Cisco

Specification:
Software Compatibility:
Cisco Collaboration Endpoint Software Version 9.12 or later, or RoomOS

Default components in Cisco Room Panorama:
Cisco Codec Pro for Room Panorama
Cisco Quad Camera
2x 85-inch main monitors
1x 65-inch presentation display
12x loudspeakers
4x bass units
Cisco Natural Audio Module IV (amplifier)
Cisco Room Navigator control unit
Wall structure (optional wall finish)
Cisco Table Microphone Pro array (3-element)
2x Cisco Multi-head cable 9 meter (HDMI – HDMI, USB-C, Mini DP), LAN cable, and power cable

Displays:
Size: 85-inch VA-LCD Neo QLED display, direct LED BLU (mini LED)
Native Resolution: 7680 x 4320 (16:9), 8K UHD
Contrast ratio: Typical 1200:1
Viewing angle: +/- 89 degrees
Response time: 6 ms
Brightness: 500 cd/m2

Presentation screen:
Samsung LH65QMREBCCXEN
65-inch VA-LCD display, edge LED
Resolution: 3840 x 2160 (16:9), 4K UHD
Contrast ratio: Typical 4000:1
Viewing angle: +/- 89 degrees
Response time: Typical 8 ms
Brightness: 300 cd/m2

Optional hardware components:
Additional Table Microphones

Bandwidth:
Up to 16 Mbps

Firewall Traversal:
Cisco Expressway technology
H.460.18, H.460.19 firewall traversal

Video Standards:
H.264, H.265, H.263 for TANDBERG ™ MXP interop only (check admin guide)

Video Inputs:
Two HDMI inputs support formats up to maximum 1080p60 (in use)
Three HDMI inputs support formats up to maximum UHD (3840 x 2160) @ 30 fps including HD1080p60
One 3G-SDI/HD-SDI input supports formats up to maximum 1080p60
Extended Display Identification Data (EDID)
Consumer Electronics Control (CEC) 2.0

Video Outputs:
Two HDMI outputs support formats up to 3840 x 2160 @ 60 fps (4Kp60) (in use for main screens)
One HDMI output supports formats up to 3840 x 2160 @ 30 fps (4Kp30) (in use for presentation screen)
Consumer Electronics Control (CEC) 2.0

Encode And Decode:
Video stream: Full HD 1080p60
Content stream: 4K 2160p15

Audio Standards:
G.711, G.722, G.722.1, G.729AB, 64 kbps, and 128 kbps MPEG4 AAC-LD mono and stereo, OPUS

Audio Features:
High-quality 45-20.000Hz
Eight separate acoustic echo cancellers
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization
Full-range multichannel and bass speakers

Audio inputs:
Eight microphones, 48V phantom powered, Euro block connector, each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level
Three HDMI, digital: Stereo PC/DVD input

Audio outputs (external):
Six balanced line level outputs, Euro block connector
Three HDMI outputs (in use for embedded screens)

Audio system:
Amplifier power output rating (per channel): 25W @ 8Ohm or 50W @ 4Ohm
Amplifier channels: 16

Speaker tracking:
8-element microphone array for accurate speaker tracking

Dual stream:
H.239 (H.323) dual stream
Binary Floor Control Protocol (BFCP) (SIP) dual stream
Supports resolutions up to 3840 x 2160p15 (4Kp15) and 1080p60

Wireless sharing:
Webex client (up to 3840 x 2160p7.5)
Cisco Intelligent Proximity client (up to 1920 x 1080p5)
Miracast (1920 x 1080 at 60 fps) – Not available on non-radio version
Apple AirPlay wireless sharing – Bonjour service discovery only on non-radio version. Screen mirroring up to 1920 x 1080 at 60 fps, Extended desktop (Mac only) - up to 1920 x 1080 at 60 fps, Video streaming - up to 3840 x 2160 at 30 fps

Protocols:
H.323
SIP
Webex
WebRTC

Embedded encryption:
H.323 and SIP point to point
Standards-based: H.235 v3 and Advanced Encryption Standard (AES-128 or 256)
Automatic key generation and exchange

IP network features:
DNS lookup for service configuration
Differentiated services (Quality of Service [QoS])
IP-adaptive bandwidth management (including flow control)
Automatic gatekeeper discovery
Dynamic playout and lip-sync buffering
H.245 Dual-Tone Multi-frequency (DTMF) tones in H.323
DTMF tones in SIP, RFC 4733
Date and time support using Network Time Protocol (NTP)
Packet loss-based downspeeding
Uniform Resource Identifier (URI) dialing
TCP/IP
Dynamic Host Configuration Protocol (DHCP)
802.1X network authentication
802.1Q virtual LAN
802.1p (QoS and Class of Service [CoS])
Cisco Media Assure and ClearPath

Call control:
Cisco Collaboration Cloud/Webex
Native registration with Cisco Unified Communications Manager (UCM)
Requires UCM Version 10.5.2 or later with device pack for Room Panorama
Native registration with Cisco Video Communication Server (VCS)
Panorama Video not supported on H323

Cisco TelePresence Management Suite (TMS):
Support for Room Panorama beginning with version TMS 15.11

IPv6 Network Support:
Single-call stack support for both H.323 and SIP
Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
Support for both static and automatic IP configuration, stateless address auto configuration, and DHCPv6

Security Features:
Secure management using HTTPS and SSH protocols
End-to-end encryption for calls and meetings on Webex
Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
WPA3TM and WPA3-Enterprise with CCMP128 Wi-Fi ® security
Password protection to access administration (Room Navigator)
Network settings protection

Certificate management:
Certificate Authority Proxy Function (CAPF) support for additional security
Manufacturer-Installed Certificates (MIC)
Locally Significant Certificates (LSC)
X.509 digital certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported

Network interfaces codec medium:
One Ethernet (RJ-45) 10/100/1000 for LAN
Two Ethernet (RJ-45) 10/100/1000 for direct pairing with camera
Two Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE)
One dedicated for direct pairing with the Webex Room Navigator
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz / 5 GHz for LAN
2x2 Multiple Input and Multiple Output (MIMO)

Other Interfaces:
2x USB A port, USB-B, uUSB, factory reset pinhole

Power:
Autosensing power supply:
100-240 VAC, 50/60 Hz

Average Power Consumption:
100V 60Hz, 11.73A / 1165W
240V 50Hz, 5.07A / 1133W
Power consumption under normal operating conditions

Operating temperature and Humidity:
20% to 90% Relative Humidity (RH)
Maximum operating altitude: 3000 meters (9842 ft.)
