Home Networking Cisco NXN-V5P-8X-9GB Nexus 2-Port QSFP28 SmartNIC+ - High Performance

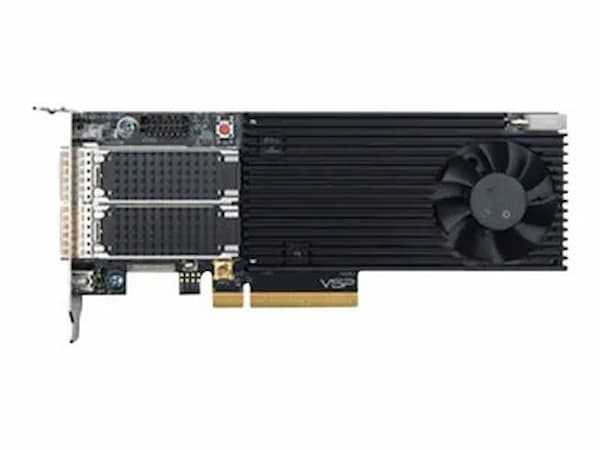

Cisco NXN-V5P-8X-9GB Nexus 2-Port QSFP28 SmartNIC+ - High Performance


Brand:

Specifications

      Product details:
  • 100% Brand New from Factory and High Quality
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery)
  • 3 Years Warranty
  • Brand: Cisco
  • Model: NXN-V5P-8X-9GB
      Specifications:
  • 16nm Xilinx Virtex UltraScale+ FPGA:
  • V9P XCVU9P-2, V9P-3 XCVU9P-3
  • 2.5M System Logic Cells, 2.3M CLBs
  • 2Mb total block RAM
  • 270Mb UltraRAM
  • 32x 32.75Gb/s I/O transceivers (16 connected to QSFP-DDs, 16 connected to PCIe)
      DDR4 DRAM:
  • 9GBytes
  • 72-bit interface, up to 2666MHz
      Oscillators:
  • 161MHz crystal
  • 10MHz temperature compensated crystal
  • 10MHz – 750Hz programmable (I2C) crystal
      Input/output:
  • PPS in/out via MCX connector, 3.3V CMOS, selectable 50ohm termination
  • 8x 1.8V CMOS GPIO via header
  • 2x bi-color port LEDs
  • 12V external supply (GPU adapter) for >75W designs
      Programming/debugging:
  • Software-based PCIe flash programming utility
  • USB to JTAG port
  • JTAG header onboard (auto select)
  • 1Gbit onboard flash

Features

Brand:
Cisco
Conditions:
New
Warranty:
3 Years
